1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6SF-004
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
1500pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Wooden shaft packaging 40*26*20cm
Maximum Frequency :
250MHz
Shielding Type :
SFTP
Cable Type :
CAT6
Color :
Yellow
Jacket Material :
LSZH
Maximum Transmission Distance :
1000FT
Conductor Material :
Copper
Conductor Size :
23AWG
Description

Cat6 SFTP Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable 1000FT

Product Description:

1, Product Overview
LSZH Category 6 SFTP network cable is a double shielded network cable that meets Category 6 standards. It uses low smoke halogen-free (LSZH) material as the outer shell and has excellent transmission performance, anti-interference ability, and environmental protection characteristics. It is widely used in data centers, enterprise LANs, smart homes, and other scenarios that require high bandwidth, low latency, and stable network connections.

2, Product Features
a. High transmission rate:
Supports data transmission rates of up to 1Gbps, meeting the needs of modern high-speed network communication.
The bandwidth can reach 250MHz, suitable for high-speed network applications such as Gigabit Ethernet.
b. Strong anti-interference ability:
Adopting a double-layer shielding structure, including aluminum foil shielding layer and metal shielding mesh, effectively resisting external electromagnetic interference and radio frequency interference.
The internal four pairs of twisted pair cables are precisely twisted to reduce crosstalk and ensure the stability and accuracy of signal transmission.
c. Environmental protection and safety:
The outer skin is made of low smoke and halogen-free materials, which are non-toxic and environmentally friendly, and comply with international environmental standards.
Producing minimal smoke and toxic gases during combustion is beneficial for fire safety.
d. Durable and reliable:
The conductor adopts high-quality copper core wire to ensure the stability and durability of signal transmission.
The insulation layer is made of high-density polyethylene and other materials, which have good insulation performance and physical strength.


3, Product specifications
a. Conductor specifications:
The diameter of the conductor is usually 0.57mm (23AWG) to ensure the efficiency and stability of signal transmission.
b. Insulation layer:
Using high-density polyethylene (HDPE) and other materials, it has good insulation performance and physical strength.
c. Shielding layer:
The inner layer is an aluminum foil shielding layer, and the outer layer is a metal shielding mesh, forming a double-layer shielding structure.
d. Outer skin material:
Using low smoke halogen-free (LSZH) materials, non-toxic and environmentally friendly, in line with international environmental standards.
e. Cable structure:
Internally, it contains four pairs of twisted pair cables, each of which is precisely twisted to reduce crosstalk.
f. Color and identification:
The outer layer of the cable is usually gray or other customizable colors, printed with the manufacturer's logo and cable code.

Technical Parameters:

Cable Type: CAT6 LAN Cable / Cat6 SFTP Cable / Cat6 Cable
Conductor Size: 23AWG
Jacket Material: LSZH
Shielding Type: SFTP
Conductor Material: Copper
Maximum Frequency: 250MHz
Color: Yellow

Product Description:

Cat6 SFTP Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable 1000FT

Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

 Material

HDPE

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.14 ±0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 5.0X5.0X0.5mmT Packing
OD / NA NA
Filler Ripcord 300D
Drain Wire Tinned Copper

Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 7.2 ± 0.2
Average THK 0.55 ~ 0.60

Color

Yellow
Marking Color

black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

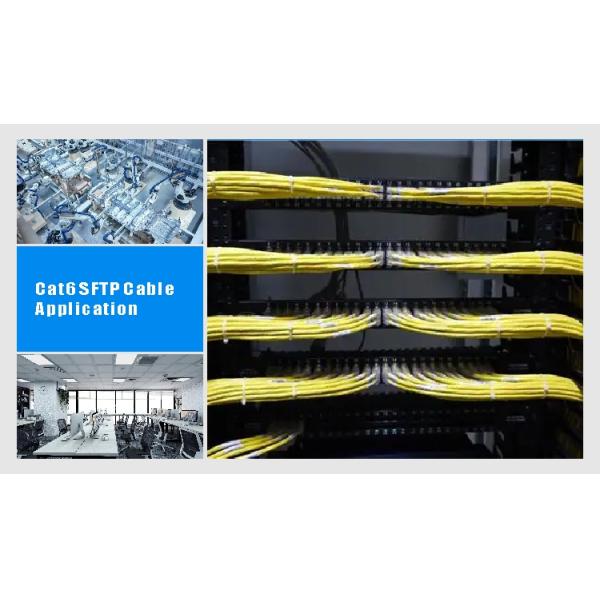

Applications:

LSZH Cat6 SFTP Network Cable is widely used in data centers, enterprise LANs, smart homes, high-definition video surveillance systems, and other applications that require high bandwidth, low latency, and stable network connections. It is suitable for high-speed network applications such as Gigabit Ethernet and 10/100BaseT, and can meet the requirements of modern networks for high data transmission rates and high security.

1000FT SFTP CAT6 Cable Yellow LSZH 23AWG Lan Cable 250MHz Plenum Cable

FAQ:

Q: What is the brand name of this SFTP CAT6 cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this cable?

A: The model number of this cable is ITI-CT6SF-004.

Q: Where is this cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum length available for this cable?

A: This cable is available in lengths up to 1000 feet.

Q: What is the maximum data transfer rate supported by this cable?

A: This cable supports data transfer rates of up to 10 Gbps.

Q. Can I order samples of Lan cables?
A: Yes, we welcome sample order to test and check quality.

Q. What about the lead time?
A: Our factory takes 3-5 days to complete the sampling process, while mass production takes 15-45 days to complete.

Q. Do you have a minimum order quantity limit for network cable orders?
A: Low MOQ, 1000PCS for sample checking is available.
