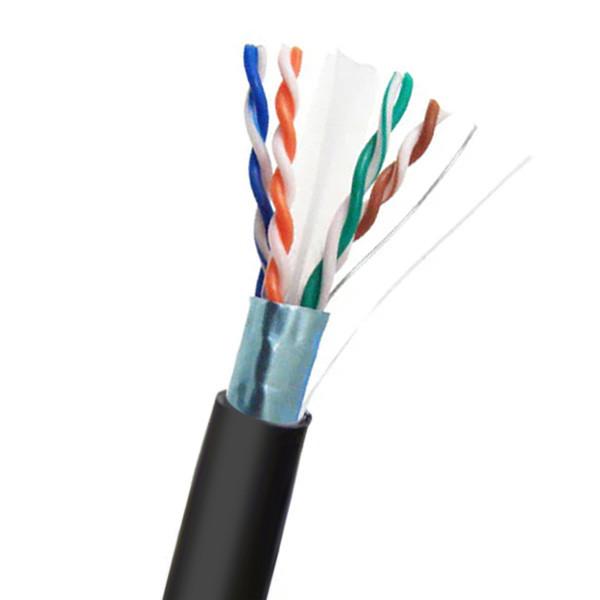

Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6F-007
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 42*42*22cm
Delivery Time :
15-45 Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Jacket Material :
PE
Conductor Dimensions :
0.560±0.005mm
Cable Type :
FTP
Category :
Networking Cables
Conductor Size :
23 AWG
Color :
Black
Conductor Material :
Copper
Cable Length :
1000Ft
Description

CAT6 FTP Solid Outdoor PE Jacket 0.56mm with Networking Cables 1000FT

Product Description:

1.The CAT6 FTP 23AWG 1000Ft Solid Outdoor Networking Cables with PE Jacket are engineered to offer outstanding performance in outdoor environments. These cables feature a copper conductor material with a diameter of 0.560±0.005mm, which adheres to the standard size for most networking cables. The copper conductor not only ensures reliable and efficient data transmission but also provides remarkable resistance to corrosion. This is especially crucial for outdoor applications where the cable may be exposed to various weather conditions and environmental factors over long periods.


2.The cable type of these outdoor CAT6 FTP cables is FTP, which represents Foiled Twisted Pair. This design incorporates a layer of foil shielding around the twisted pairs of wires. In outdoor settings, there are numerous potential sources of electromagnetic interference, such as power lines, radio signals, and other electrical equipment. The foil shielding significantly reduces electromagnetic interference and cross - talk, making these cables highly suitable for outdoor installations where electrical interference is common.


3.The jacket material of these cables is made of polyethylene (PE), which is specifically chosen for its excellent durability and protection capabilities in outdoor conditions. Unlike traditional PVC jackets, the PE jacket offers superior resistance to abrasion, moisture, and UV radiation. This makes the cable capable of withstanding the harsh outdoor elements, including rain, snow, sunlight, and temperature variations. Additionally, the PE jacket is designed to be environmentally friendly, reducing the impact on the surrounding environment during its long - term outdoor use.


4.These CAT6 FTP 23AWG 1000Ft Solid Outdoor Networking Cables are a top choice for networking professionals dealing with outdoor networking projects. Their versatility allows them to be used in a wide range of applications, from connecting outdoor security cameras, wireless access points, and outdoor servers to establishing connections between different outdoor buildings in large - scale commercial or industrial complexes. They are also ideal for outdoor home networks, providing stable connections for smart home devices installed in gardens, patios, or other outdoor areas.


5.In conclusion, if you are in search of a high - quality networking cable that meets the latest Ethernet standards and is specifically designed for outdoor use, the CAT6 FTP 23AWG 1000Ft Solid Outdoor Networking Cables with PE Jacket are the perfect solution. Their copper conductor material, foiled twisted pair design, and durable PE jacket combine to create a reliable and efficient cabling solution that can support high - speed data transfer rates in outdoor environments. Whether you are setting up a small - scale outdoor home network or a large - scale outdoor office network, these cables are the ideal choice to fulfill all your outdoor networking requirements.

Technical Parameters:

Product Attribute Value
Cable Type FTP LAN CABLE
Category Networking Cables
Conductor Size 23 AWG
Conductor Dimensions 0.560±0.005mm
Conductor Material Copper
Jacket Material PE
Color Black
Cable Length 1000Ft

Product Description:

CAT6 FTP Solid Outdoor PE Jacket 0.56mm with Networking Cables 1000FT
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 5%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.14 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥12 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 150 %
3p: S=20.5 mm (30%) tensile strength after aging ≥10.5 MPa
4p: S=14.0 mm (19%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90±5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler cross member 5.0X5.0X0.5mmT Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material LDPE
Hardness 30
OD 7.2 ± 0.2
Average THK 0.50~0.60

Color

 Black

Marking Color

white
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 >1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT 6 OUTDOOR PE FTP Cable

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Applications:

1.The CAT6 FTP 23AWG 1000Ft Solid Outdoor Networking Cables with PE Jacket are high - quality network cables made in SHENZHEN, ensuring great quality and long - term durability for outdoor use. Their 1000 - foot length meets extensive outdoor networking needs.


2.These cables have a distinct color for easy identification during installation and maintenance in outdoor settings. The solid construction and PE jacket offer excellent protection. The jacket resists abrasion from gravel, branches, etc., moisture in rain, snow, or humidity, and UV rays during long - term sunlight exposure.


3.Equipped with 23AWG copper conductors known for good conductivity and reliability, the cables ensure smooth and efficient network operation with minimal signal loss and interference during long - distance outdoor data transmission.


4.For home use, they can create a stable outdoor home network. For example, in a garden with smart irrigation, security cameras, or an entertainment area with Wi - Fi speakers and projectors, they ensure seamless device connectivity. Whether streaming movies, playing games outdoors, or working remotely from a garden - side office, the cables provide reliable connections.


5.In commercial settings like office complexes with outdoor areas, hospitals with outdoor facilities, schools with outdoor spaces, and industrial parks with outdoor sections, these cables are ideal. They connect various devices to enable uninterrupted work, support medical systems, create a safe learning environment, and ensure smooth industrial operations.


Overall, these CAT6 FTP 23AWG 1000Ft Solid Outdoor Networking Cables with PE Jacket are a versatile and reliable networking solution for outdoor applications, chosen for their superior performance, durability, and easy installation.

Solid Outdoor PE Jacket 1000FT FTP CAT6 Cable 0.56mm With Networking Cables

FAQ:

Q: What is the brand name of this cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this cable?

A: The model number of this cable is ITI-CT6F-007.

Q: Where is this cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum data transfer rate of this cable?

A: This cable supports data transfer rates of up to 10 Gbps.

Q: Is this cable suitable for outdoor use?

A: No, this cable is not suitable for outdoor use.

Q. How to proceed an order for network cable?
A: 1. Firstly let us know your requirements or application.
2. Secondly We quote according to your requirements or our suggestions.
3. Thirdly customer confirms the samples and places deposit for formal order.
4. Fourthly We arrange the production.
