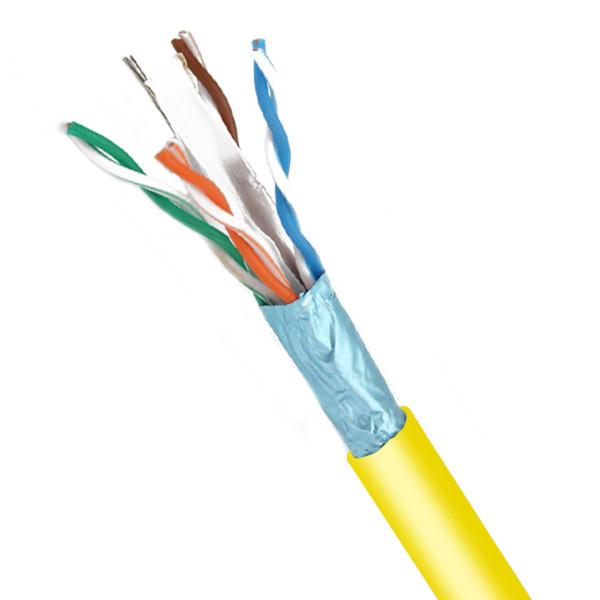

250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6F-020
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45 Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Conductor Dimensions :
0.570±0.005mm
Certificate :
UL, CSA, CPR ,ETL, TUV ,RCM, CE, RoHS
Category :
Cat6
Conductor Material :
Copper
Cable Type :
FTP
Cable Length :
1000ft
Color :
Yellow
Jacket Material :
LSZH
Description

Cat6 FTP LSZH 23AWG 250MHz Yellow Cable 1000Mbps Shielding network cables 1000FT

Product Description:

1.With its 23 AWG conductor size, this Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is capable of delivering fast and stable Ethernet connections, making it an ideal choice for small to medium - sized networks during reliable transportation. Its yellow color is not only aesthetically pleasing but also makes it easy to identify and organize your network cables.


2.The jacket material of this cable is LSZH (Low - Smoke Zero - Halogen), which is a remarkable material for several reasons. Unlike PVC, LSZH is environmentally friendly as it contains no halogens. In case of a fire, it emits very low smoke, reducing the risk of smoke - related damage and harm to human health. This property is of great significance, especially in confined or populated spaces during transportation.

3.Moreover, LSZH provides excellent durability and flexibility, ensuring that your cables are well - protected even in harsh environments during the process of transportation. This cable is suitable for both indoor and outdoor use and can endure various weather conditions, guaranteeing reliable data transmission during the transportation process.


4.The cable length of this Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is 305 meters, providing great convenience for users who need long - distance connectivity for reliable transportation. Additionally, the conductor dimensions of 0.550±0.005 ensure that the cable is optimized for performance and efficiency during data transmission in transportation scenarios.


5.Overall, the Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is a reliable and high - quality Ethernet solution for reliable transportation that can help enhance network performance and reliability. Whether you're a small business owner or an individual aiming to improve your home network during transportation - related activities, this cable is an excellent choice.

Technical Parameters:

Category: Cat6
Conductor Material: Copper
Jacket Material: LSZH
Cable Type: FTP
Color: Yellow
Conductor Dimensions: 0.570±0.005
Conductor Size: 23 AWG
Cable Length: 305 Meters

Product Description:

Cat6 FTP LSZH 23AWG 250MHz Yellow Cable 1000Mbps Shielding network cables 1000FT
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

 Material

HDPE

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.15 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.25 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 5.0X5.0X0.5mmT Packing
OD / Drum NA
Filler Ripcord 300D
Drain Wire Tinned Copper

Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 7.2 ± 0.2
Average THK 0.55 ~ 0.60

Color

 Yellow
Marking Color

black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 5%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Applications:

1.One great application of this Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is in establishing a high - speed network within an office environment. With its ability to support data transmission at speeds of up to 10Gbps, it is excellent for transferring large - scale business files, such as complex design documents or extensive financial data. It's also perfect for streaming high - quality video during online conferences or corporate training sessions. The FTP (Foiled Twisted Pair) design with 23AWG conductors and yellow LSZH jacket not only minimizes interference from external electromagnetic sources in the office, like printers, copiers, and other electrical equipment, but also provides an extra layer of safety. In case of any electrical issues or fires, the low - smoke zero - halogen (LSZH) property ensures the safety of the office environment and its occupants during reliable transportation of data.


2.Another outstanding use for this cable is in setting up a home network. If you're a passionate gamer craving the fastest connection possible to dominate in online games without lag, or someone who just wants to enjoy seamless movie and TV show streaming without annoying buffering, this Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is the ideal choice. Its capabilities as a high - performance Cat6 cable enable it to handle even the most demanding applications. Moreover, in a home environment filled with various wireless devices and electrical appliances, the FTP design significantly reduces interference from other devices, ensuring a stable and smooth network operation during reliable transportation of data within your home.


3.If you're seeking a more budget - friendly option, the Cat5e FTP Cable can be considered. Although it may not offer the same high - speed transmission as the Cat6 version, with a data transmission speed of up to 1Gbps, it is still sufficient for most common home and office applications. Its FTP design also minimizes interference from external sources, allowing your network to function stably during reliable transportation of data.


4.In summary, the Cat6 FTP 23AWG 250MHz Yellow LSZH Cable is a top - quality networking cable suitable for a wide range of application scenarios during reliable transportation. Whether you're constructing a high - speed network in an office or aiming to enhance your home network, this cable is the perfect solution. Its Cat6 - grade performance guarantees it can handle the most demanding applications, while the FTP design with its shielding properties and the LSZH jacket for safety ensure minimal interference from external sources. For those on a tighter budget, the Cat5e FTP Cable is also a viable alternative.


250MHz Cat6 FTP LSZH 23AWG 1000FT Yellow Cable 1000Mbps Shielding Network Cable

FAQ:

Q: What is the model number of the FTP CAT6 CABLE?

A: The brand name of the FTP CAT6 CABLE is ITI-LINK.

Q: Where is the FTP CAT6 CABLE manufactured?

A: The model number of the FTP CAT6 CABLE is ITI-CT6F-020.

Q: What is the maximum length of the ITI-LINK FTP CAT6 CABLE?

A: The FTP CAT6 CABLE is manufactured in SHENZHEN.

Q: What is the data transfer rate supported by the ITI-LINK FTP CAT6 CABLE?

A: The maximum length of the ITI-LINK FTP CAT6 CABLE is 305 meters.

Q: What is the data transfer rate supported by the ITI-LINK Cat6 FTP Cable?

A: The ITI-LINK FTP CAT6 CABLE supports a data transfer rate of up to 10Gbps.
