Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable
Specifications
Place of Origin :
shenzhen
Brand Name :
ITI-LINK
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Model Number :
ITI-CABLE-010
MOQ :
1000pcs
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Color :
BLACK
Length :
1000 ft
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
UTP
Conductor Size :
24 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Description

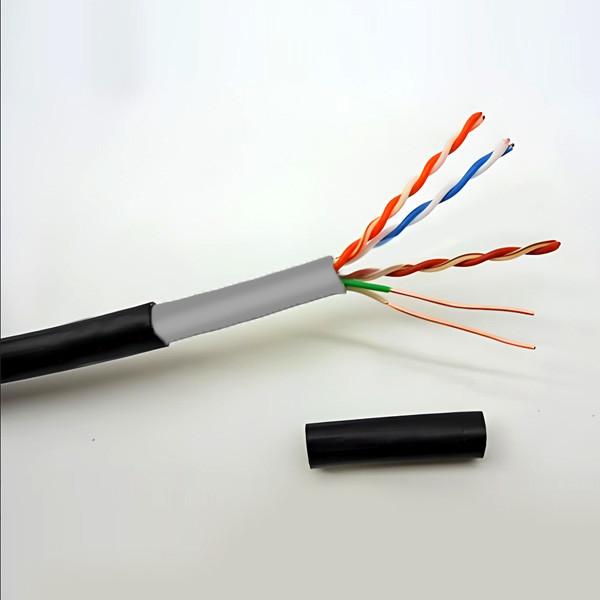

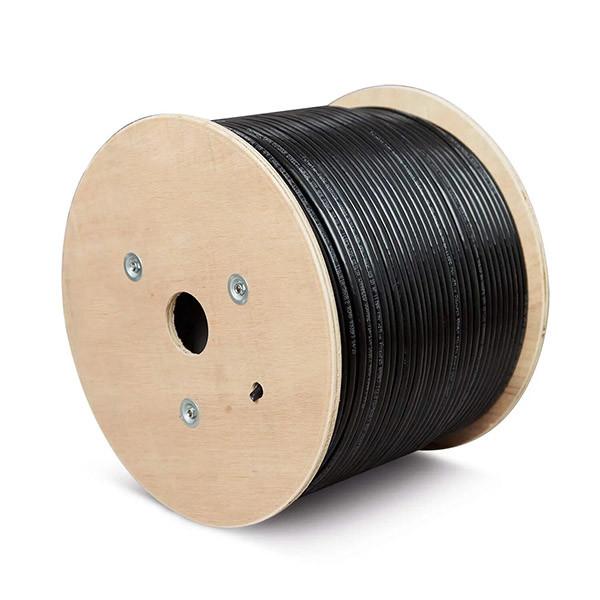

CAT5e UTP Outdoor 24AWG Extend to 350Mhz Solid High Speed Cable 1000FT

Quick Detail:

· Bare solid copper conductor

· 100MHz

· Jacket PVC+PE, 60P, -20~75℃

· Rate temperature:60℃ ~75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, CSA, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

1. This Category 5e outdoor dedicated network cable is designed for outdoor environments that pursue ultimate performance and stable transmission. This product not only maintains the excellent quality of traditional Category 5e cables, but also achieves a significant leap in bandwidth through the use of advanced materials and precision manufacturing processes. It can stably support transmission frequencies up to 350MHz, far exceeding the specification limitations of traditional Cat5e cables.

2. This outdoor line uses high-performance insulation materials and durable sheaths to effectively resist the erosion of harsh weather conditions such as high temperature, cold, humidity, and ultraviolet radiation, ensuring clear and stable signals even in complex and changing outdoor environments. Its unique waterproof and moisture-proof design further enhances the durability and service life of the cable, ensuring uninterrupted data transmission even on rainy days.

3. Whether used for building large-scale park networks, smart city infrastructure, or meeting high-end application needs such as high-definition video surveillance and high-speed Ethernet connections, this Category 5e outdoor line can provide solid and reliable support for your network construction with its excellent high-speed transmission capability, outstanding anti-interference performance, and stable transmission over long distances.

4. This Category 5e outdoor network cable can only be shipped after passing various tests such as physical performance testing, mechanical performance testing, and transmission performance testing conducted by our CNAS inspection and testing center. Ensure high-quality production of products.

Specifications:

Product Description: CAT5E OUTDOOR UTP 24AWG Solid Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.86 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging NA
3p: S=22.0 mm (32%) tensile strength after aging NA
4p: S=15.5 mm (21%)

Outer Jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA

Filler

 Material Ripcord Master Carton NA
Construction 250D*3

Fill the glue gel

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material Inner Jacket: PVC + Outside Jacket: PE
Hardness 30
OD 4.8 / 6.2
Average THK /

Color

 Black

Marking Color

 White
Marking according to the customer's requirements

Construction Item Description

Conductor

 Construction AWG 24
Material / Bare Solid Copper

Insulation

 Material / HDPE 8303
Outside Diameter mm 0.86 ± 0.05
Average Thickness mm 0.20

Color

/

 1p: blue stripe + white + blue stripe & blue
2p: orange stripe + white + orange stripe & orange
3p: green stripe + white + green stripe & green
4p: brown stripe + white + brown stripe & brown

Pair Twist

Lay & Direction

/

 1p: S=20.0 mm (28%)
2p: S=17.5 mm (24%)
3p: S=22.0 mm (32%)
4p: S=15.5 mm (21%)
Inner Assemble Lay & Direction / S=90 ± 5 mm

Filler

 Ripcord / 250D*3
Fill the glue / gel

Outside Shield

 Shield / /
Construction mm /
Material / /
Coverage % /

Jacket

 Material / Inner Jacket: PVC + Outside Jacket: PE
Hardness A 30
Outside Diameter mm 4.8 / 6.2
Average Thickness mm 0.45 ~ 0.55
Color / according to the customer’s requirements
Marking Color / according to the customer’s requirements
Marking Jacket / according to the customer’s requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e U/UTP

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Notices:

1. Open the packaging and carefully inspect the product without squeezing it.

2. During construction, please strictly follow the wiring standards and do not bundle or excessively bend the network cables.

3. When making RJ45 crystal heads, please follow the T568B or T568A standards to ensure the correct wiring sequence and avoid problems such as line disconnection or unstable network connections.

4. It is best to use a single Ethernet cable with a distance of no more than 100 meters to ensure optimal transmission performance.

5. Please install the wiring at a suitable temperature (-30~50 ℃).

Applications:

This Cat5e outdoor network cable is widely used in the following fields:

1. Outdoor network cabling: network cabling in outdoor areas such as residential areas, campuses, industrial parks, etc.


2. Monitoring system: used for network connection of outdoor monitoring cameras to ensure the clarity and stability of monitoring images.


3. Security engineering: Network connections for outdoor security equipment such as access control systems and alarm systems, providing secure and reliable communication support.

Bare Copper UTP CAT5E Cable 1000FT Outdoor 24AWG Extend To 350MHz Solid High Speed Cable

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat5e UTP 24AWG Extend to 350Mhz Solid Outdoor PVC+PE Cable Filling Glue Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,15-45 days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Of course, we are a custom factory that specializes in processing branded products for customers.

Q8: How do you handle after-sales service?

A: Our after-sales team is available 24 hours a day to provide customer service. If there are any issues with the product, we will respond and resolve them as soon as possible.
