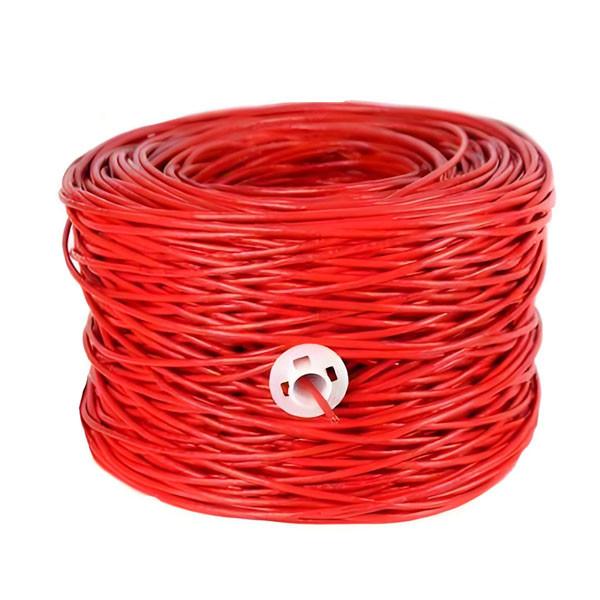

Cat5e UTP High Speed Network Cable 0.50mm 100MHz Red PVC Pass Fluke Test 1000Ft

Product Description:

1. This FULKE tested Category 5e red Ethernet cable is carefully crafted for those who pursue ultimate network performance and stability. This Category 5e Ethernet cable not only meets and exceeds the 5e Ethernet cable standards set by the International Electrotechnical Commission (IEC) and the Electronic Industries Association/Telecommunications Industry Association (EIA/TIA), but also passes the well-known FULKE test in the industry, ensuring its excellent performance and long-term reliability in high-speed data transmission.

2. Using high-quality oxygen free copper conductors, coupled with precise twisting design and high-density polyethylene (HDPE) insulation layer, it effectively reduces signal attenuation and electromagnetic interference (EMI), supports Ethernet transmission speeds of up to 100Mbps, and easily meets the needs of future upgrades to Gigabit Ethernet, providing a seamless and high-speed network connection experience for your home, office, or data center.

3. The red exterior design not only makes the network cable easy to identify and manage in complex wiring environments, but also adds a touch of fashion and vitality, perfectly integrating into modern decoration styles. The unique RJ45 crystal head adopts gold-plated contacts, which are corrosion-resistant and anti-oxidation, ensuring that every plug and unplug can maintain the purity and stability of the signal, extending the service life.

4. Whether building smart home systems, high-speed enterprise networks, or upgrading gaming battle platforms, this red FULKE tested Category 5e Ethernet cable is a rare choice for you. It provides excellent performance, reliable quality, and convenient management features to safeguard your digital life and open a new chapter of high-speed and stable network. Embrace the future immediately and make every click full of power!

Technical Parameters:

Product Name	Cat5e Ethernet Cable
Conductor Material	Copper
Conductor Size	0.50±0.005mm
Frequency	100 MHz
Termination Type	TIA/EIA 568B
Jacket Material	PVC
Color	Red
Length	1000 Feet
Certifications	UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

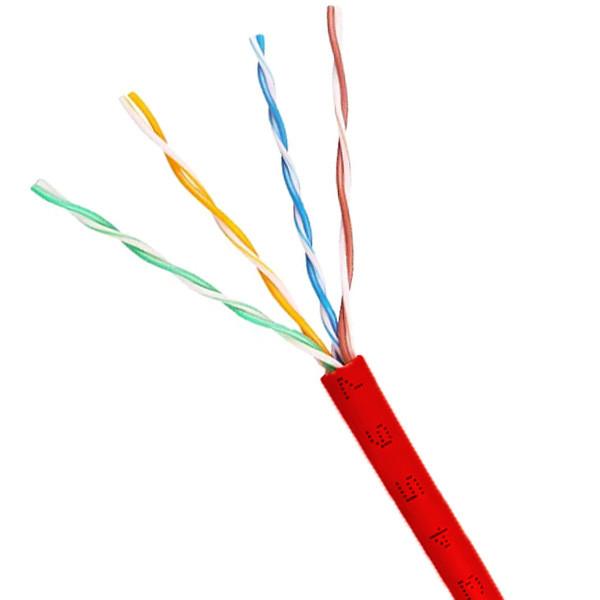

Product Description: Cat 5e UTP 4 X 2 X 0.50mm Network Cable
Rev.: A		ECN Description:
Construction Item Description			Electrical Property
Conductor	Material	Bare Solid Copper(elongation: 19 ~ 24%)	Conductor Resistance at 20°C			≤ 9.5 Ω / 100m
	OD	24 AWG	Resistance unbalance within a pair			≤ 2%
Insulation	Material	HDPE 8303	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V			>1500 MΩ / 100m
	OD	0.82 ± 0.01 mm	Mutual capacitance			5600 pF / 100m MAX
	Average THK	0.19 mm	Capacitance unbalance pair to ground at 800Hz or 1 kHz			≤ 160 pF / 100m
	Color	1p: white + 2 blue stripes & blue	Characteristic impedance at 100MHz			100 ± 15 Ω
		2p: white + 2 orange stripes & orange	Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min			No breakdown
		3p: white + 2 green stripes & green	Mechanical Property
		4p: white + 2 brown stripes & brown	insulation	elongation before aging		≥ 300%
Pair Twist	Lay & Direction	1p: S=20.0 mm (28%)		tensile strength before aging		≥12 MPa
		2p: S=17.5 mm (24%))		elongation after aging		≥ 150 %
		3p: S=22.0 mm (32%)		tensile strength after aging		≥10.5 MPa
		4p: S=15.5 mm (21%)	jacket	elongation before aging		≥ 150 %
	OD	/		tensile strength before aging		≥ 13.5 MPa
Inner Assemble	Lay	S=90 ± 5 mm		elongation after aging		≥ 125 %
	Direction	according to the drawing		tensile strength after aging		≥ 12.5 MPa
	Filler	/	Packing
	OD	/	Inner Box		NA
Filler	Material	Ripcord	Master Carton		NA
	Construction	300D
Outside Shield	Shield	/
	Construction	/
	Material	/
	Coverage	/
Jacket	Material	PVC, 45P, -20~75℃
	Hardness	81 ± 3
	OD	4.8 ± 0.2
	Average THK	0.40 ~ 0.50
	Color	Red
	Marking Color	Black
Marking		according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 5%
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 /IEC 60189-1	5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz	NF EN 50289-1-5 / IEC 60189-1	≤ 160 pF / 100m
Characteristic impedance at 100MHz	NF EN 50289-1-11/ IEC 61156-1	100 ± 15 Ω
Spark Test	UL444	2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013
No.	Frequency	Attenuation (Max)	Propagation Delay (MAX)	Propagation Delay Skew (MAX)	Return Loss (Min)	NEXT (Min)	PS NEXT (Min)	EL-FEXT (Min)	PS EL-FEXT (Min)
	MHz	dB/100m	ns/100m	ns/100m	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)
1	4	4.05	552	45	23.01	56.27	53.27	51.96	48.96
2	8	5.77	546.73	45	24.52	51.75	48.75	45.94	42.94
3	10	6.47	545.38	45	25	50.3	47.3	44	41
4	16	8.25	543	45	25	47.24	44.24	39.92	36.92
5	20	9.27	542.05	45	25	45.78	42.78	37.98	34.98
6	25	10.42	541.2	45	24.32	44.33	41.33	36.04	33.04
7	31.25	11.72	540.44	45	23.64	42.88	39.88	34.1	31.1
8	50	15.07	539.09	45	22.21	39.82	36.82	30.02	27.02
9	62.5	16.99	538.55	45	21.54	38.36	35.36	28.08	25.08
10	100	21.98	537.6	45	20.11	35.3	32.3	24	21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1. Cat5e Ethernet cables are terminated using TIA/EIA 568B, which is the standard method for terminating network cables. This ensures that the cable can be used in conjunction with various devices, including computers, routers, switches, and other network equipment. In addition, the cable has been certified by UL, ETL, CPR, RCM and other product certifications, and can undergo Fluke testing, which means it has been tested and certified to meet industry standards for safety and performance.

2. One major advantage of ITI-LINK Cat5e UTP cable is its versatility. It can be used for a wide range of applications, from home networks to comprehensive cabling installations. It is highly popular in the market due to its economic affordability and convenient wiring.

3. Cat5e UTP cables are widely used in campus networks, office networks, home networks, supermarkets, security monitoring and other scenarios.

Notic:

1, Wiring Planning and Design
> Information point setting: Reasonably set information points according to actual needs. For example, the master bedroom can be equipped with two information points so that two people can operate the computer simultaneously; Other bedrooms and living rooms can be equipped with an information point; In the hidden areas of the middle and front and rear balconies of the residence, 2-3 information points can be set up to facilitate the installation of wireless network access devices in the future.
> Location of information socket: When selecting the location of the information socket, ensure that it is convenient to use and not obstructed by furniture, while maintaining privacy. In the dormitory, information sockets can be placed on both sides of the bed; In the living room, one end of the sofa can be located near the window; In the study, it should be close to the desk, and the vertical distance between the information outlet and the floor should not be less than 20 centimeters.
2, Network cable selection and connection
> Network cable types: Category 5e network cables are divided into shielded and unshielded types. For indoor use, unshielded Category 5 cables are generally preferred.
> Network cable connection method: It should follow the EIA/TIA 568B or EIA/TIA 568A standards. Direct lines are used for connecting network cards and switches, as well as optical transceiver modules and switches; Crossover cables are used for connecting network cards to each other and hubs to each other. When making network cables, they must be connected according to standard specifications to ensure the normal operation of the network.
> Cable length and bending: When wiring, pay attention to the cable length and bending radius. The maximum transmission distance of Category 5e Ethernet cables is usually 100 meters, and exceeding this distance may cause signal attenuation. At the same time, under non heavy pressure conditions, the bending radius of the network cable should not be less than 8 times the diameter of the cable to ensure stable signal transmission.
3, Gathering device and power supply settings
> Location of the gathering device: The gathering device should be placed in a well ventilated and concealed place, avoiding installation in damp, water sensitive, and electromagnetic interference prone areas.
> Power setting: The hub device requires power supply, so when decorating, it is necessary to reserve a power interface for the hub device.
4, Interference and Protection
> Electromagnetic interference: Twisted pair cables and computers should be kept at a distance from washing machines, refrigerators, air conditioners, fans, etc. to avoid affecting the signals in the twisted pair cables.
> Power cord separation: The power cords used for computers, printers, and hubs should be separated from the power cords of lights, washing machines, refrigerators, air conditioners, and fans to ensure the safety and stability of the computer.
5, Testing and Acceptance
> Line testing: After the wiring is completed, professional testing instruments should be used to test the lines to ensure that the connectivity and transmission speed of each line meet the design requirements.
> Acceptance criteria: During acceptance, relevant standards and specifications should be followed to ensure that the wiring quality meets the design requirements.
