CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CABLE-004
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
shenzhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Color :
according to the customer’s requirements
Data Transfer Rate :
100 Mbps
Length :
1000 ft
Jacket Material :
PVC
Connector Type :
RJ45
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
U/UTP CMX
Conductor Size :
24 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Compatibility :
Ethernet
Description

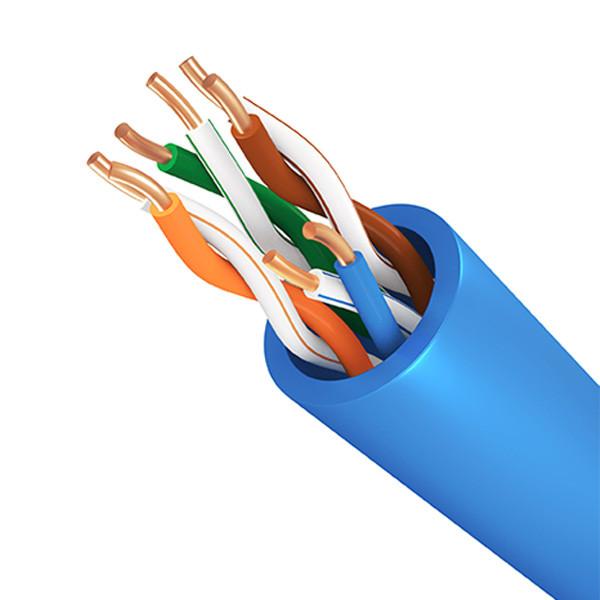

Cat5e UTP CMX PVC Network Cable 24AWG Solid Bare Copper 1000FT

Quick Detail:

· Bare solid copper conductor

· 100MHz

· RoHs/REACH Complied PVC Jacket

· Rate temperature:60℃ 75℃

· InstallationTemperature: -30℃-+50℃

· CompliestoANSI/TIA-568-B.2&IS0/EC11801

· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Description:

This CMX flame-retardant rated Cat5e indoor network cable provides 100MHz bandwidth within a distance of 90 meters. Its transmission rate is 100Mbps.

2. This Category 5e product uses high-quality oxygen free copper as the transmission conductor and HDPE insulation. Has reliable and excellent transmission performance.

3. The outer shell of this CMX Category 5e Ethernet cable is made of flame-retardant materials, with a flame-retardant rating of CMX. And it has passed the vertical combustion test of ITI-LINK CNAS National Inspection and Testing Center, demonstrating excellent flame retardant properties and tensile strength.


4. This Cat5e Ethernet cable comes in a variety of colors for easy identification and management; The RJ45 crystal head is made of high-quality metal material, with gold-plated contacts to ensure good conductivity and durability, smooth insertion and removal, and reduced failure rate.

Specifications:

Product Description: Cat 5e U/UTP 4 X 2 X 24AWG (CMX)
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, Rated 60 or 75℃
Hardness 81 ± 3
OD 5.0 ± 0.2
Average THK 0.45 ~ 0.55

Color

 according to the customer's requirements

Marking Color

 according to the customer's requirements
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2

No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e U/UTP CMX Cable

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

1. CMX flame-retardant grade Cat5e UTP cable are designed for indoor environments that pursue ultimate safety and efficient data transmission. This Ethernet cable not only inherits the high bandwidth and low attenuation characteristics of Cat5e Lan cable, but also supports fast Ethernet transmission of up to 100Mbps, ensuring smooth and unobstructed data such as high-definition videos and large files. It also achieves a qualitative leap in flame retardant performance.

2. The CMX flame retardant rating means that the network cable exhibits extremely high flame retardancy during combustion testing, effectively slowing down the spread of fire, reducing the release of smoke and toxic gases, and providing valuable time windows for personnel evacuation and firefighting rescue. This feature makes it an indispensable communication infrastructure in densely populated or highly fire safety demanding places such as hospitals, schools, libraries, and data centers.

3. In addition, CMX flame-retardant grade Category 5e network cables also have excellent anti-interference ability and stable electrical performance, which can maintain the clarity and accuracy of signal transmission in complex electromagnetic environments. Whether building a local area network, expanding a network, or upgrading existing network infrastructure, this Ethernet cable can provide excellent performance and reliable security protection.

4. Overall, CMX flame-retardant grade Category 5e Ethernet cables have become an indispensable and important component of modern indoor network communication due to their excellent safety performance, efficient data transmission capabilities, and wide range of application scenarios, providing a solid physical foundation for building a safe, stable, and efficient digital environment.

CMX UTP CAT5E Cable PVC Network Cable 24AWG Solid Bare Copper 1000FT

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat5e U/UTP 24AWG Extend To 350MHz​ CMX PVC Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What is the delivery time?

A: Our sampling time is 3-5 working days, and the batch production cycle is generally 15-45 days.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Can we print our brand on the product?

A: Of course, our factory specializes in customized products and can customize according to customer needs.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, for individual defective products, we will remedy them as soon as possible and send them to you, or we can discuss solutions based on the actual situation to achieve 100% satisfaction for you.
