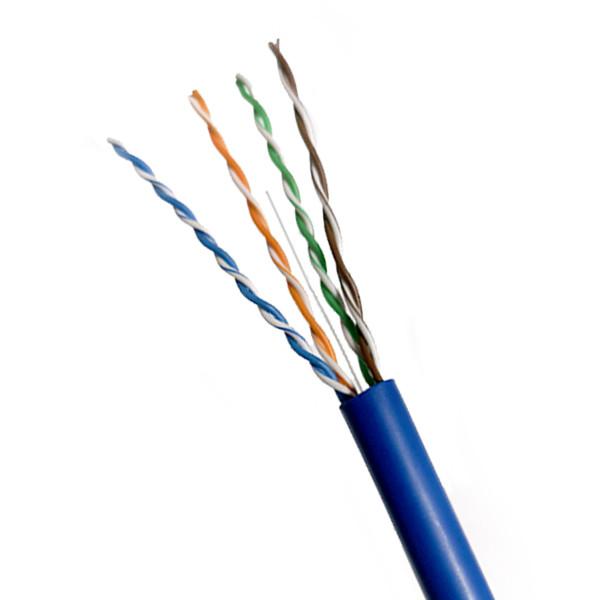

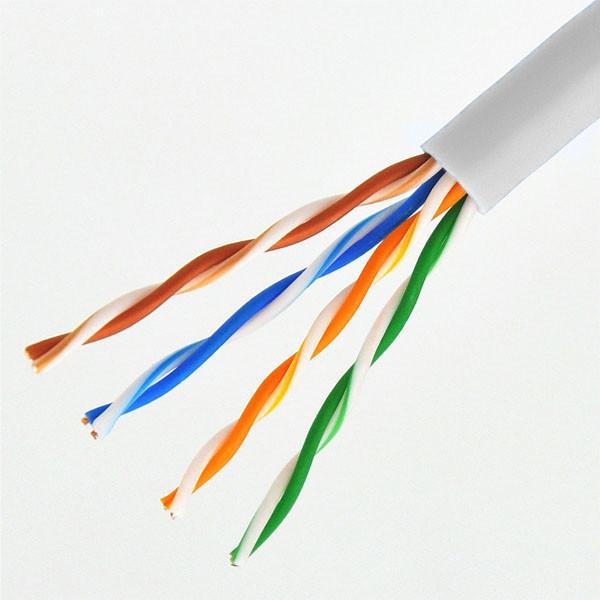

LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CABLE-002
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
shenzhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Color :
according to the customer’s requirements
Data Transfer Rate :
100 Mbps
Length :
1000 ft
Jacket Material :
LSZH
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
U/UTP
Conductor Size :
24 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Description

Cat5e UTP LSZH 24AWG Solid bare copper Network Cable 1000FT ​

Description:

This high-performance Low Smoke Zero Halogen (LSZH) Category 5e Ethernet cable is designed specifically for modern high-speed network applications. Using advanced low smoke and halogen-free materials, this network cable not only ensures high-speed and stable data transmission, but also greatly improves safety and environmental performance.

1. Low Smoke Zero Halogen: The unique LSZH (Low Smoke Zero Halogen) material releases very little smoke during combustion and does not contain harmful substances such as halogens, effectively reducing harm to the environment and human health. It is particularly suitable for places with extremely high safety requirements, such as data centers, office buildings, hospitals, and schools.

2. High quality copper core: using high-purity oxygen free copper conductors to ensure extremely low signal transmission loss, supporting Ethernet transmission speeds up to 100Mbps, easily meeting various high-speed data transmission needs.

3. Durable outer layer: covered with high-quality PVC sheath to enhance the wear resistance and tear resistance of the cable, while maintaining its flexibility and ease of wiring, extending its service life.

> Category: Cat5e UTP LSZH CABLE
> Transmission rate: 100Mbps Ethernet and higher (up to 1Gbps under ideal conditions)
> Frequency bandwidth: 100MHz
> Impedance: 100 Ω
> Transmission distance: up to 100 meters (compliant with Ethernet standards)
> Color selection: Multiple colors available for easy differentiation and management of different routes

> RoHs/REACH Complied LSZH Jacket

> Rate temperature:60℃ 75℃

> InstallationTemperature: -30℃-+50℃

> CompliestoANSI/TIA-568-B.2&IS0/EC11801

> CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001

Specifications:

Product Description: Cat 5e UTP 4 X 2 X 24AWG LSZH
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 4.8 ± 0.15
Average THK 0.30 ~ 0.40

Color

 according to the customer's requirements
Marking Color black
Marking

according to the customer's

requirements

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values


Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. Please strictly follow the wiring standards during construction, and do not tie or excessively bend the network cables.

3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wire sequence and avoid problems such as disconnected lines or unstable network connections.

4.It is best to use a single network cable at a distance of no more than 100 meters to ensure optimal transmission performance.

5. Ensure that the shielded network cable is grounded during installation.

Applications:

1. LSZH Cat5e Ethernet cable, with their unique environmental and safety features, are widely used in multiple key fields and scenarios, ensuring efficient and secure data transmission.

2. In modern office environments, this Cat5e cable has become the cornerstone of building high-speed LANs. Whether it is busy commercial buildings or government agencies that prioritize efficiency and safety, LSZH Category 5e Ethernet cables can provide stable data transmission, support efficient office processes and file sharing. At the same time, their low smoke and halogen-free characteristics can significantly reduce the harm of smoke in emergency situations and ensure the safe evacuation of personnel.

3. Safety and reliability are crucial in medical facilities. LSZH Cat5e cable not only supports high-speed data transmission between medical devices such as medical imaging and electronic medical record systems, but also meets the high air quality requirements of medical facilities through the application of environmentally friendly materials, creating a safer and healthier treatment environment for patients and medical staff.

4. Educational institutions also benefit from the application of this network cable. In the school network, LSZH Category 5e Ethernet not only supports stable operation of multimedia teaching and online learning platforms, but also helps maintain the green ecology of the campus due to its environmental characteristics, creating a safer and healthier learning environment for students.

5. In addition, LSZH Category 5e Ethernet cables also play an indispensable role in data centers, monitoring systems, and smart homes. It can not only meet the demand for high-speed data transmission, but also provide additional security guarantees in emergency situations, reducing the impact of smoke on equipment and personnel.

LSZH 24AWG UTP CAT5E Cable Solid Bare Copper Network Cable 1000FT

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat5e UTP 24AWG Extend To 350MHz LSZH Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly, we need to understand your specific needs.

Secondly, we provide accurate quotations based on your needs.

Thirdly, if you need to make a sample for confirmation first, we will make a sample according to your requirements and pay a deposit after confirmation.

Fourthly, we arrange production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: What is the warranty period for your product?

A: We provide you with a ten-year warranty service, and our experience tells us that our products have never had any quality issues.

Q8: How does the company provide after-sales service?
A: Our after-sales service is 24 hours a day. If customers have any questions, we will answer and handle them as soon as possible.
