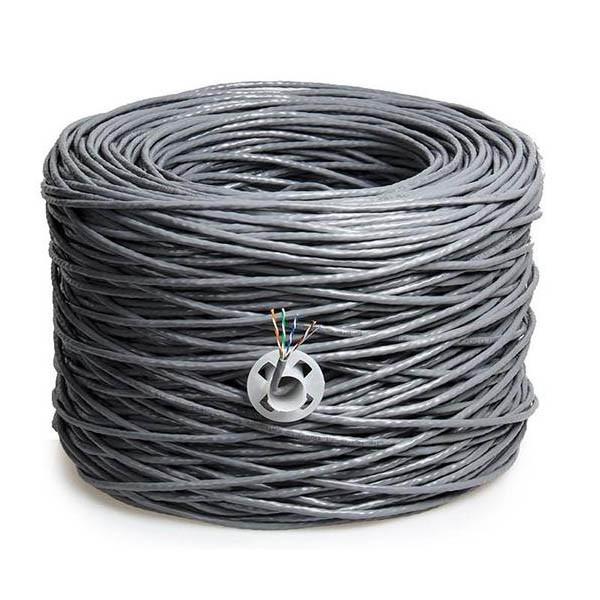

Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CABLE-003
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
shenzhen
MOQ :
1000pcs
Price :
$50-100/PCS
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Packaging Details :
Color Box+Packing Box 36*36*21cm
Delivery Time :
15-45Days
Color :
according to the customer’s requirements
Data Transfer Rate :
100 Mbps
Length :
1000 ft
Connector Type :
RJ45
Frequency :
100 MHz
Application :
100Base-TX/100Base-T4/100VG-AnyLan/ATM
Cable Type :
U/UTP CMR
Conductor Size :
24 AWG
Certifications :
UL, ETL, RCM, CPR, CSA
Conductor aMaterial :
Bare Copper
Compatibility :
Ethernet
Description

Cat5e UTP CMR Cable 24AWG Solid Pure copper Extend To 350MHz 1000FT

Description:

1. This CMR flame-retardant Category 5e Ethernet cable provides 100MHz bandwidth within a distance of 90 meters. The typical application speed is 100Mbps.

2. This Category 5e flame-retardant Ethernet cable is suitable for vertical trunk wiring in buildings and other scenarios, and can undertake the task of transmitting communication signals between floors.

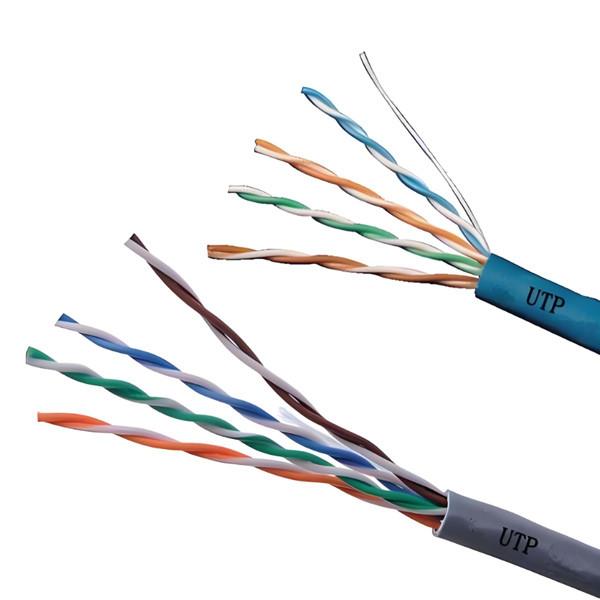

3. This Category 5e product uses high-quality oxygen free copper as the transmission conductor and uses 4 pairs of 8-core twisted pair wires. The conductor size meets the standard requirements and can provide reliable and stable transmission performance.

4. Due to its excellent fire resistance and suitability for vertical wiring, CMR cables are widely used in vertical mainline subsystems within buildings, such as elevator shafts and vertical wiring channels between floors. They are commonly used for network cabling systems in large buildings such as office buildings, shopping malls, and hotels to ensure stable and secure network communication between floors.

Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT

Product Description

❶ Inner Conductor

 Composition : Solid Bare Copper (BC)
Diameter : See table below
❷Insulation Composition : High density Polyethylene (HDPE)
Diameter : See table below
❸Filler Type of filler : Ripcord
Composition : Polyester

❹Jacket

 Composition : PVC, Rated 60 or 75℃
Dimensions : See table below
color : according to the the customer's requirements

Specifications:

Product Description: Cat 5e U/UTP 4 X 2 X 24AWG (CMR)
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, Rated 60 or 75℃
Hardness 81 ± 3
OD 5.0 ± 0.2
Average THK 0.45 ~ 0.55

Color

 according to the customer's requirements

Marking Color

 according to the customer's requirements
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e CMR UTP CABLE

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Notices:

1. After unpacking, please carefully inspect the product and handle it with care.
2. During the construction period, it is necessary to follow the wiring specifications and avoid bundling and excessive bending of network cables.
3. When making RJ45 network cable connectors, please follow the T568B or T568A standard to ensure that the wiring sequence is correct to prevent line faults or network instability.
4. To ensure optimal transmission performance, it is recommended to use a single Ethernet cable with a length not exceeding 100 meters.

Applications:

CMR flame-retardant rated Cat5e Lan Cable have been widely used in various network cabling scenarios due to their excellent flame-retardant performance and stable transmission capability. This network cable uses 4 pairs of 24 AWG high-quality oxygen free copper transmission wires, covered with a highly flame-retardant PVC protective sleeve on the outside. It not only effectively prevents fires and ensures the safety of data centers and personnel, but also prevents moisture from entering in harsh outdoor environments, maintaining the stability of data transmission. CMR level Category 5e Ethernet cables support transmission rates of up to 100 MHz and transmission distances of up to 90 meters, fully meeting the application requirements of high-performance Ethernet. Whether in outdoor overhead, pipeline laying, or indoor vertical trunk subsystems, CMR flame-retardant Category 5e network cables can provide excellent network connectivity, ensuring efficient and secure data transmission.

Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT

FAQ

UL/CE/RoHS/ETL/CPR Certificate Lan cable Cat5e U/UTP 24AWG Extend To 350MHz CMR PVC Bare Solid Copper

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Our factory takes 3-5 days to complete the sampling process, while mass production takes 15-45 days to complete.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: The order quantity generally starts at 1000PCS, and the starting quantity varies for different products, but the total quantity needs to exceed 1000PCS.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea, which usually takes about 7 days to arrive.

Q5. How to proceed an order for network cable?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6.Is it OK to print my logo on network cable product?

A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q8: How to deal with the faulty?

Our products undergo strict testing upon leaving the factory to ensure 100% compliance.

If there are any problems during transportation or other reasons causing product issues, we will also do our best to help customers solve them.
