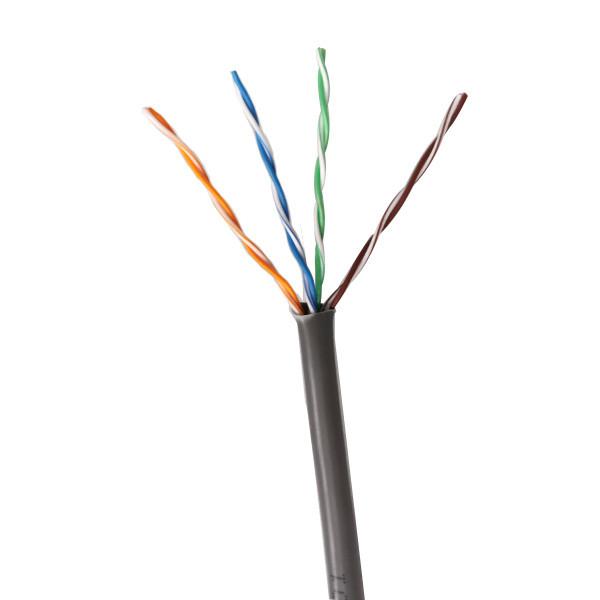

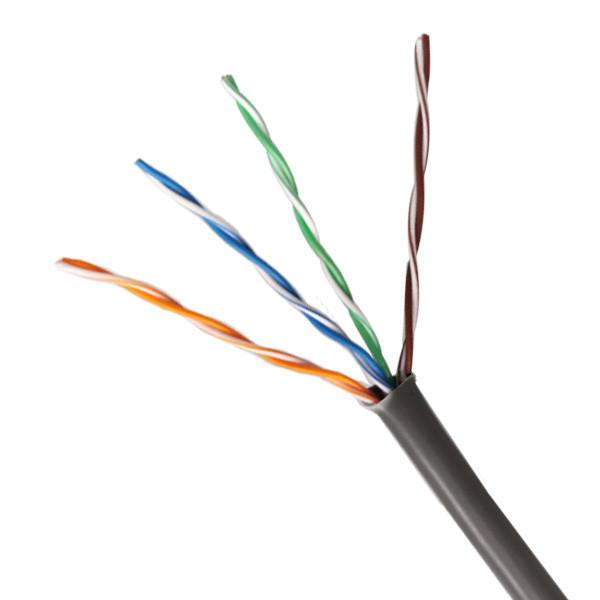

CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5U-004
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 36*36*21cm
Conductor Size :
24 AWG
Conductor Material :
Copper
Jacket Material :
PVC
Termination Type :
TIA/EIA 568B
Frequency :
100 MHz
Color :
Grey
Length :
1000 Feet
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Description

Cat5e UTP 100 MHz High Speed Data Transfer PVC CMX Ethernet Cable

Product Description:

1.The UTP CAT5E Cable is also designed to be durable and long-lasting. Its copper conductor material ensures that it can withstand frequent use, bending, and twisting without losing its performance. The cable is available in a length of 1000 feet, making it ideal for use in large buildings or for long-distance connections.

2.The conductor size of the UTP CAT5E Cable is 24 AWG, which is a standard size for Ethernet cables. This ensures that the cable can provide reliable and fast data transmission without any interference or signal loss. Additionally, the cable is available in a grey color, which makes it easy to identify and distinguish from other cables.

3.Overall, the UTP CAT5E Cable is an excellent choice for anyone who needs a reliable and high-performance networking cable. It is ideal for use in a variety of applications, including data centers, server rooms, and other high-traffic areas. Additionally, its durable construction and long-lasting design ensure that it can provide reliable performance for years to come.

Features:

  • Product Name: UTP CAT5E CABLE
  • Termination Type: TIA/EIA 568B
  • Conductor Size: 24 AWG
  • Frequency: 100 MHz
  • Conductor Material: Copper
  • Certifications: UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Technical Parameters:

Product Cat5E Ethernet Patch Cable
Length 1000 Feet
Conductor Size 24 AWG
Color Grey
Termination Type TIA/EIA 568B
Conductor Material Copper
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Frequency 100 MHz
Jacket Material PVC
CAT6A CAT7 CAT8 Cable CAT6A CAT7 CAT8 Cable

Product Description:Cat5e UTP 100MHz CMX Plenum Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PVC, Rated 60 or 75℃
Hardness 81 ± 3
OD 5.0 ± 0.2
Average THK 0.45 ~ 0.55

Color

 Grey

Marking Color

 black
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e U/UTP

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.This UTP CAT5E Cable is widely used in both residential and commercial settings and is perfect for connecting devices such as computers, routers, switches, and other networking hardware. It is also compatible with other networking devices like CAT6A Ethernet Cable, CAT6A CAT7 CAT8 Cable, and more.

2.With a length of 1000 feet, this ITI-LINK ITI-CT5U-001 UTP CAT5E Cable is perfect for large networking projects, such as data centers, schools, hospitals, and businesses. This cable is also ideal for home use, especially for those who need to connect multiple devices to a single network.

3.Whether you are setting up a new network or upgrading your existing one, this UTP CAT5E Cable is an excellent choice. It provides reliable and fast data transmission, ensuring that your network runs smoothly and efficiently.

4.In summary, the ITI-LINK ITI-CT5U-004 UTP CAT5E Cable is a versatile networking device that is suitable for various applications and scenarios. It is reliable, durable, and easy to install, making it an excellent choice for both home and business use.

CMX UTP CAT5E Cable 100MHz PVC 0.51mm High Speed Network Plenum Cable

Packing and Shipping:

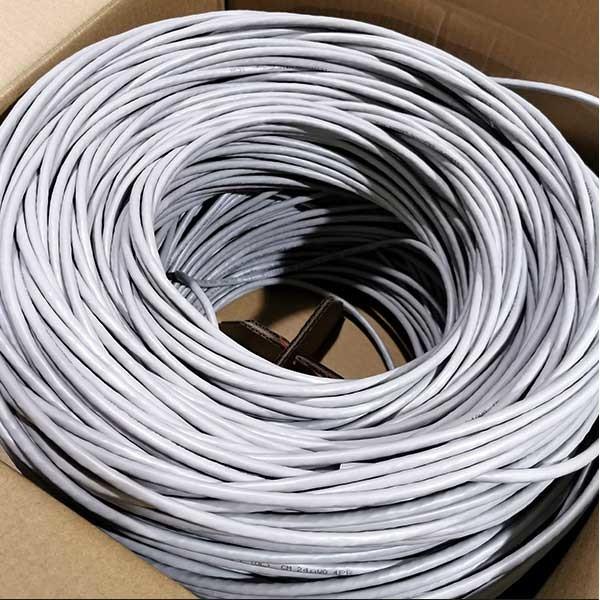

Product Packaging:

The UTP CAT5E CABLE is packaged in a durable and eco-friendly cardboard box that ensures the cable stays safe during shipping and storage. The box is labeled with the product name and specifications for easy identification.

Shipping:

The UTP CAT5E CABLE is shipped through trusted courier services to ensure timely delivery. The cable is carefully packed in the cardboard box with additional padding to prevent any damage during transit.

Packaging size: 36x36x21cm

FAQ:

Here are the frequently asked questions and answers for the ITI-LINK UTP CAT5E CABLE:

Q: What is the maximum length of the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE?

A: The maximum length of the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE is 305 meters or 1000 feet.

Q: What is the bandwidth of the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE?

A: The bandwidth of the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE is up to 100 MHz.

Q: Is the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE suitable for outdoor use?

A: No, the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE is not suitable for outdoor use as it is not designed to withstand harsh weather conditions.

Q: What is the color of the ITI-LINK ITI-CT5U-001 UTP CAT5E CABLE?

A: The ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE is gray in color.

Q: Where is the ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE manufactured?

A: The ITI-LINK ITI-CT5U-004 UTP CAT5E CABLE is manufactured in SHENZHEN.
