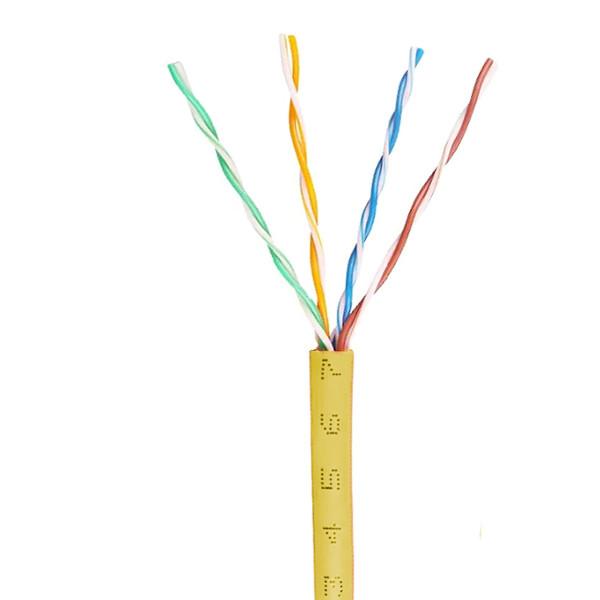

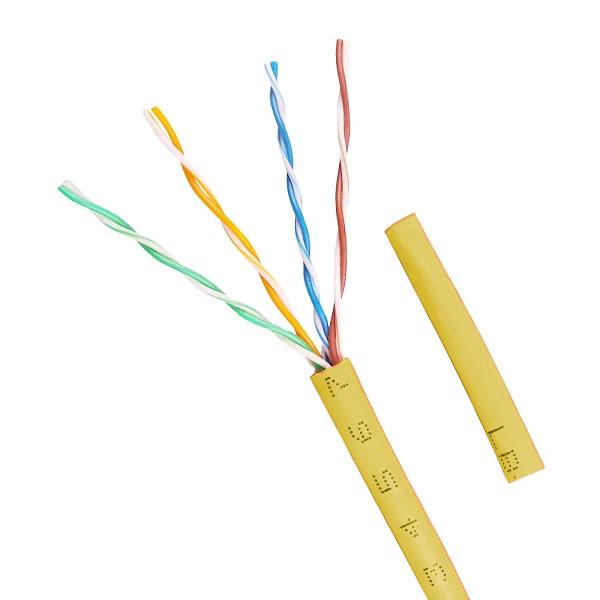

100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5U-006
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 36*36*21cm
Conductor Size :
24 AWG
Conductor Material :
Copper
Frequency :
100 MHz
Length :
1000 Feet
Jacket Material :
PVC
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Termination Type :
TIA/EIA 568B
Color :
Yellow
Description

Cat5e UTP CMP Cable For Network Transmission TIA/EIA 568B Standard 100MHz 24AWG

Product Description:

1.With a conductor size of 24 AWG, this cable is capable of supporting high-speed data transfer rates up to 1000 Mbps. This makes it an excellent choice for streaming high-quality video, playing online games, or transferring large files quickly and efficiently.

2. Transmission performance: The Category 5e network cable uses 4 pairs of high-quality oxygen free copper transmission wires with 24 AWG core diameter, with a transmission distance of 90 meters, a transmission rate of 100 MHz, and a supported transmission bandwidth of 100 MHz, ensuring high-speed and stable data transmission.

3. Flame retardant grade: CMP grade, with extremely high flame retardant performance. This level of network cable performs well in the combustion test, effectively preventing the spread of flames, providing longer escape time and smaller fire losses. Its flame retardant temperature can reach up to 800 degrees, maintaining stability in extreme environments and ensuring communication security.

4.The UTP CAT5E CABLE is also available in a stylish yellow color, which makes it easy to identify and distinguish from other cables that you may have. This color also adds a touch of style to your networking setup, making it look more organized and professional.

With a frequency of 100 MHz, this cable is capable of supporting gigabit Ethernet speeds, which is more than enough for most home and office networking needs. This makes it an excellent choice for connecting your computer, printer, or other devices to your network.

4.Additionally, the UTP CAT5E CABLE has been certified by both UL and ETL, which ensures that it meets the highest standards of quality and safety. This certification also means that this cable is compatible with a wide range of devices and networking equipment, making it a versatile and reliable choice for all your networking needs.

5.In summary, the UTP CAT5E CABLE is a high-quality and reliable networking cable that provides fast and efficient data transfer speeds for all your internet and networking needs. With its durable PVC jacket material, stylish yellow color, and certification from UL and ETL, this cable is an excellent choice for both home and office environments. Whether you need to stream high-quality video, play online games, or transfer large files, the UTP CAT5E CABLE is the perfect choice for you.

Features:

  • Product Name: UTP CAT5E CABLE
  • Conductor Material: Copper
  • Termination Type: TIA/EIA 568B
  • Conductor Size: 24 AWG
  • Jacket Material: PVC
  • Color: yellow

Technical Parameters:

Product Attribute Value
Cable Type: Cat5e UTP Cable
Color: Yellow
Conductor Material: Copper
Certifications: UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Termination Type: TIA/EIA 568B
Length: 1000 Feet
Frequency: 100 MHz
Conductor Size: 24 AWG
Jacket Material: PVC
Product Name: Cat5E Ethernet Patch Cable

Product Description:Cat5e UTP CMP Cable For Network Transmission TIA/EIA 568B Standard
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

 FEP DAIKIN NP-101 E79842 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.90 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 250%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥20 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 200 %
3p: S=22.0 mm (32%) tensile strength after aging ≥16 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=80 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

Material

 PVC, MSC 1080 NAT E107947
Hardness 81 ± 3
OD 5.0 ± 0.2
Average THK 0.30 ~ 0.40

Color

 Yellow

Marking Color

 BLACK
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e U/UTP

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

1.One of the key features of this cable is its UL Listed and ETL Verified certifications, which ensure that it meets the highest quality standards. This means that it can be used in a wide range of applications, including data centers, offices, and homes.

2.The ITI-LINK Cat5e UTP Cable is also ideal for use with Cat 7 Ethernet Patch Cable and Cat5E Ethernet Patch Cable. Its termination type, TIA/EIA 568B, ensures that it can be easily connected to a wide range of devices, including routers, switches, and computers.

3.Whether you need to connect your home network or your business network, the ITI-LINK Cat5e UTP Cable is the perfect choice. Its high-quality construction and certifications make it a reliable and durable option, while its termination type ensures that it can be easily connected to a wide range of devices.

4. High security scenarios: CMP level Category 5e Ethernet cables are commonly used in communication scenarios that require high security and stability, such as data centers, large office buildings, hospitals, etc. Especially in ventilation ducts or air handling equipment, its performance advantages are particularly evident.

5. Alternative: Due to its highest fire rating and safety, as well as its suitability for any type of cable network requirements, CMP grade Ethernet cables can replace CM and CMR grade Ethernet cables, but at a relatively higher price.

100MHz 24AWG Cat5e CMP Cable UTP For Network Transmission TIA/EIA 568B Standard

Packing and Shipping:

Product packaging:

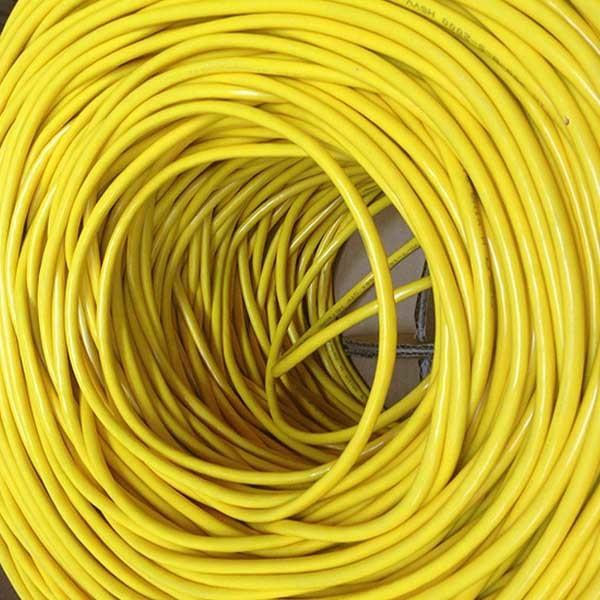

The UTP CAT5E cable is rolled up using a figure eight roll and packaged in a colored cardboard box measuring 36 x 36 x 21 cm. Then use kraft paper outer box packaging to protect the inner box from damage. The packed outer boxes are stacked on the cardboard and wrapped with PE film to prevent moisture or rain during transportation.

Shipping:

UTP CAT5E cable products will be transported via standard ground transportation methods. The transport carrier will depend on the destination and will be selected to ensure timely delivery. The customer will receive a tracking number to monitor the status of their goods.

FAQ:

Q: What is the brand name of the CAT5E cable?

A: The brand name of the CAT5E cable is ITI-LINK.

Q: What is the model number of the CAT5E cable?

A: The model number of the CAT5E cable is ITI-CT5U-006.

Q: Where is the CAT5E cable manufactured?

A: The CAT5E cable is manufactured in SHENZHEN.

Q: What is the maximum length of the ITI-CT5U-006 CAT5E cable?

A: The maximum length of the ITI-CT5U-006 CAT5E cable is 100 meters.

Q: Is the ITI-CT5U-006 CAT5E cable backward compatible with CAT5 cables?

A: Yes, the ITI-CT5U-006 CAT5E cable is backward compatible with CAT5 cables.
