UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5U-008
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 36*36*21cm
Conductor Size :
24 AWG
Termination Type :
TIA/EIA 568B
Jacket Material :
PE+PVC
Conductor Material :
Copper
Color :
BLACK
Certifications :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Frequency :
100 MHz
Length :
1000Feet
Description

Cat5e UTP Outdoor Network Cable Solid 24AWG PE+PVC Corrosion Preventive 1000FT

Product Description:

The outdoor double-layer PE+PVC CAT-5 network cable is a high-performance network transmission medium, specially designed for outdoor environment, with excellent weather resistance, aging resistance and waterproof performance. The following is a detailed description of the product:

1. The outdoor double-layer PE+PVC Category 5e network cable uses high-quality oxygen free copper as the conductor, and is wrapped with a double-layer sheath (PE+PVC) to ensure stability and durability in harsh outdoor environments. This network cable supports high-speed data transmission and is widely used in outdoor network cabling, monitoring systems, security engineering, and other fields.

2. Double layer sheath design:
The outer layer is made of PVC, which has excellent weather resistance and anti-aging performance, and can resist the erosion of natural factors such as ultraviolet rays, wind and rain.
The inner layer is made of PE material, which has excellent waterproof performance and tear resistance, effectively protecting the internal core from damage.


3. High quality oxygen free copper conductor:
The conductor is made of 24AWG solid oxygen free copper to ensure the stability and high speed of signal transmission.
The copper core wire diameter is 0.5mm, meeting the transmission requirements of Cat5e outdoor network cables.
High density polyethylene insulation layer:
The insulation layer is made of high-density polyethylene (HDPE) material with a thickness of 0.2mm, which has excellent insulation performance and voltage resistance.


4. Cable structure:
The cable adopts a 4-pair 8-core twisted pair structure, with color differentiation for each core, making it easy to identify and install.
The outer layer of the cable is printed with the manufacturer's logo and cable code for easy traceability and management.


5. Transmission performance:
The transmission performance parameters meet the ISO/IEC 11801 Class D standard and the TIA/EIA 568-B.2 Category 5e standard.
The performance indicators are superior to the current Category 5e cables at 100MHz, supporting high bandwidth applications such as 1G Base-T and ATM.


6. Operating temperature:
The operating temperature range is -30 to 50 ° C, suitable for various outdoor environments.

Features:

  • Product Name: UTP CAT5E OUTDOOR CABLE
  • Frequency: 100 MHz
  • Termination Type: TIA/EIA 568B
  • Length: 1000 Feet
  • Conductor Size: 24 AWG
  • Conductor Material: Copper

Technical Parameters:

.
Product Description: Cat5e UTP 24AWG 1000Ft Solid Outdoor Ethernet Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.95 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)

jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA

Filler

 Material Ripcord Master Carton NA
Construction 300D

Fill the glue gel

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material PE+PVC
Hardness 81 ± 3
OD 5.3±0.2
Average THK 0.50 ~ 0.60

Color

 Black

Marking Color

 White
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e UTP OUTDOOR CABLE

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

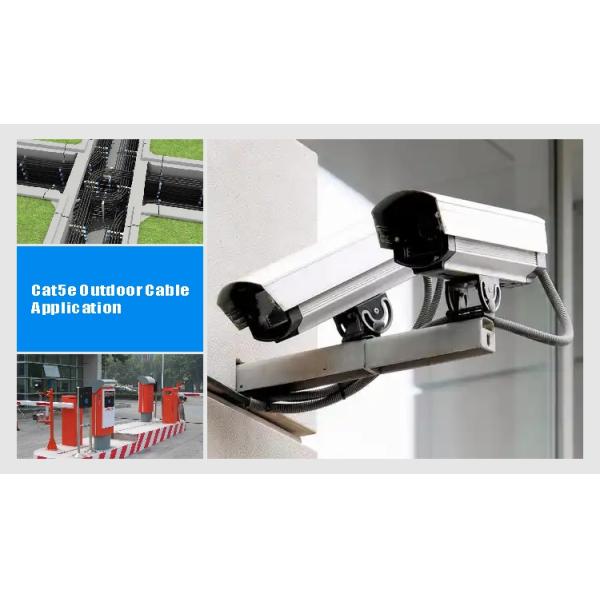

Applications:

Outdoor double-layer PVC+PE Category 5e Ethernet cable is suitable for the following fields:

1. Outdoor network cabling: network cabling in outdoor areas such as residential areas, campuses, industrial parks, etc.
2. Monitoring system: used for network connection of outdoor monitoring cameras.
3. Security engineering: network connection of outdoor security equipment such as access control systems and alarm systems.

UTP Cat 5e Lan Cable Outdoor Network Cable Solid 24AWG PE+PVC Waterproof 1000FT

Notice:


1. During the wiring process, attention should be paid to protecting the outer skin of the network cable, avoiding excessive bending or pulling to prevent damage to the core.


2. Network cables should be avoided from being exposed to extreme high or low temperature environments to avoid affecting their transmission performance and service life.


3. When connecting the network cable, a dedicated network connector or crystal head should be used to ensure reliable and stable connection.

FAQ:

Below are some frequently asked questions about ITI-LINK's UTP CAT5E CABLE (Model Number: ITI-CT5U-008) from SHENZHEN:

Q: What is the length of the ITI-LINK UTP CAT5E CABLE?

A: The ITI-LINK UTP CAT5E CABLE comes in various lengths ranging from 328Ft to 1000 Ft.

Q: What is the maximum bandwidth supported by this cable?

A: The ITI-LINK UTP CAT5E OUTDOOR CABLE supports a maximum bandwidth of 100 MHz.

Q: Is this cable compatible with PoE (Power over Ethernet) devices?

A: Yes, the ITI-LINK UTP OUTDOOR CAT5E CABLE is compatible with PoE devices.

Q: Is this cable suitable for outdoor use?

A: This Cat5e Outdoor Cable is specifically designed for outdoor cabling and features resistance to aging and corrosion. It is the best choice for outdoor wiring.
