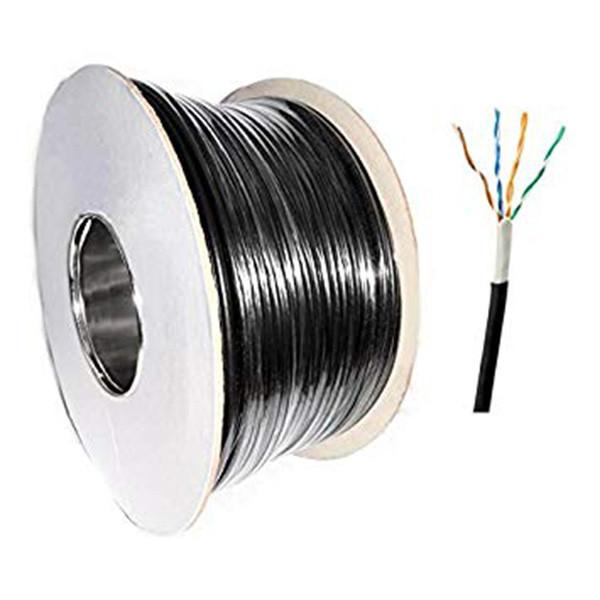

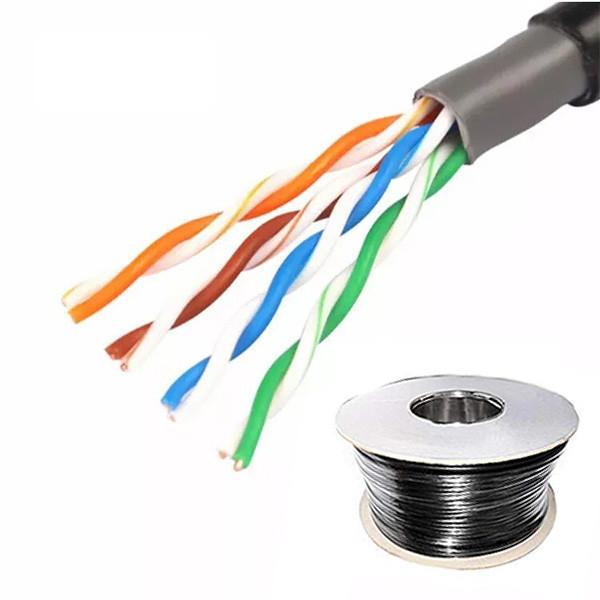

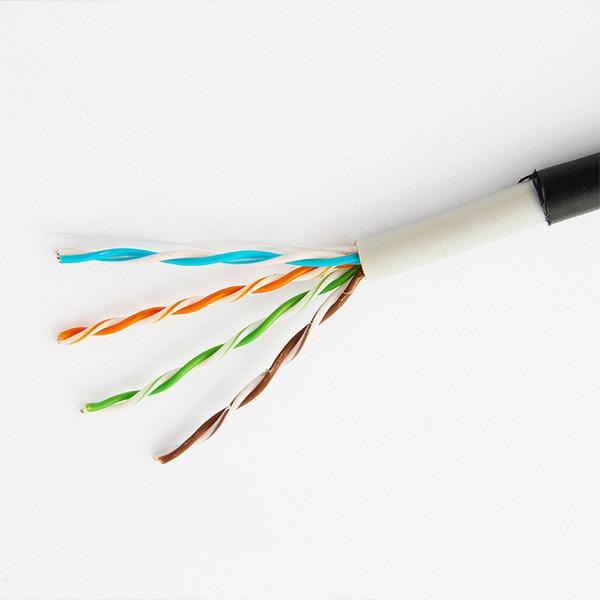

Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5U-010
Place of Origin :
shenzhen
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Plastic Shaft：30*26*12cm Color Box Size: 32*28*32cm
Color :
Black
Conductor Material :
Copper
Certifications :
Solid Outdoor PE+PVC cables are a type of cable with a solid structure, suitable for outdoor use. They are made of PE and PVC materials, possessing good physical strength and durability, capable of withstanding outdoor factors such as ultraviolet rays and
Jacket Material :
PE+PVC
Frequency :
100 MHz
Length :
500 Feet
Termination Type :
TIA/EIA 568B
Conductor Size :
24 AWG
Description

Cat5e UTP Outdoor Cable 24AWG Solid PE+PVC 500FT Black Outdoor waterproof cable

Product Description:

Product description of Category 5e outdoor waterproof PE+PVC double-layer network cable

1. Our Super Cat5e outdoor waterproof PE+PVC double-layer network cable is designed specifically for complex and changing outdoor environments, aiming to provide users with a high-performance, high stability, and high security network transmission medium.

The following is a detailed description of the product:

1, Product Overview
This Cat5e outdoor network cable uses high-quality oxygen free copper as the conductor and is wrapped with a double-layer sheath (PE+PVC) to ensure data transmission stability and durability in harsh outdoor environments. This network cable not only supports high-speed data transmission, but also has excellent waterproof, moisture-proof, sun protection, and anti-interference capabilities, making it an ideal choice for outdoor network cabling, monitoring systems, security engineering, and other fields.

2, Product Features
Double layer sheath design:
1) Outer PE sheath: Made of imported PE material, it has excellent waterproof performance and tear resistance, effectively resisting the erosion of outdoor rainwater and humid environment.


2) Inner PVC sheath: high-quality PVC material is used, which has the characteristics of wear resistance, aging resistance, UV resistance, etc., to further protect the internal core from damage.


3) High quality oxygen free copper conductor:
The conductor is made of 24 gauge (AWG) solid oxygen free copper to ensure efficient and stable signal transmission.
The copper core wire diameter is moderate, meeting the transmission requirements of Cat5e outdoor network cables and providing high-speed and stable network connections.


4) High density polyethylene insulation layer:
The insulation layer is made of high-density polyethylene (HDPE) material, which has excellent insulation performance and voltage resistance, ensuring the safety and stability of data transmission.


Cable structure:
1) The cable adopts a 4-pair twisted pair structure, and each pair of twisted wires is precision twisted and shielded to reduce signal interference and attenuation.
2) The outer layer of the cable is printed with clear identification and coding, making it easy for users to identify and trace.


Waterproof performance:
The unique double-layer sheath design endows the network cable with excellent waterproof performance, ensuring stable data transmission even in rainy or humid environments.


Anti interference capability:
The shielding layer adopts a dual shielding structure of single-sided aluminum foil and copper wire woven mesh, effectively resisting external electromagnetic interference and radio frequency interference, and improving the reliability and stability of data transmission.

Technical Parameters:

Conductor Size 24 AWG
Frequency 100 MHz
Jacket Material PE+PVC
Length 500 Feet
Termination Type TIA/EIA 568B
Conductor Material Copper
Certifications UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Color Black

Product Description:

Cat5e UTP 24AWG Solid Outdoor PE+PVC 500FT Black Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%

Insulation

Material

HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 0.86 ± 0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.20 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=17.5 mm (24%)) elongation after aging NA
3p: S=22.0 mm (32%) tensile strength after aging NA
4p: S=15.5 mm (21%)

Outer Jacket

 elongation before aging ≥350%
OD / tensile strength before aging ≥9.7MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥263%
Direction according to the drawing tensile strength after aging ≥7.3MPa
Filler / Packing
OD / Inner Box NA

Filler

 Material Ripcord Master Carton NA
Construction 250D*3

Fill the glue gel

Outside Shield

 Shield /
Construction /
Material /
Coverage /

Jacket

 Material Inner Jacket: PVC + Outside Jacket: PE
Hardness 30
OD 4.8 / 6.2
Average THK /

Color

 Black

Marking Color

 White
Marking according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C

UL 444 & CSA C22.2 No. 214

 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
Mutual capacitance 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m
Characteristic impedance at 100MHz 100 ± 15 Ω
Spark Test 2000 ± 250VOC

Transmission Properties
CAT5e UTP outdoor cable 500ft

No.

Frequency

Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11
12
13
14
Remarks: ＊ are the reference values

Applications:

This Cat5e outdoor waterproof PE+PVC double-layer network cable is widely used in the following fields:

1. Outdoor network cabling: network cabling in outdoor areas such as residential areas, campuses, industrial parks, etc.


2. Monitoring system: used for network connection of outdoor monitoring cameras to ensure the clarity and stability of monitoring images.


3. Security engineering: Network connections for outdoor security equipment such as access control systems and alarm systems, providing secure and reliable communication support.

Outdoor UTP CAT5E Cable 24AWG Solid PE+PVC 500FT Black Outdoor Waterproof Cable

Notic:

1. During the wiring process, attention should be paid to protecting the outer skin of the network cable, avoiding excessive bending or pulling to prevent damage to the core.


2. Network cables should be avoided from being exposed to extreme high or low temperature environments to avoid affecting their transmission performance and service life.


3. When connecting the network cable, a dedicated network connector or crystal head should be used to ensure reliable and stable connection.

FAQ:

Q: What is the brand name of the CAT5E cable?

A: The brand name of the Cat5e UTP Outdoor Cable is ITI-LINK.

Q: What is the model number of the CAT5E cable?

A: The model number of the CAT5E cable is ITI-CT5U-010.

Q: Where is the CAT5E cable manufactured?

A: The CAT5E cable is manufactured in SHENZHEN.

A: What are the special features of Category 5e outdoor double-layer network cables compared to indoor cables?
Q: Compared to indoor cables, Category 5e outdoor double-layer network cables have the following special features:
a. Double layer sheath design
b. Stronger durability
c. Waterproof and moisture-proof performance

Q: What is the maximum data transfer rate of the CAT5E cable?

A: The CAT5E cable is capable of transferring data at speeds of up to 1000Mbps.
