23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6SF-07
Place of Origin :
SHENZHEN
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)
Conductor Material :
Copper
Maximum Data Rate :
10Gbps
Cable Type :
CAT6
Jacket Material :
PVC
Maximum Transmission Distance :
500Feet
Shielding Type :
SFTP
Conductor Size :
23AWG
Maximum Frequency :
250MHz
Description

23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission

Product Description:

1.The ITI - LINK CAT6 SFTP Cable (Model: ITI - CT6SF - 07) is a top - notch networking cable engineered for high - speed and efficient data transmission across diverse networking applications. Originating from SHENZHEN, this cable is crafted to offer reliable performance over extensive distances.

2.This Cat6 LAN cable is built with a 23AWG copper conductor. The 23AWG copper construction provides outstanding conductivity and signal strength, guaranteeing a reliable network performance that you can count on.

3.The cable is equipped with SFTP shielding. This type of shielding offers exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI). As a result, it ensures a stable and uninterrupted data transmission. Moreover, it helps in reducing signal loss and crosstalk, thus maintaining the integrity of your network connections.

4.With a maximum transmission distance of 100 meters, the ITI - LINK CAT6 SFTP Cable is well - suited for connecting devices within a local area network (LAN) or structured cabling systems. Whether you're setting up a network in an office, a home, or a data center, this cable provides the flexibility and reliability needed for seamless networking.

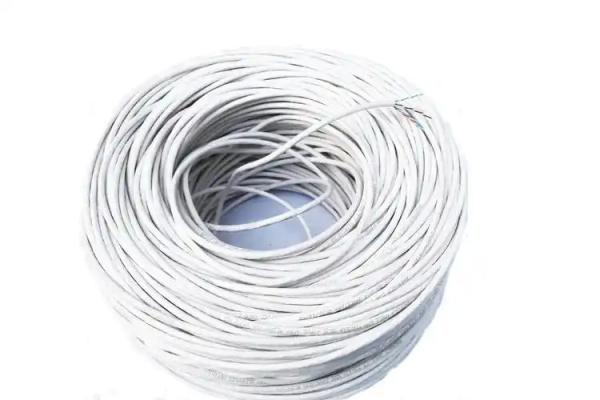

5.The jacket of this cable is made of white PVC. The white PVC jacket not only offers durability and protection to the inner components of the cable but also makes it easy to identify in a complex cabling environment. It is resistant to abrasion, moisture, and other environmental factors, which makes the cable suitable for both indoor and outdoor installations.

6.Operating at a maximum frequency of 250MHz, this Cat6 LAN cable supports high - speed data transfer and can meet the bandwidth requirements of various applications. It supports data rates of up to 10Gbps, making it an ideal choice for bandwidth - intensive applications such as streaming high - definition multimedia content, transferring large files, or engaging in online gaming.

7.Overall, the ITI - LINK CAT6 SFTP Cable (Model: ITI - CT6SF - 07) is a reliable and efficient networking solution that meets the demands of modern networking. With its 23AWG copper conductor, SFTP shielding, 100 - meter transmission distance, white PVC jacket, and 250MHz maximum frequency, it is a versatile option for establishing secure and high - speed network connections. Whether you're a professional network installer, a tech enthusiast upgrading your home network, or a business owner in search of reliable networking solutions, you can trust the ITI - LINK brand and this cable to meet your networking needs.

Technical Parameters:

Cable Type CAT6 SFTP Cable
Maximum Frequency 250MHz
Shielding Type SFTP
Maximum Data Rate

10 Gbps
Conductor Material Copper
Jacket Material PVC
Conductor Size 23AWG

Product Description: 23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission
Rev.: A ECN Description:
Construction Item Description Electrical Property

Conductor

Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%

Insulation

 Material

HDPE

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

>1500 MΩ / 100m
OD 1.14 ±0.05 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min

No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown

insulation

 elongation before aging ≥ 300%

Pair Twist

Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)

jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa

Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 5.0X5.0X0.5mmT Packing
OD / NA NA
Filler Ripcord 300D
Drain Wire Tinned Copper

Shield

 Shield Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%

Jacket

 Material PVC, 50P, -20~75℃
Hardness 81± 3
OD 7.2 ± 0.2
Average THK 0.55 ~ 0.60

Color

 White
Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013

No.

Frequency

Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)

Return Loss (Min)

NEXT (Min)

PS NEXT (Min)

EL-FEXT (Min)

PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min

NF EN 50289-1-3 / IEC 61196-1-105

No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V

NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC

Applications:

1.The ITI - LINK ITI - CT6SF - 07 SFTP Cat6 Cable represents a pinnacle of networking engineering. Developed in Shenzhen, this cable is tailor - made for high - speed, reliable data transfer across a wide range of networking environments.

2.At its core, the ITI - CT6SF - 07 features 23AWG copper conductors. The thick copper construction offers excellent conductivity, enabling seamless 10Gbps high - speed data transmission. This makes it well - equipped for bandwidth - hungry applications, from immersive 4K gaming sessions to large - scale enterprise file transfers.

3.The cable is sheathed in a white PVC jacket. This jacket provides enhanced durability, protecting the internal components from abrasion, moisture, and other environmental factors. Additionally, its white color simplifies cable identification in complex wiring installations, whether in a bustling data center or a home office. The jacket's robust design allows the cable to be deployed both indoors and outdoors without sacrificing performance.

5.Featuring advanced SFTP shielding, the ITI - CT6SF - 07 effectively guards against electromagnetic interference (EMI) and radio - frequency interference (RFI). This ensures stable and consistent data flow, minimizing signal loss and crosstalk. With a maximum transmission distance of 100 meters, it offers flexibility in network setup, enabling connections between various devices across large areas.

6.The ITI - CT6SF - 07 is highly versatile in device connectivity. It can easily link computers, printers, servers, routers, and switches. Whether you're a network administrator overseeing a large - scale enterprise network, an IT professional handling complex projects, or a home user aiming to optimize your network for streaming and gaming, the ITI - LINK ITI - CT6SF - 07 is an all - in - one solution.

7.Overall, rely on the ITI - LINK brand's reputation for quality and performance. The ITI - CT6SF - 07 Cat6 cable, with its 23AWG copper conductors, white PVC jacket, and 10Gbps - ready capabilities, is your go - to choice for all networking requirements.

23AWG Copper Conductor Cat6 SFTP Cable PVC Jacket for 10Gbps High-Speed Data Transmission

FAQ:

Q: What is the brand of this SFTP CAT6 Cable?

A: The brand of this cable is ITI-LINK.

Q: What is the model number of this cable?

A: The model number of this cable is ITI-CT6SF-07.

Q: Where is this SFTP CAT6 Cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the category of this cable?

A: This cable is a CAT6 SFTP (Screened Foiled Twisted Pair) cable.

Q: What is the length of this cable?

A: The length of this cable is 500 feet.
