T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer
Specifications
Brand Name :
Wanjia Star
Model Number :
WJ116
Certification :
CQC
Place of Origin :
Zhejiang
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
800000 units per month
Delivery Time :
7~10WD
Packaging Details :
25*20*7cm，Massive:to be advised
Product Name :
T91 Jqx-30F Wj116 30A 40A Relay 220V Ac Switch For Servio Stabilizer
Contact Arrangement :
1A、1B、1C
Contact Material :
AgSnO/AgCdO
Max. Switching Current :
30A,40A
Contact Capacity :
30A/40A 28VDC/250VAC
Mechanical :
1×10^7
Electrical :
1×10^5
Usage :
General Purpose,Protective
Description

T91 Jqx-30F Wj116 20A Relay 220V Ac Switch For Servio Stabilizer

1.Main Features:

● Product Number: WJ116 T91

● Coil Voltage: 3~36VDC

● Contact Load: 30A/40A 250VAC/28VDC

● Anti-dust Structure, Single Pole Conversion

● Strong Resistance, High Reliability

● Complying with IEC255 & GB8898 Standard

2.Technical Parameters:

Dimension 32.1*26.9*28.0
Max Current 15A/30A
Arrangement 1A/1B/1C
Contact Material Silver Alloy
Contact Resistance(By voltage drop 6V 1A) Max.30mΩ

Rating Nominal Switching Capacity

Resistive Load

30A 40A 240VAC

30A 40A 24VDC
Max.Switching Voltage 30VDC/250VAC
Max.Switching Current 30A,40A
Coil Voltage 3~48VDC
Max.Switching Power 7200VA
Mechanical Life(at 120 cpm) 1*107
Electrical Life(at 20 cpm) 2*104
Operate Time Max.20ms
Release Time Max.20ms
Dielectric Strength Open Contact ≥1500VAC
Coil and Contact ≥1500VAC
Insulation Resistance ≥100mΩ
Operation Humidity 45~85%
Ambient Temperature -40℃~85℃
Vibration Resistance Functional 10 ~ 55 Hz at Double Amplitude of 1.5mm
Destruction 10 ~ 55 Hz at Double Amplitude of 1.5mm
Shock Resistance Functional Min.10G
Destruction Min.100G

3.Dimention & Package

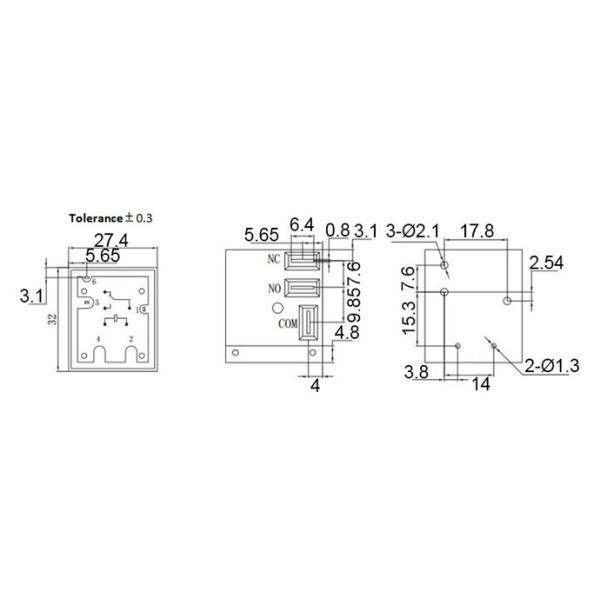

Dimension of product:

T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer

Packages:

Samples (small quantity): we default to use IVY box (Ref Size:25*20*7cm)

Shipments (large quantity): package can be self-defined based on our rich experience, box-carton-pallet.

We also adopt the skin packing to protect the pins and state of relays.

Marks on carton, or documents can be negotiated based on custom's requirements.

Fillers:For filler we will use foam, bubble material, high end PE form.

Others:

We have zip code on the products if any quality accidents, we will call back and tracking the production.

Welcome to contact us if you have any feedback on our packages, once we adopted your suggestion we can offer free samples or discount.

4.About IVY METERING

Our History:

Our team focus on metering and switching since 1994.

IVY brand was born in 2010, HK IVY, Shanghai IVY, Tongxiang was established in 2010, 2015 & 2016.

IVY METERING Co., Ltd. is a Chinese leading designer and manufacturer of electrical components for energy management

and industrial field. With own factory located in Zhejiang and sales center in Shanghai for lean managment.

Our product includes :

Switching series- magnetic latching relay,magnetic immune latching relay, power relay

Measuring components-current transformer, shunt resistor,

Measuring assembly-smart metering module and power sensor/

Others-communication/power supply modules, customizable integrated assembly etc.

Our Mission:

Focus on Energy Management,

Light up Better Life

5.Payment & Shipment

T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer

Flexible Payment

TT/ LC / PayPal / WeChat Pay / AliPay

More payment terms plz advise.
Please send us the bank memo after payments

In this case we can avoid mistakes on Account No.

If any changes on bank info we will call you even video

Plz don't believe any changes by emails

T91 30A 40A Stabilizer Relay 220V Power Control Relay For Servio Stabilizer

Shipment Items

Samples shipment:

Express:DHL / UPS / TNT / FedEx / EMS / Aramex / ABX etc...
AirPost:Post-NL / Singapore Post / ePacket / CDEK /
Hongkong Post / DHL eCommerce / PTT etc...
Bulk Shipment:China Post etc...

Agent or forwarder are acceptable for us​
