J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable
J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable
J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable
J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable
Specifications
Brand Name :
OEM
Model Number :
J1708
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
20AWG, pure copper
J1939 Male receptacle :
equivalent of Deutsch HD14-9-1939P
Type of J1939 male receptacle :
Type 1
J1708 Female socket :
equivalent of Deutsch HD16-6-12S-B010
Testing Voltage :
DC300V 5M ohm/10ms
Working Temperature :
−25℃ ~ +85℃
Description

J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable


Specification

J1939 male receptacle equivalent of Deutsch HD14-9-1939P
Type of J1939 male receptacle Type 1
J1708 Female socket equivalent of Deutsch HD16-6-12S-B010
Wire 20AWG, pure copper
Material of J1939 male receptacle PA66 + glass fiber
Material of J1708 female socket PA66 + glass fiber
Pin assignment or pin out customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year


The end of J1939 male and J1708 female connectors can be overmolded or not, according to your needs.

J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable

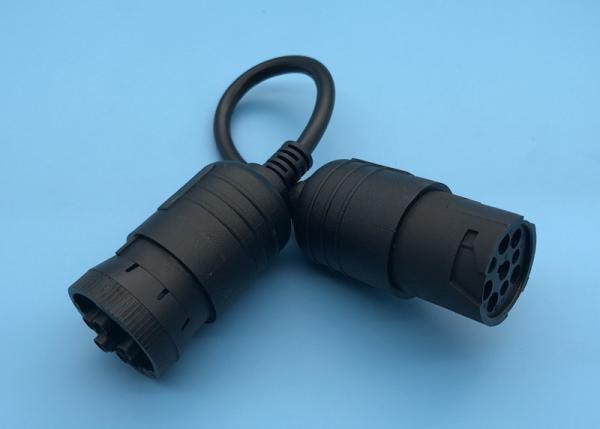

Overmolded


J1708 Deutsch 6 Pin Female to Black Type 1 J1939 Deutsch 9 Pin Male Cable
Not overmolded



Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):

J1939 male Signal J1708 female
A Ground E
B Battery C
F J1708-H A
G J1708-L B



The pin assignment or pin out can also be customized according to your needs.


Application

This cable allows you to connect your round 8 or 9 pin GREEN OR 8 or 9 pin BLACK ELD device or diagnostic cable to older 6 pin round diagnostics connector in medium and heavy duty vehicles model years from the early-to-mid-2000s.

The black 9 pin connector will accept BOTH BLACK AND/OR GREEN 8 or 9 pin plug. You can plug in any device or cable with round 8 or 9 pin whether it is black or green.

It works with all ELDs such as Cummins ZED, Garmin Elog, KeepTruckin ELD or other ELDs needing to plug into black OR green 8 or 9 pin diagnostics port.

One end has Deutsch HD16-6-12S-B010 6 pin plug with locking ring - this plugs on to your factory diagnostic connector located in trucks. The other end has HD14-9-1939P 9 pin BLACK receptacle - this will work with ANY BLACK OR GREEN 8 or 9 pin ELDs or diagnostics cables.
