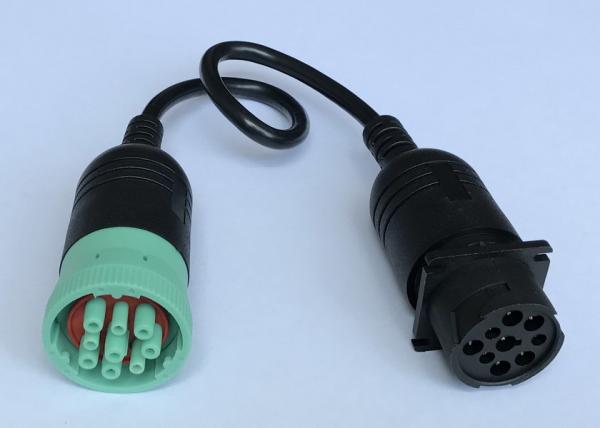

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable
Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable
Specifications
Brand Name :
OEM
Model Number :
J1939
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
18AWG, pure copper
J1939 female socket :
equivalent of Deutsch HD16-9-1939S-P080
Type of J1939 female connector :
Type 2
J1939 Male receptacle :
equivalent of Deutsch HD10-9-1939P
Type of J1939 Male receptacle :
Type 1
Testing :
100% open, short and miss-wire testing
Description

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable


Specification

9-Pin J1939 female socket equivalent of Deutsch HD16-9-1939S-P080
Type of 9-Pin J1939 female socket Type 2
9-Pin J1939 male receptacle equivalent of Deutsch HD10-9-1939P
Type of 9-Pin J1939 male receptacle Type 1
Wire 18AWG, pure copper
Material of 9 Pin J1939 connectors PA66 + glass fiber
Pin assignment or pinout customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year

The ends of Deutsch 9-Pin J1939 female and male connectors can be overmolded or not, according to your needs.

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable

Overmolded

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable

Not overmolded

The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.

The Deutsch 9 Pin J1939 female connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable


Pin assignment or pinout

In most cases, all 9 pins of the J1939 male and female connectors are connected, so there are 9 wires of 18AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.


The pin assignment or pinout can also be customized according to your needs.


Application

Some telematics, fleet management devices or trucking technology devices with 9-pin J1939 connector need to be installed in dash. This Deutsch 9 Pin J1939 Female to Male Cable can help extend the device to the dash.



Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
