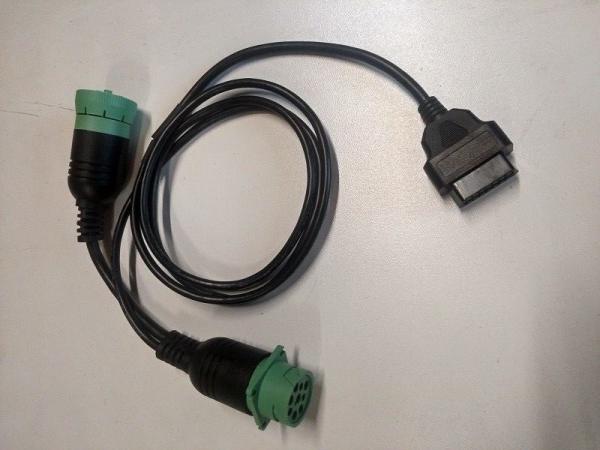

Green Deutsch 9-Pin J1939 Male to OBD2 OBD-II Female and J1939 Female CAN Bus Y Cable

Specification

The end of 9-Pin J1939 female and male connectors can be overflow molded or not, according to your needs.

Overflow molded

Not overflow molded

The Deutsch 9 Pin J1939 male receptacle is Type 1, so its Pin F is with bigger diameter. Type 1 or Type 2 J1939 female sockets can be inserted into Type 1 J1939 male receptacles.

Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):

Sometimes, the pin assignment or pin out can also be like this (6 pins to be connected):

The 6-wire cable also includes wiring for the J1708 lines. If you do not need the J1708 wires, it is better not to connect them as sometimes the added lines can interfere with the operation of some GPS trackers.

The pin assignment or pin out can also be customized according to your needs.

Application

This cable is used to connect telematics, fleet management devices or trucking technology devices such as GPS Trackers or ELDs (Electronic Logging Devices) to commercial vehicles that have the J1939 9-pin round Deutsch ports.

This cable will also allow OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to connect to the round J1939 connector. Bear in mind that most OBD2 software and scanners are based on reading PIDs, which are single parameters. J1939 is a PGN based protocol, where each PGN contains multiple parameters. Your diagnostic or scanner tool must be able to handle PGNs if it is to work with this cable.

Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
