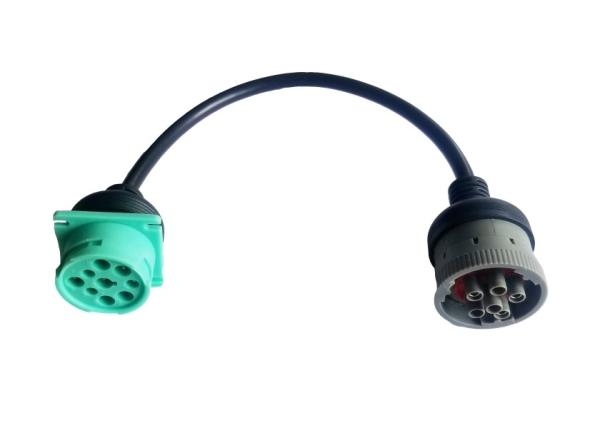

Green Deutsch 9-Pin J1939 Male to 6-Pin J1708 Female CAN Bus Cable


Specification

The 6-Pin J1708 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 6-Pin J1708 male receptacle assures that the connector won’t come unplugged accidentally.

The ends of 9-Pin J1939 male and 6-Pin J1708 male connectors can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.

Overmolded

Not overmolded

The Deutsch 9 Pin J1939 male connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J.


Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):

The pin assignment or pin out can also be customized according to your needs.


Application

This cable allows you to connect your round 8 or 9 pin ELDs (Electronic Logging Devices) to older 6 pin J1708 round diagnostic ports in medium and heavy duty vehicles model years from the early-to-mid-2000s.

The 6 pin J1708 female socket with locking ring plugs to the factory 6-Pin diagnostic diagnostic port. The other end, 9-Pin J1939 male receptacle then accepts 8 or 9 pin ELDs.
