Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable
Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable
Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable
Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable
Specifications
Brand Name :
OEM
Model Number :
J1939
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
20AWG, pure copper
Pin assignment or pin out :
customized
J1939 female plug :
Equivalent Of Deutsch HD16-9-1939S
Type of J1939 female plug :
Type 1
J1939 Male plug :
Equivalent Of Deutsch HD10-9-1939P
Type of J1939 male plug :
Type 1
Contact Resistance :
3 ohm max.
Insulation Resistance :
5M ohm min.
Description

Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable


Specification

J1939 female plug equivalent of Deutsch HD16-9-1939S
Type of J1939 female plug Type 1
J1939 male plug equivalent of Deutsch HD10-9-1939P
Type of J1939 male plug Type 1
Wire 20AWG, pure copper
Material of J1939 plug PA66 + glass fiber
Material of Yazaki 20P plug PA66
Pin assignment or pin out customized
Cable length customized
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Warranty 1 year


The end of J1939 female and male plugs can be overmolded or not, according to your needs.

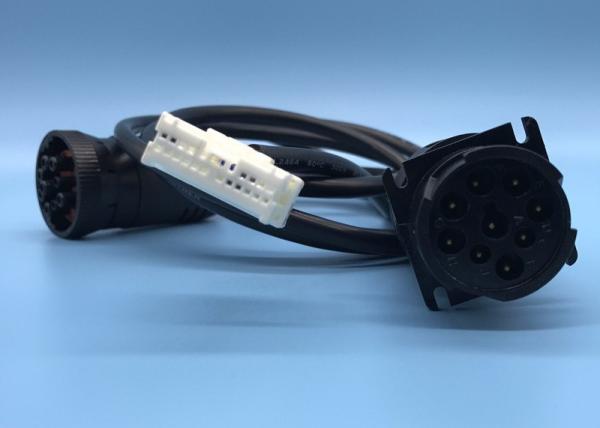

Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable

Overmolded

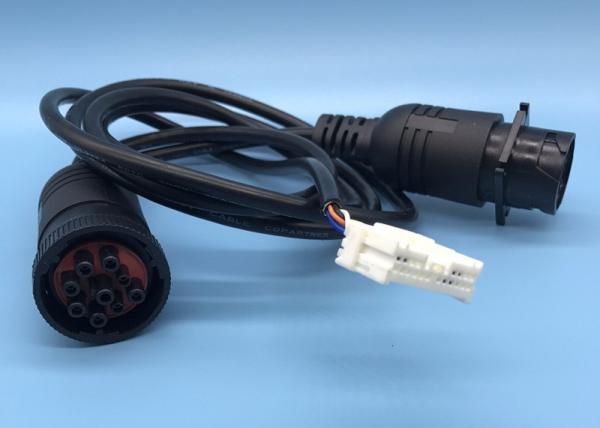

Deutsch 9-Pin J1939 Female to Yazaki 20 Pin Female and J1939 Male Splitter Y Cable

Not overmolded

The Deutsch 9 Pin J1939 male plug is Type 1, so its Pin F is with bigger diameter. Type 1 J1939 male connectors can be compatible with Type 1 or Type 2 J1939 female connectors.


Pin assignment or pin out

The pin assignment or pin out can be customized according to your needs.



Application


This is a cable between a J1939 Deutsch 9-pin female connector, a J1939 Deutsch 9 pin male connector and a Yazaki 20 Pin Female connector.

The common application is to connect telematics or fleet management devices to heavy duty commercial vehicles that have the 9-pin Deutsch ports. The Deutsch 9 pin J1939 male connector on the cable can also be connected to an ELD.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.

Skype: orchard.guo (any time to contact)
