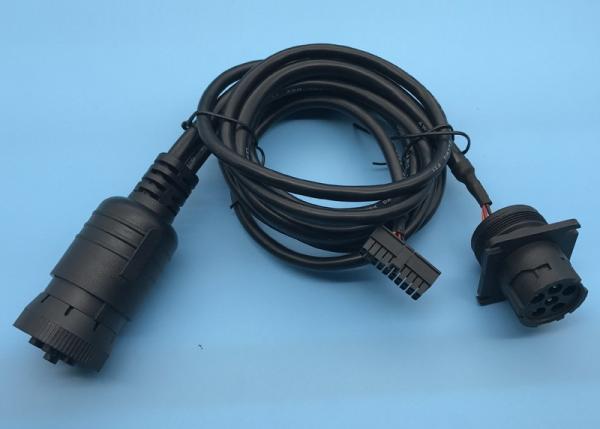

Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable
Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable
Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable
Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable
Specifications
Brand Name :
OEM
Model Number :
J1708
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
20AWG, pure copper
J1708 female plug :
equivalent of Deutsch HD16-6-12S-B010
J1708 male plug :
equivalent of Deutsch HD10-6-12P
Molex 20P Female connector :
equivalent of 43025-2000
Contact Resistance :
3 ohm max.
Insulation Resistance :
5M ohm min.
Description

Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable


Specification

J1708 female connector equivalent of Deutsch HD16-6-12S-B010
J1708 male connector equivalent of Deutsch HD10-6-12P
Molex 20P Female connector equivalent of 43025-2000
Wire 20AWG, pure copper
Material of J1708 connectors PA66 + glass fiber
Material of Molex connector PA66
Pin assignment or pin out customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and mis-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year


The end of J1708 female and male plugs can be overmolded or not, according to your needs.

Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable

Overmolded

Deutsch 6 Pin J1708 Female to Molex 20 Pin Female and J1708 Male Splitter Y Cable

Not overmolded


Pin assignment or pin out

The pin assignment or pin out can be customized according to your needs.



Application

The common application is to connect telematics, fleet management or trucking devices to older 6 pin round diagnostic port in medium and heavy duty vehicles model years from the early-to-mid-2000s. Some telematics, fleet management or trucking devices have the Molex 20 Pin male ports, so Molex 20P female connector on this cable is needed.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
