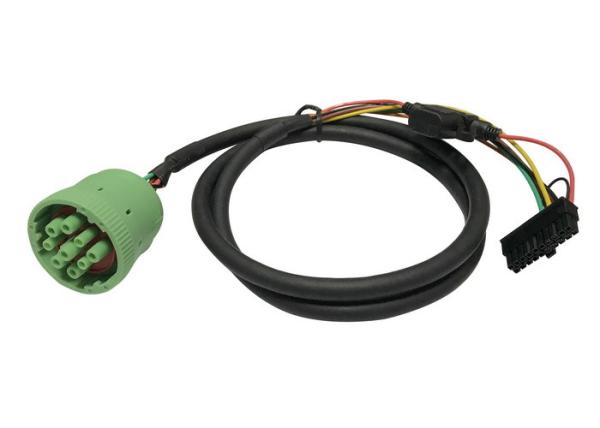

Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse
Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse
Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse
Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse
Specifications
Brand Name :
OEM
Model Number :
J1939
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
20AWG, pure copper
Pin assignment or pin out :
customized
J1939 female plug :
equivalent of Deutsch HD16-9-1939S-P080
Type of J1939 female plug :
Type 2
Molex 20 Pin Female plug :
equivalent of 43025-2000
Fuse :
3A
Description

Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse


Specification

J1939 female plug equivalent of Deutsch HD16-9-1939S-P080
Type of J1939 female plug Type 2
Color of J1939 female plug Green
Molex 20 Pin Female plug equivalent of 43025-2000
Fuse 32V 3A, with overmold fuse holder
Wire 20AWG, pure copper
Material of J1939 plug PA66 + glass fiber
Material of Molex plug PA66
Pin assignment or pin out customized
Cable length customized
Warranty 1 year


The J1939 Deutsch 9-Pin female plug is Type 2, so its Pin F is with smalller diameter like Pin C and J. Type 2 J1939 Deutsch 9-Pin female plugs can be compatible with Type 1 or Type 2 J1939 Deutsch 9-Pin male plugs.

Green J1939 Deutsch 9 Pin Female to Molex 20 Pin Female Cable with Fuse

The J1939 Deutsch 9-Pin female plug is green. The end of J1939 Deutsch 9-Pin female plug can be overmolded or not.


Pin assignment or pin out

The pin assignment or pin out can be customized according to your needs.


Application

This is a cable between the J1939 round Deutsch 9-pin female connector (test equipment side - mates to the J1939 vehicle) and a Molex 20-pin female connector.

The common application of this cable is to connect telematics or fleet management devices to trucks with J1939 9 pin port.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
