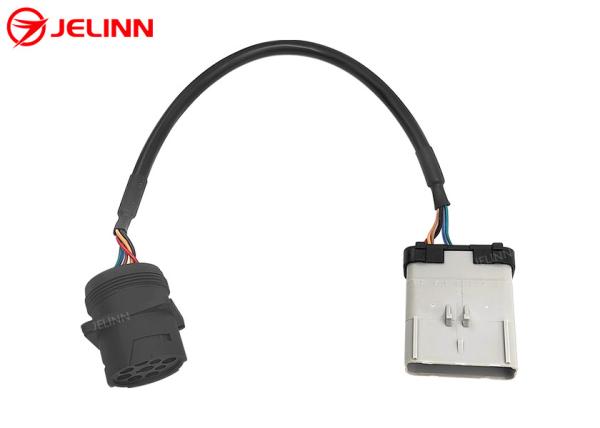

14 Pin RP1226 Male To Black Type 1 SAE Deutsch 9 Pin J1939 Female Truck ELD Cable


Specification

Pinout (wiring diagram)

Generally speaking, the pinout (wiring diagram) can be as below.
4 pins of each connector are wired. There are 4 wires of 20AWG in the cable.

Sometimes, the pinout (wiring diagram) can also be as below.
6 pins of each connector are wired. There are 6 wires of 20AWG in the cable.

The pinout (wiring diagram) can also be customized according to customers' needs.


Application

According to TMC (the ATA's Technology and Maintenance Council) Recommended Practice RP1226 Messaging Standardization, some 2019 and newer heavy trucks such as Kenworth, Peterbilt, Volvo, Mack and Freightliner in North America are equipped with an Accessory Connector in the cab on the driver’s side behind dash, near the fuse panel. The truck owner can check the Body Builder Manual for more information.

ELD (Electronic Logging Devices), telematics devices or other aftermarket devices that require data from J1939, CAN or J1708 should be connected to this RP1226 Accessory Connector. Otherwise, the connections may not be warrantable.

If an device which has a 9-pin J1939 port is needed to be connect to a truck equipped with 14-pin RP1226 Accessory Connector, this cable is needed.
