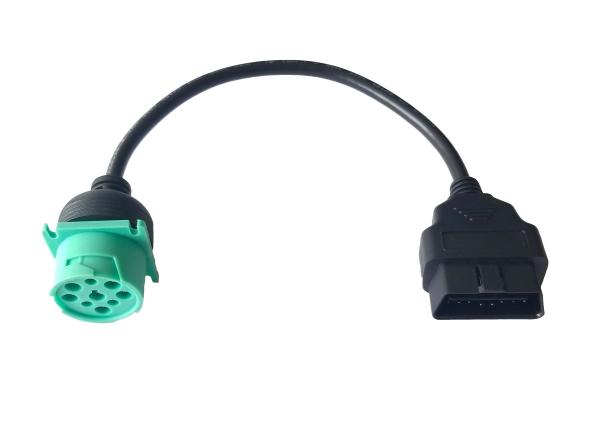

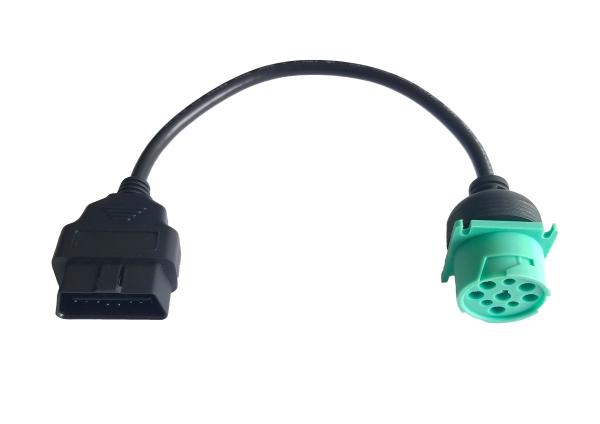

Green Deutsch 9 Pin J1939 Male to 16 Pin J1962 OBD OBD-II Male CAN Bus Cable


Specification

The end of Deutsch 9-Pin J1939 male connector can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.

The Deutsch 9 Pin male connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J.


Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins connected):

Sometimes, the pin assignment or pin out can also be like this (6 pins connected):

The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the cable will be higher because the raw material and labour cost will be higher.


Application

This cable will connect the 8 or 9 Pin type 2 devices such as ELDs (Electronic Logging Devices) to the 16 Pin OBD2 style diagnostic port found on Volvo and Mack trucks post 2013 that have the OBD-II 16 pin port in dash.

If you have a device that is designed to plug into the round Green 9 pin diagnostics ports on heavy trucks, this cable will work for you to connect that device to 16 pin OBD2 type connector found in 2013 and newer Volvo and Mack trucks.

You can connect 16 pin OBD2 male plug of this cable into your truck's 16 pin diagnostics port. The green 9 pin on other end will then accept some ELDs that have the round 8 OR 9 position plugs.

This adapter cable also allows a J1939 Scan Tool (a scanner designed to plug into the round J1939 9-pin Deutch connector on a vehicle) to be used with a J1939 equipped vehicle that uses a standard OBD2 style connector.
