Quick Details:

• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction works
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Turkey
• Showroom Location: None
• Video outgoing-inspection: Provided
• Machinery Test Report: Provided
• Marketing Type: Hot Product 2019
• Warranty of core components:1 Year
• Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
• Condition: New
• Automatic Grade: Automatic
• Place of Origin: Jiangsu, China
• Voltage: 380V/50Hz
• Power: 28kw
• Dimension(L*W*H):6800* 4080 *2850mm
• Weight: 5300kg
• Certification: ISO CE
• Warranty:1 Year
• After-sales Service Provided: Video technical support, Online support, Field installation, comm

Feature:

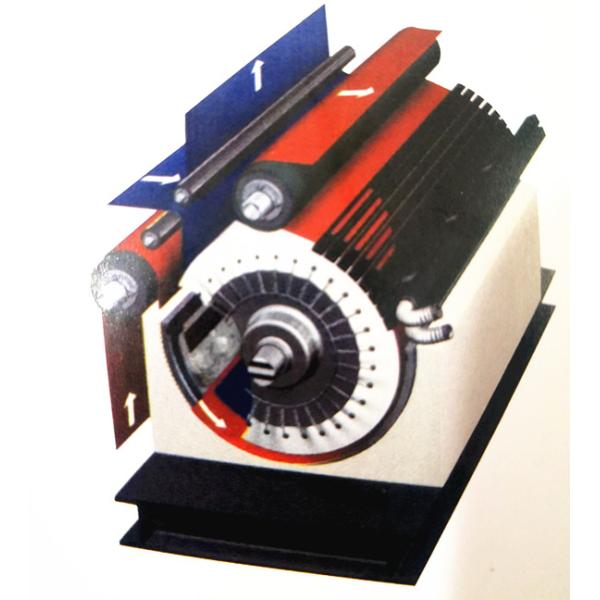

The entire process is continuous,full automatic, the fabric in the non-stop operation steamed done, so its efficiency is much higher than the traditional decatizer.

Advantage:

1.Using the most advanced touch screen and PLC control, the cloth feeding, tension, deviation, steam, steam exhausting amount, cloth and other actions are carried out automatically, greatly reduce the labor intensity of workers, improve product reproducibility.

2.After finishing the fabric quality, no end difference.

3.Working efficiency of 30 m / min.

4.After steaming, the fabric size is stable, the fabric surface quality and feel better.

5.The electric proportional valve is used to control the intake air, and the air cooling machine adopts frequency conversion control, which can conveniently adjust the steam and pumping intensity to ensure the fabric steaming.

6.The tension of the felt sleeve is controlled by two frequency inverters to ensure the tension is uniform and can be adjusted.

7.Seamless extra thick felt cover, to ensure that the felt sets can have a higher life expectancy.

8.Feeding device can be added at the end, which is more suitable for light type products

Technical Data:

1. Working width 1800mm~2300mm

2. Steam roller width 1900mm~2430mm

3. Steam roller Dia. 1400m

4. Fabric inlet speed 0~30m/min

5. Total capacity 45KW

6. steam pressure 4~6bar

7. steam consumption 60~70kg/h

8. air pressure 6bar

9. machine size L*W*H 5270* 4230 *2270mm

10. Weight: about 5500kg

After-sales Service

1.Provide training to operators for free.

2.Provide one year warranty for key components.

3.Lifetime paid maintenance.

Detailed reference contract.

Guarantee time:

We´ll take full responsibilities, if you find any quality problem within 30days after the goods arrive at the destination port and your usage of machine is within the correct using scope.

Why Choose Us

1.Experienced and Professional scarf machinery manufacturer over 20 years
2. Strict quality control, professional service,honest communication and R&D team

3.Wide range scarf machinery, timely shipment. Drop shipping available
4. OEM available, A trial order or sample orders are accepted
5. 24 hours email reply pre and after sale service support.
