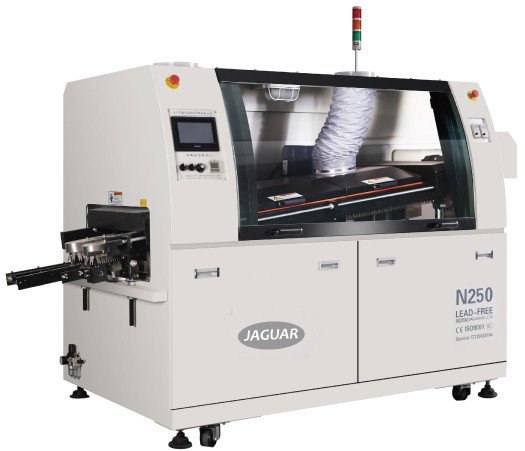

Front Panel Controlled lead-free dual wave soldering machine

economical wave solder/DIP insert line machine for pcb soldering

Specification:

Model No. JAGUAR N250
Number of Pre-heaters 2
Pre-heater passage 600mm
Body size 1800(L)*1200(W)*1600(H)
Outside dimension 2600(L)*1200(W)*1600(H)
Weight 700KG
Total/steady consumption 11KW/4-6KW
Air supply 0.5MPa
Preheating style Hot air
Preheater consumption 220V 5KW
Control method Press key +PLC (Option: touch screen, PC)
Range of temp. set-point Room temperature---300℃
Preheating time About 10-15mins for setting 150℃
Solder application Lead-free / Sn-Pb
Solder pot capacity 220KG
Solder pot temperature 300℃
Solder pot consumption 380V 6KW
Solder temp. control method PID&SSR
Wave motor power 500W 220V
Solder melting About 120mins for setting 250℃
PCB width 50-250mm
Conveyor speed 0-1800mm/min
Conveyor direction L→R (R→L optional)
Conveyor Inclination 4—7 º
Flux pressure 3-5 bar
Flux capacity 3.2L

INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.

2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

6. Special alloy solder fingers, strengthened double v-groove.

7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

10.Timer startup feature for solder pot, solder melted within 90 minutes.

11. Automatic finger cleaner ensure the cleanliness of solder fingers.

Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
