Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W
Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W
Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W
Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W
Specifications
Brand Name :
NENGXUN
Model Number :
NXPA500-2000MHz-20W
Place of Origin :
CHINA
MOQ :
1
Price :
The price is negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
5-8DAYS
Packaging Details :
25.6*111.7*17MM
Frequency :
NXPA500-2000MHz-20W
Dimensions(mm)/Weight :
174.6×77.8×26.5mm (without connectors), ≤520g
Max output Power (CW) :
≥ 43dBm
Temperature protection :
Over 80℃ protection，with open circuit protection
Description

NXPA500-2000MHz-20W

  • Small size, Low power consumption, good stability;
  • High linearity and Intermodulation;
  • Shape structure can be customized
  • Products can be developed according specification;
  • Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W

Parameters
Frequency

500MHz~2000MHz
Max output Power (CW) ≥ 43dBm
Gain ≥ 43dB (customized)
Gain Flatness ≤ 2±1dB
Input VSWR ≤ 1.8
Input power 2±2dBm
Max Input +6dBm
Temperature protection Over 80℃ protection,with open circuit protection
PTT port Default off; 3.3~5V on
VCC/Current reference 28V/4A
Working voltage +28V
Working current ≤ 2.8A
Spurious ≤ -65dBc
Harmonic ≤ -11dBc
Operating Temperature -40℃~+55℃
RF Connector SMA-F
Power Supply Interface feedthru capacitor
Dimensions(mm)/Weight 174.6×77.8×26.5mm (without connectors), ≤520g
Installation method Radiator shall be installed for power amplifier test
Package 1pcs/box

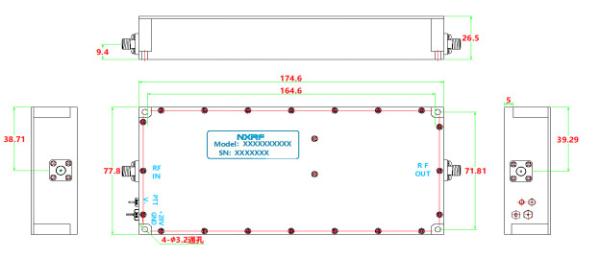

Outline Drawing

Anti Drone RF Power Amplifier Module NXPA500 2000MHz 20W

Support and Services:

RF Power Amplifier Technical Support and Services
  • Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
  • Provide troubleshooting and repair services.
  • Provide replacement parts and components.
  • Answer customer inquiries and provide product information.
  • Provide technical training for customers.
  • Provide warranty service.
