5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz
5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz
5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz
5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz
Specifications
Brand Name :
NENGXUN
Model Number :
NXPA 1.5MHz~200MHz 5W
Place of Origin :
CHINA
MOQ :
1
Price :
The price is negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
5-8DAYS
Packaging Details :
25.6*111.7*17MM
Frequency :
1.5MHz~30MHz
Max output Power (CW) :
≥ 37dBm
Dimensions(mm)/Weight :
126*47.5*23mm (without connectors), ≤230g
Installation method :
Radiator shall be installed for power amplifier test
Description

PN:NXPA1.5-200MHz-5W

  • Small size, Low power consumption, good stability;
  • High linearity and Intermodulation;
  • Shape structure can be customized
  • Products can be developed according specification;
  • Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz

Technical Data

Parameters
Frequency

1.5MHz~200MHz
Max output Power (CW) ≥ 37dBm
Gain ≥ 37dB (customized)
Gain Flatness ≤ 1±1dB
Input VSWR ≤ 1.6
Input power 0±2dBm
Max Input +6dBm
Temperature protection Over 80℃ protection,with open circuit protection
PTT port Default off; 3.3~5V on
VCC/Current reference 28V/3A
Working voltage +28V~ +32V
Working current ≤ 1-2A
Spurious ≤ -65dBc
Harmonic ≤ -10dBc
Operating Temperature -30℃~+55℃
RF Connector SMA-F
Power Supply Interface feedthru capacitor
Dimensions(mm)/Weight 126*47.5*23mm (without connectors), ≤230g
Installation method Radiator shall be installed for power amplifier test
Package 1pcs/box

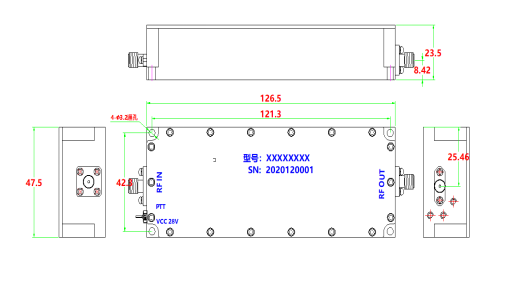

Outline Drawing

5W Communication Radar RF Rf Connectorized Module Jamming NXPA 1.5MHz-200MHz

Support and Services:

RF Power Amplifier Technical Support and Services
  • Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
  • Provide troubleshooting and repair services.
  • Provide replacement parts and components.
  • Answer customer inquiries and provide product information.
  • Provide technical training for customers.
  • Provide warranty service.
