NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System
NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System
NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System
NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System
Specifications
Brand Name :
NENGXUN
Model Number :
NXPA500-3000MHz-100W
Place of Origin :
CHINA
MOQ :
1
Price :
The price is negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
5-8DAYS
Packaging Details :
25.6*111.7*17MM
Frequency :
NXPA500-3000MHz-100W
Dimensions(mm)/Weight :
238×128×26.5mm (without connectors), ≤2KG
Max output Power (CW) :
≥ 50dBm
Temperature protection :
Over 80℃ protection，with open circuit protection
Description

PN:NXPA500-3000MHz-100W

  • Small size, Low power consumption, good stability;
  • High linearity and Intermodulation;
  • Shape structure can be customized
  • Products can be developed according specification;
  • Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System

(
Parameters
Frequency

500MHz~3000MHz
Max output Power (CW) ≥ 50dBm
Gain ≥ 49dB (customized)
Gain Flatness ≤ 3±1dB
Input VSWR ≤ 1.8
Input power 2±2dBm
Max Input +6dBm
Temperature protection Over 80℃ protection,with open circuit protection
PTT port Default off; 3.3~5V on
VCC/Current reference 32V/16A
Working voltage +32V
Working current ≤ 11-13A
Spurious ≤ -65dBc
Harmonic ≤ -11dBc
Operating Temperature -40℃~+55℃
RF Connector RFinSMA-F/ RFout- SMA-F
Power Supply Interface 5557-4.2mm power-6
Dimensions(mm)/Weight 238×128×26.5mm (without connectors), ≤2KG
Installation method Radiator shall be installed for power amplifier test
Package 1pcs/box

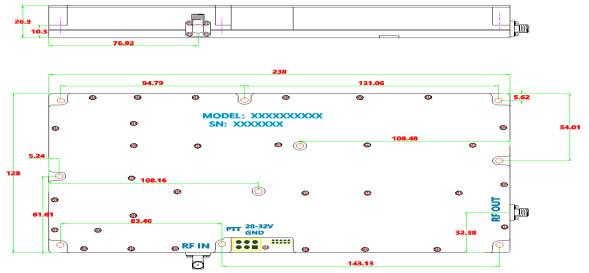

Outline Drawing

NXPA500-3000MHz 100W Vhf RF Amplifier Jammer Module For Communication Radar System

Support and Services:

RF Power Amplifier Technical Support and Services
  • Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
  • Provide troubleshooting and repair services.
  • Provide replacement parts and components.
  • Answer customer inquiries and provide product information.
  • Provide technical training for customers.
  • Provide warranty service.
