Specifications
Brand Name :
nengxun
Model Number :
NX-GR100
Place of Origin :
CHINA
MOQ :
1
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcsmonthly
Delivery Time :
5-7days
Frequency :
Customized
Material: :
Exterior Aluminum Alloy Shell
Power: :
5W 10W 20W 40W 50W 100W
Warranty: :
1 Year
Certificate: :
CE FCC SGS
High Light: :
Customized RF Power Amplifier, 5.2G RF Power Amplifier, Anti Drone RF Power Module
Description

We offer the customized frequency & output power as customer need

for the anti drone UAV signal jammer module

* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.

* You could check below customized frequency and output for your reference, and tell our sales person

the items you want, we will quote you the price details and the exact data immediately.

10W Interference Power Amplifier Technical Data Sheet

一. Radio Frequency Index

Test item Technical parameters Unit Remark

Frequency Range

420-5850

MHz

Customized Frequency
Operating Voltage 28 V 28-32V
Maximum Power Output 40±0.5 dBm 10W@≤1A
Gain 35±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value

Spurious Emission

Operating In-band

 ≤-15dBm/1MHz

dBm

 Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz～1GHz

No noise wave above normal base

 dBm
1G～12.75GHz dBm

Output VSWR

 ≤1.30 No power up:Standard Grid Output -10dBm
≤1.30 Power up:Dual Directional Coupler Test

high-low

temperature test

Operating Ambient

Temperature

 -10～+55 ℃ Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥2A@+28Vdc；

Continuous Wave Output

10W
Power Supply Port

Power Cable:Red

positive Black negative

 Red positive Black negative
RF Output Connector SMA SMA External Screw Base

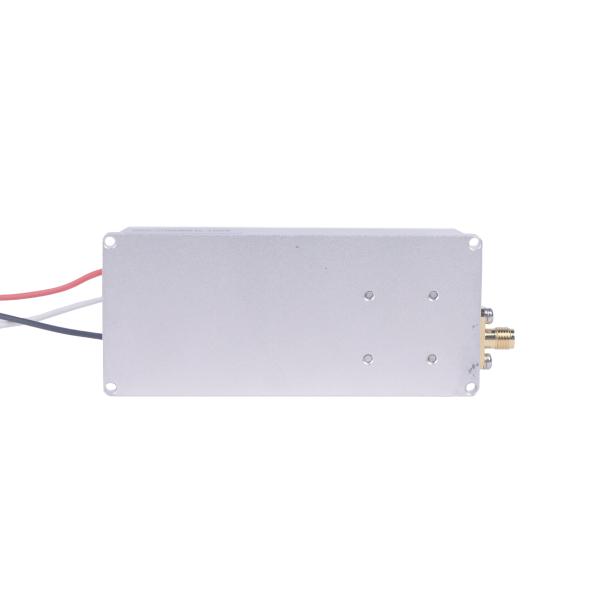

二. Appearance

1 ,Appearance Dimensions: 25.6*111.7*17mm3

2 ,Model Screen Name: Model Number:SJM Center Frequency-SMA01

Model Number Frequency (MHZ) Power (dBm) Current (A) Voltage (V)

Dimensions

(mm)

 Weight (kg)
SJM500- SMA01 420-580 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM800- SMA02 720-820 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM900- SMA03 850-930 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM1000- SMA04 970-1100 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM1200- SMA05 1170-1280 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM1600- SMA06 1550-1620 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM2400- SMA07 2400-2500 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM5200- SMA08 5150-5350 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM5500- SMA09 5400-5700 40±1 ≤1 28-32 25.6*111.7 *17 0.1382
SJM5800- SMA10 5725-5850 40±1 ≤1 28-32 25.6*111.7 *17 0.1382

Sheet 1 10W-DataSheet

20W Interference Power Amplifier Technical Data Sheet

一. Radio Frequency Index

Test item Technical parameters Unit Remark

Frequency Range

420-5850

MHz

Customized Frequency
Operating Voltage 28 V 28-32V
Maximum Power Output 43±0.5 dBm 20W@≤1.8A
Gain 38±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value

Spurious Emission

Operating In-band

 ≤-15dBm/1MHz

dBm

 Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz～1GHz

No noise wave above normal base

 dBm
1G～12.75GHz dBm

Output VSWR

 ≤1.30 No power up:Standard Grid Output -10dBm
≤1.30 Power up:Dual Directional Coupler Test

high-low

temperature test

Operating Ambient

Temperature

 -10～+55 ℃ Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥2A@+28Vdc；

Continuous Wave Output

20W
Power Supply Port

Power Cable:Red

positive Black negative

 Red positive Black negative
RF Output Connector SMA SMA External Screw Base

二. Appearance

1 ,Appearance Dimensions: 25.6*111.7*17mm3

2 ,Model Screen Name: Model Number:SJM Center Frequency-SMB01

Model Number Frequency (MHZ) Power (dBm) Current (A) Voltage (V)

Dimensions

(mm)

 Weight (kg)
SJM500- SMB01 420-580 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM800- SMB02 720-820 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM900- SMB03 850-930 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM1000- SMB04 970-1100 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM1200- SMB05 1170-1280 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM1600- SMB06 1550-1620 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM2400- SMB07 2400-2500 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM5200- SMB08 5150-5350 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM5500- SMB09 5400-5700 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996
SJM5800- SMB10 5725-5850 43±1 ≤1.8 28-32 25.6*111.7 *17 0.0996

Sheet 2 20W-DataSheet

30W Interference Power Amplifier Technical Data Sheet

一. Radio Frequency Index

Test item Technical parameters Unit Remark

Frequency Range

420-5850

MHz

Customized Frequency
Operating Voltage 28 V 28-32V
Maximum Power Output 45±0.5/44±0.5 dBm 30W@≤2. 1A
Gain 40±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value

Spurious Emission

Operating In-band

 ≤-15dBm/1MHz

dBm

 Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz～1GHz

No noise wave above normal base

 dBm
1G～12.75GHz dBm

Output VSWR

 ≤1.30 No power up:Standard Grid Output -10dBm
≤1.30 Power up:Dual Directional Coupler Test

high-low

temperature test

Operating Ambient

Temperature

 -10～+55 ℃ Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥3A@+28Vdc；

Continuous Wave Output

30W/25W
Power Supply Port

Power Cable:Red

positive Black negative

 Red positive Black negative
RF Output Connector SMA SMA External Screw Base

二. Appearance

1 ,Appearance Dimensions:Regular Frequency 60*150*21.5mm3

2 ,Model Screen Name: Model Number:SJM CenterFrequency-SMC01

Model Number Frequency (MHZ) Power (dBm) Current (A) Voltage (V)

Dimensions

(mm)

 Weight (kg)
SJM500-SMC01 420-580 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM800-SMC02 720-820 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM900-SMC03 850-930 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM1000-SMC04 970-1100 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM1200-SMC05 1170-1280 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM1600-SMC06 1550-1620 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM2400-SMC07 2400-2500 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM5200-SMC08 5150-5350 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM5500-SMC09 5400-5700 45±1 ≤2.1 28-32 60*150*21.5 0.1603
SJM5800-SMC10 5725-5850 45±1 ≤2.1 28-32 60*150*21.5 0.1603

Sheet 3 30W-Data Sheet

50W Interference Power Amplifier Technical Data Sheet

一. Radio Frequency Index

Test item Technical parameters Unit Remark

Frequency Range

420-5850

MHz

Customized Frequency
Operating Voltage 28 V 28-32V
Maximum Power Output 47±0.5 dBm 50W@≤3.5A
Gain 42±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value

Spurious Emission

Operating In-band

 ≤-15dBm/1MHz

dBm

 Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz～1GHz

No noise wave above normal base

 dBm
1G～12.75GHz dBm

Output VSWR

 ≤1.30 No power up:Standard Grid Output -10dBm
≤1.30 Power up:Dual Directional Coupler Test

high-low

temperature test

Operating Ambient

Temperature

 -10～+55 ℃ Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥4A@+28Vdc；

Continuous Wave Output

50W
Power Supply Port

Power Cable:Red

positive Black negative

 Red positive Black negative
RF Output Connector SMA SMA External Screw Base

二. Appearance

1 ,Appearance Dimensions:Regular Frequency 60*150*21.5mm3

2 ,Model Screen Name: Model Number:SJM Center Frequency-SMD01

Model Number Frequency (MHZ) Power (dBm) Current (A) Voltage (V)

Dimensions

(mm)

 Weight (kg)
SJM420-SMD01 420-450 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM800-SMD02 720-840 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM900-SMD03 850-930 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM1000-SMD04 970-1100 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM1200-SMD05 1170-1280 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM1600-SMD06 1550-1620 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM2400-SMD07 2400-2500 47±1 ≤3.5 28-32 60*150*21.5 0.1574
SJM5200-SMD08 5150-5350 47±1 ≤4.0 28-32 60*150*21.5 0.1574
SJM5500-SMD09 5400-5700 47±1 ≤4.0 28-32 60*150*21.5 0.1574
SJM5800-SMD10 5725-5850 47±1 ≤4.0 28-32 60*150*21.5 0.1574

Sheet 4 50W-DataSheet

100W Interference Power Amplifier Technical Data Sheet

一. Radio Frequency Index

Test item Technical parameters Unit Remark

Frequency Range

420-5850

MHz

Customized Frequency
Operating Voltage 28 V 28-32V
Maximum Power Output 50±0.5 dBm 100W@≤7A
Gain 45±1 dB peak-to-peak value
In-band fluctuation ≤2 dB peak-to-peak value

Spurious Emission

Operating In-band

 ≤-15dBm/1MHz

dBm

 Center Frequency add CW Signal to Maximum Power Output Test
Operating Out-of-ba nd 9KHz～1GHz

No noise wave above normal base

 dBm
1G～12.75GHz dBm

Output VSWR

 ≤1.30 No power up:Standard Grid Output -10dBm
≤1.30 Power up:Dual Directional Coupler Test

high-low

temperature test

Operating Ambient

Temperature

 -10～+55 ℃ Cold Start
Gain Stability ±1.5 @-40℃~+55℃ dB
Power Stability ±1 @-40℃~+55℃ dB
Power Supply Requirement ≥8A@+28Vdc；

Continuous Wave Output

100W
Power Supply Port

Power Cable:Red

positive Black negative

 Red positive Black negative
RF Output Connector SMA SMA External Screw Base

二. Appearance

1 ,Appearance Dimensions:Regular Frequency:94*170*27mm3

2 ,Model Screen Name: Model Number:SJM CenterFrequency-SME01

Model Number Frequency (MHZ) Power (dBm) Current (A) Voltage (V)

Dimensions

(mm)

 Weight (kg)
SJM420- SME01 420-450 50±1 ≤7 32-36 94*170*27 0.8
SJM800- SME02 720-800 50±1 ≤7 32-36 94*170*27 0.8
SJM900- SME03 830-930 50±1 ≤7 32-36 94*170*27 0.8
SJM1000- SME04 900-1000 50±1 ≤7 32-36 94*170*27 0.8
SJM1200- SME05 1170-1280 50±1 ≤7 32-36 94*170*27 0.8
SJM1600- SME06 1550-1620 50±1 ≤7 32-36 94*170*27 0.8
SJM2400- SME07 2400-2500 50±1 ≤7 32-36 94*170*27 0.8
SJM3500- SME08 3400-3600 50±1 ≤7 32-36 94*170*27 0.8
SJM5500- SME09 5400-5700 50±1 ≤7 32-36 94*170*27 0.8
SJM5800- SME10 5700-5900 50±1 ≤7 32-36 94*170*27 0.8

Sheet 4 100W-DataSheet

433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module

433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module

Send your message to this supplier
Send Now

433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module

Ask Latest Price
Product Detail
Brand Name :
nengxun
Model Number :
NX-GR100
Place of Origin :
CHINA
MOQ :
1
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Supplier
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module

Nengxun Communication Technology Co.,Ltd.

Verified Supplier
1 Years
guangdong, shenzhen
Since 2009
Main Products :
10W Anti Drone Module LDMOS, Anti Drone Module GaN, 20W Anti Drone Module GaN
Total Annual :
10000000-20000000
Employee Number :
50~100
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Anti Drone Module GaN
MachineU China Products Consumer Electronic Camera, Photo & Accessories Drones Accessories
Contact Supplier
Submit Requirement
