250W Integration RF Power Amplifier PA1.6-500MHz for EMC Testing Signal Amplification Input port standing wave ≤2.0
250W Integration RF Power Amplifier PA1.6-500MHz for EMC Testing Signal Amplification Input port standing wave ≤2.0
250W Integration RF Power Amplifier PA1.6-500MHz for EMC Testing Signal Amplification Input port standing wave ≤2.0
250W Integration RF Power Amplifier PA1.6-500MHz for EMC Testing Signal Amplification Input port standing wave ≤2.0
Specifications
Brand Name :
NENGXUN
Model Number :
NX-PA1.6-500
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000
Delivery Time :
7days
Packaging Details :
≤210*101*28.5 Unit: mm
Operating frequency :
50MHz~1000MHz
Gain :
≥53dB
Input power :
+10dBm
In-band gain flatness :
≤3±0.5dB
Temperature protection :
80 degrees protection
Input port standing wave :
≤2.0
Clutter rejection :
≥65dBc
Harmonic suppression :
≥10dBc
RF input interface :
N-K
RF output interface :
N-K
Working voltage :
220V
Overall dimension without joint :
≤458*420*118Unit: mm
Operating temperature :
-25C~+55C
Protection function :
Open circuit protection, high temperature protection
Description

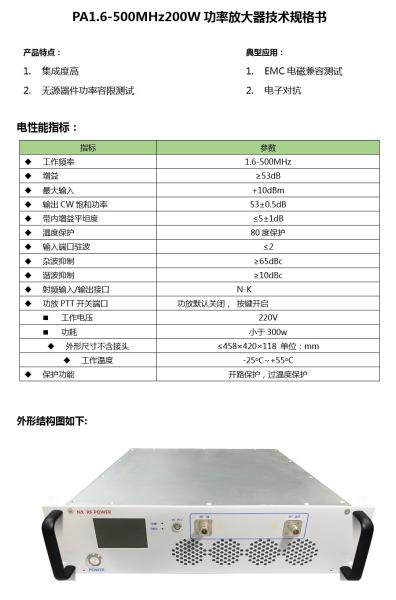

PA1.6-500MHz 200W RF Power Amplifier – High-Integration Device for EMC Testing & Signal Amplification

Product Description
This PA50-1000MHz 250W RF Power Amplifier is engineered for professional signal amplification, combining high performance with robust functionality.

Key Features

  • High Integration: Compact structure ensures seamless integration into various systems.
  • Testing Capability: Supports power tolerance testing for passive components, catering to precise measurement needs.

Electrical Performance

  • Frequency & Power: Operates across 1.6-500MHz, delivering ≥200W output CW saturation power. Achieves ≥53dB gain with 53±0.5dBm input power.
  • Signal Stability: Maintains ≤3±1dB in-band gain flatness and ≤2.0 input voltage standing wave ratio (VSWR) for consistent signal amplification.
  • Interference Control: Provides ≥65dBc spurious suppression and ≥-13dBc harmonic suppression, ensuring clean signal output.
  • Protection & Power: Equipped with 80℃ temperature protection and 28-32V/16A power supply (max +33V) for reliable operation.

Applications

Perfect for EMC electromagnetic compatibility testing and electronic countermeasures. With a -25℃~+55℃ working temperature range, compact dimensions (≤458*420*118 mm), and a requirement for heat sink installation during testing, it adapts to industrial, research, and professional scenarios.
