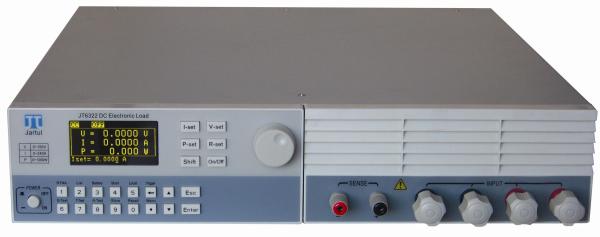

JT6326A 1500W/150V/240A D Electronic Load,. power supply test. battery test.led power supply test.fuel cell
JT6326A 1500W/150V/240A D Electronic Load,. power supply test. battery test.led power supply test.fuel cell
Specifications
Brand Name :
Jartul
Model Number :
JT6326A
Certification :
CE
Place of Origin :
nanjing,china
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
80pcs/month
Delivery Time :
3 days
Packaging Details :
1pc per carton
Description
Model JT6326A
Input Rating Power 1500W
Voltage 0~15V 0~150V
Current 0~24A 0~240A
Min. operating voltage 1.4V@240A
CC Mode Range 0~24A 0~240A
Resolution 0.5mA 5mA
Accuracy 0.03%+0.05%FS
CV Mode Range 0~15V 0~150V
Resolution 0.2mV 2mV
Accuracy 0.03%+0.03%FS
CP Mode Range 1500W
Resolution 16Bits
Accuracy 0.1%+0.1%FS
CR Mode Range 0.006Ω~25KΩ
Resolution 16Bits
Accuracy (0.1+0.08R)%
LED Mode Bandwidth 100kHz above
Rd Coefficient Range 0.001~1
Dynamic Operation Mode Range 10uS~50S
Resolution 2uS
Accuracy 1uS+20PPM
Slew rate 2.4A/mS~4.8A/uS
Voltage Meas. Range 0~15V 0~150V
Resolution 0.1mV 1mV
Accuracy 0.02%+0.03%FS
Current Meas. Range 0~24A 0~240A
Resolution 0.1mA 1mA
Accuracy 0.03%+0.05%FS
Ripple Meas. Range 0~15V 0~150V
Bandwidth 10Hz~100kHz
Accuracy 1mV 10mV
