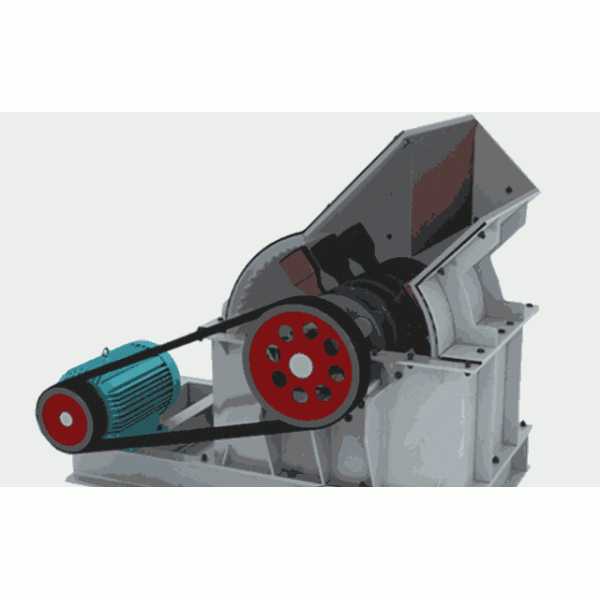

PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
Specifications
Brand Name :
Shanghai banghuai Heavy Industry Machinery Co., Ltd
Model Number :
hummer crusher PC300×400
Certification :
ISO9001
Place of Origin :
shanghai
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Model :
PC300×400
type :
hummer crusher
Rotor spec /mm :
400x300
Max Feeding Size/mm :
≤200
Finished particle size/mm :
＜25
Capacity (t/h) :
5-10
Power/Kw :
11
applicable :
glass breaking recycling.etc
Description

Product description

PC300×400 glass recycling crusher glass crusher

1, Description

1.Hammer crusher is a kind of equipment that crushes materials in the form of impact. It is a one-stage crusher that directly crushes the material with the largest particle size to below 25 or 25 mm.

2.Hammer crusher is suitable for crushing medium hardness materials, such as limestone, slag, coke, coal and other materials in the glass crusher ,cement, chemical, electric power, metallurgy and other industrial sectors for medium and fine crushing operations.

2, Technical Parameters

Model Rotor spec /mm Max Feeding Size/mm Finished particle size/mm Capacity (t/h) Power/Kw Dimensions(mm)
PC400x300 400x300 ≤200 ≤25 5-10 11 900×670×860
PC600x400 600x400 ≤250 ≤30 10-22 22 1200×1050×1200
PC800x600 800x600 ≤250 ≤35 18-40 55 1310×1180×1310
PC1000x800 1000x800 ≤350 ≤35 25-50 75 1600×1390×1575
PC1000x1000 1000x1000 ≤350 ≤35 30-55 90 1800×1590×1775

3, Product advantages

(1) The working hammer head is cast by new technology, which is wear-resistant and impact-resistant.
(2)According to customer requirements, adjust the required granularity.
(3) The structure of the hammer crusher is sealed, which solves the problem of dust pollution and ash leakage in the crushing workshop.
(4) The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
(5)Compact structure, beautiful appearance, good wear resistance and easy maintenance.

4, Working principle

1.Hammer crushers mainly rely on impact energy to complete the operation of crushing materials. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the material enters the crusher cavity evenly.
2.The high-speed rotating hammer head rushes to the baffle plate and sieve bar in the frame, and the material larger than the sieve hole size is blocked on the sieve plate and continues to be hit and ground by the hammer until it is crushed to the required discharge particle size and finally discharged out of the machine through the sieve plate .

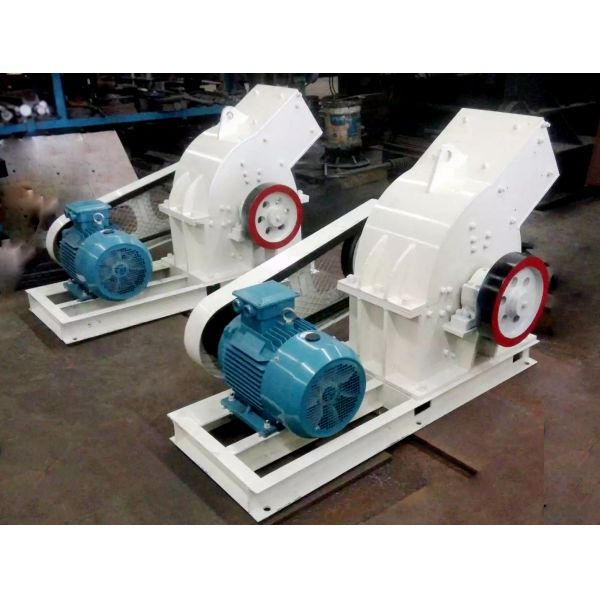

5, Factory manufacturing

PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw

PC300 × 400 Hammer Crusher For Glass Breaking Recycling11kw
