Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
Specifications
Brand Name :
ZR
Model Number :
PTY
Place of Origin :
Shanghai, China
MOQ :
1 Piece
Price :
Price Negotiable
Payment Terms :
T/T
Supply Ability :
1000PCS/Year
Delivery Time :
30 Days
Packaging Details :
Nude Cargo/Pallet/Wooden Case
Type :
Cone Crusher
Motor Type :
AC Motor
Motor Power :
220kw
Application :
Mine,Railway,Chemistry,Quarry
Materials :
River Pebble, Marble, Basalt, Granite, Limestone
Other Material :
Gold Mine, Iron Ore, Copper Mine, Manganese Mine
Feeding Size :
0-460mm
Discharge Range :
0-64mm
Condition :
New
Crushing Capacity :
0-1361t/h
HS Code :
8474209000
Description

Large Capacity Mining PTY2000 Spring Compound Cone Breaker

Product Basic Parameters

Model: PTY2000-F

Cavity Type: Fine

Max Feed Size: 278mm

Discharge Range: 19-38mm

Production Capacity: 381-726t/h

Spindle Speed: 435rpm

Motor Power: 315kw

Model: PTY2000-M

Cavity Type: Medium-Size

Max Feed Size: 334mm

Discharge Range: 25-51mm

Production Capacity: 608-998t/h

Spindle Speed: 435rpm

Motor Power: 315kw

Model: PTY2000-C

Cavity Type: Thick

Max Feed Size: 369mm

Discharge Range: 31-64mm

Production Capacity: 789-1270t/h

Spindle Speed: 435rpm

Motor Power: 315kw

Model: PTY2000-EC

Cavity Type: Extra Thick

Max Feed Size: 460mm

Discharge Range: 38-64mm

Production Capacity: 880-1361t/h

Spindle Speed: 435rpm

Motor Power: 315kw

Product Basic Parameters Of PYS Serial

Model Diameter
(mm)		 Cavity type Feeder size(in.) Minimum discharge port
(in.)		 Motor Total weight (excluding motor)
(Ton)
Closed side Open side Model Power(KW)
PYS-B0910 3

900		 Fine 3 5/8(83) 4 1/16(102) 3/8(10) Y315S-6 75 9.98
PYS-B0917 Thick 6 3/8(159) 7(175) 1/2(13)
PYS-B0918 Extra thick 6 1/2(163) 7 1/8(178) 1(25)
PYS-D0904 3

900		 Fine 1/2(13) 1 5/8(41) 1/8(3) 10.5
PYS-D0906 Medium-sized 1 5/16(33) 2 3/8(61) 1/8(3)
PYS-D0907 Thick 2(51) 3(76) 1/4(6)
PYS-B1313 4 1/4

1295		 Fine 4 3/8(109) 5 3/8(137) 1/2(13) JS126-6 155 24.2
PYS-B1321 Medium-sized 7 1/2(188) 8 1/4(210) 5/8(16)
PYS-B1324 Thick 8 5/8(216) 9 5/8(241) 3/4(19)
PYS-B1325 Extra thick 9 1/2(238) 10 3/8(259) 1(25)
PYS-D1306 4 1/4

1295		 Fine 1 1/8(29) 2 1/2(64) 1/8(3) 24.6
PYS-D1308 Medium-sized 2 1/8(54) 3 1/2(89) 1/4(6)
PYS-D1310 Thick 2 3/4(70) 4 1/8(105) 3/8(10)
PYS-D1313 Extra thick 3 7/8(98) 5 1/4(133) 5/8(16)
PYS-B1620 5 1/2

1676		 Fine 7 1/2(188) 8 3/8(209) 5/8(16) JS136-6 240 45
PYS-B1624 Medium-sized 8 1/2(213) 9 5/8(241) 7/8(22)
PYS-B1626 Thick 9 5/8(241) 10 3/4(268) 1(25)
PYS-B1636 Extra thick 13 1/4(331) 14 1/2(368) 1 1/2(38)
PYS-D1607 5 1/2

1676		 Fine 1 3/8(35) 2 3/4(268) 3/16(5) 45.6
PYS-D1608 Medium-sized 2 1/8(54) 3 1/2(89) 1/4(6)
PYS-D1613 Thick 3 7/8(98) 5 1/4(133) 3/8(10)
PYS-D1614 Extra thick 4 5/8(117) 6 1/4(158) 1/2(13)
PYS-BC2127 7

2134		 Fine 10 1/8(253) 11 1/8(278) 3/4(19) Y400/Y450-6 400 104
PYS-BC2133 Medium-sized 12 1/8(303) 13 3/8(334) 1(25)
PYS-BC2136 Thick 13 3/8(334) 14 3/4(369) 1 1/4(31)
PYS-BC2146 Extra thick 16 3/8(425) 18 1/8(460) 1 1/2(38)
PYS-DC2110 7

2134		 Fine 2(51) 4 1/8(105) 3/16(5) 105
PYS-DC2113 Medium-sized 3 3/4(95) 5 1/4(132) 3/8(10)
PYS-DC2117 Thick 5(127) 7(178) 1/2(13)
PYS-DC2120 Extra thick 6(152) 8(203) 5/8(16)

Model Open circuit crushing, various sizes of ore discharge crushing output (T / h)
1/8
(3)		 3/16
(5)		 1/4
(6)		 3/8
(10)		 1/2
(13)		 5/8
(16)		 3/4
(19)		 7/8
(22)		 1
(25)		 11/4
(31)		 1/2
(38)		 2
(51)		 21/2
(64)
PYS-B0910 50 65 80 90 100
PYS-B0917 65 80 100 120 130 150 180
PYS-B0918 130 150 180
PYS-D0904 30 45 60 75 100
PYS-D0906 30 45 60 75 100 110
PYS-D0907 65 80 105 125 140
PYS-B1313 120 140 160 170 180 200
PYS-B1321 145 175 190 220 250 280
PYS-B1324 190 215 240 275 325 385
PYS-B1325 260 300 335 395
PYS-D1306 40 65 115 150 180
PYS-D1308 115 150 180
PYS-D1310 120 175 200 220 235 250
PYS-D1313 230 245 260
PYS-B1620 200 225 250 285 325 360
PYS-B1624 285 320 375 420 460
PYS-B1626 330 390 460 500 700
PYS-B1636 475 525 750
PYS-D1607 100 150 180 230
PYS-D1608 150 180 230 280 310
PYS-D1613 210 280 310 340 355 370
PYS-D1614 280 310 340 355 370
PYS-BC2127 600 640 785 970 1140
PYS-BC2133 950 1140 1270 1570
PYS-BC2136 1240 1330 1700 2000
PYS-BC2146 1380 1850 2140
PYS-DC2110 270 380 460 510 570
PYS-DC2113 500 570 630 710
PYS-DC2117 630 670 760 800
PYS-DC2120 720 820 860 910

Features

1.High Production Standard
2.High Crushing Capacity
3.Low Energy Consumption
4.Good Material Type, High Yield
5.Well Sealed For Dust-Proof
6.Flexible And Convenient Adjustment
7.Clear Your Voice Quickly
8.Many Specifications And Models
9.Full Protection

Working Principle
When the Spring Cone Crusher works, driven by the motor, the eccentric sleeve rotates under the combined action of the triangular belt, big belt pulley, transmission shaft, bevel pinion and bevel gear wheel. Then, under the action of the eccentric sleeve, axis starts to rotate, too. During which, the crushing wall would be sometimes close to or sometimes away from the rolling wall. This motion forces materials to be shocked, squeezed and broken continuously in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.

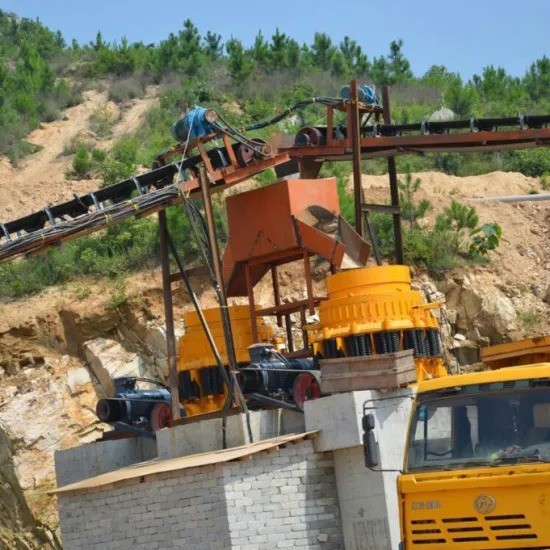

Field Of Application

Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2

Mini Cobble Marble Rock Spring Cone Crusher 2 Ft Symons Cone Crusher 5 1/2
