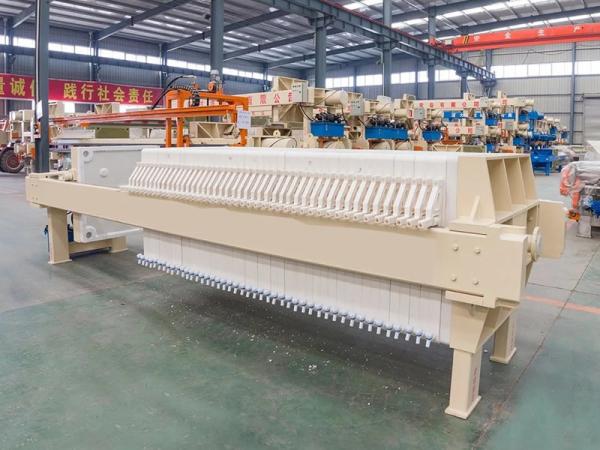

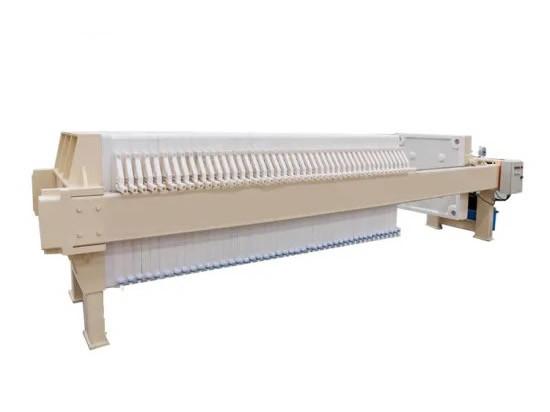

4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding
4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding
4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding
4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding
Specifications
Brand Name :
ZR
Model Number :
ZR
Place of Origin :
Shanghai, China
MOQ :
1 Piece
Price :
Price Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000PCS/Year
Delivery Time :
20-30 days
Packaging Details :
Nude Cargo/Pallet/Wooden Case/Customize
Structure :
Cantilever Beam Type
Filter Material :
Reinforced Polypropylene
Type :
Diaphragm Filter Press
Filter Area :
80M2
Cake Thickness :
30mm
Motor Power :
4kw
Filter Pressure :
0.8Mpa
Method :
Combined Treatment
Usage :
Industrial, Agriculture, Hospital, Construction
Pulling Plate :
Automatic
Centrifuge Installation :
Horizontal
HS Code :
8421291090
Description

ZR80-1000-30U Industrial Sludge Automatic Chamber Pull Plate Filter Press

Technical Parameters

Model: ZR80-1000-30U

Filter area: 80m2

Filter plate size: 1000*1000mm2

Filter cake thickness: 30mm

Single filter room volume: 1219L

Filter plate quantity: 46pcs

Motor power: 4kw

Filter pressure: 0.8Mpa

Technical Parameter Of ZR Serial

Model Filter area
(M2)		 Plate size
(mm)		 Cake
thickness
(mm)		 Room
volume
(L)		 Plate qty
(Pcs)		 Motor
Power
(Kw)		 Filter
pressure
(Mpa)		 Whole
weight
(Kg)		 Outline
dimension
(L*W*H)(mm)		 Foundation size (mm)
L B D H C
ZR10-630-30U 10 700*700 30 154 12 2.2 0.8 1880 1880*1115*1130 1760 400 1115 780 495
ZR15-630-30U 15 226 18 2080 2950*1115*1130 2060
ZR20-630-30U 20 298 24 2280 3250*1115*1130 2360
ZR25-630-30U 25 375 31 2500 3600*1115*1130 2710
ZR30-630-30U 30 452 37 2700 3900*1115*1130 3010
ZR40-630-30U 40 595 49 3100 4500*1115*1130 3610
ZR20-800-30U 20 870*870 307 15 2800 2940*1300*1300 2070 500 1300 865 505
ZR30-800-30U 30 460 23 3100 3380*1300*1300 2510
ZR40-800-30U 40 595 30 3400 3770*1300*1300 2900
ZR50-800-30U 50 748 38 3700 4210*1300*1300 3340
ZR60-800-30U 60 902 46 4100 4630*1300*1300 3760
ZR70-800-30U 70 1056 54 4500 5090*1300*1300 4220
ZR80-800-30U 80 1210 62 5000 5530*1300*1300 4660
ZR50-1000-30U 50 1000*1000 752 28 4 4320 3880*1450*1450 2900 600 1450 940 520
ZR60-1000-30U 60 908 34 4730 4430*1450*1450 3540
ZR70-1000-30U 70 1063 40 5170 4600*1450*1450 3710
ZR80-1000-30U 80 1219 46 5580 4960*1450*1450 4070
ZR100-1000-30U 100 1509 57 6400 5890*1450*1450 4850
ZR120-1000-30U 120 1816 69 7200 6590*1450*1450 5550
ZR100-1250-30U 100 1250*1250 1519 36 5.5 8300 5040*1770*1600 3920 800 1770 980 435
ZR120-1250-30U 120 1806 43 9000 5490*1770*1600 4370
ZR140-150-30U 140 2153 51 9700 6010*1770*1600 4890
ZR160-1250-30U 160 2422 58 10400 6470*1770*1600 5350
ZR180-1250-30U 180 2710 65 11100 6920*1770*1600 5800
ZR200-1250-30U 200 2997 72 11800 7380*1770*1600 6260
ZR220-1250-30U 220 3326 80 12500 7900*1770*1600 6780
ZR250-1250-30U 250 3778 91 14000 8610*1770*1600 7600
ZR200-1500-30U 200 1500*1500 3030 49 0.6 20000 6370*2000*1920 5070 1000 1970 1170 505
ZR250-1500-30U 250 3739 61 22500 7170*2000*1920 5920
ZR300-1500-30U 300 4413 74 25000 8270*2000*1920 6880
ZR350-1500-30U 350 5210 86 27500 9110*2000*1920 7700
ZR400-1500-30U 400 6007 99 30000 10200*2000*1920 8600
ZR450-1500-30U 450 6743 111 33000 10930*2000*1920 9450
ZR500-1500-30U 500 7478 123 36500 11480*2000*1920 10580
ZR600-2000-40U 600 2000*2000 40 12000 83 49000 10615*3000*2500 8980 1200 2600 1500 505
ZR700-2000-40U 700 14000 97 53000 11765*3000*2500 10130
ZR800-2000-40U 800 16000 111 57000 12915*3000*2500 11280
ZR900-2000-40U 900 18000 125 61000 14060*2000*2500 12425
ZR1000-2000-40U 1000 20000 139 65000 15210*2000*2500 13575

Profile

The compression filter press consists of membrane plates (the membrane plate is composed of two polypropylene membranes and a high strength polypropylene core plate with heat capacity) and van filter plates arranged together to form filter chambers. Under the pressure of the feed pump, the slurry is input into the filter chamber. The solid in the slurry is separated from the liquid by the filter cloth. When the solids in the slurry forms a cake, the air is put into the diaphragm, and the solid in the filter chamber is fully pressed. Reduce moisture content. The machine has its unique characteristics especially for the filter of viscous material and users with higher water content requirements.

Features
Adopt low start variable frequency reducer to pull the plate automatically, PLC program control, save time and effort, simple operation and stable performance.

Working Principle Of Chamber Filter Press

4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding​

4kw Membrane Filter Press For Palm Oil Sunflower Coconut Oil Single Chamber Feeding
