3M LONG JAW STROKE POWER CHUCK
3M LONG JAW STROKE POWER CHUCK
Specifications
Brand Name :
NTH
Model Number :
3M-05,3M-06,3M-08,3M-10,3M-12,
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
3M LONG JAW STROKE POWER CHUCK
Material :
Forged steel
Usage :
Gripping/Fixture
Feature :
High precision/High quality
Size :
Refer to the specification
Service :
OEM/ODM is acceptable
Description

3M LONG JAW STROKE POWER CHUCK
Brand:NTH
It‵s a WEDGE-HOOK type 3-jaw power chuck,and extra long jaw stroke.
Matching surfaces of all parts hardened,ground and lubricated directly.
Construction of high rigidity and high clamping accuracy.
3M LONG JAW STROKE POWER CHUCK
Size unit: mm

Spec
Model		 Plunger stroke
mm		 Jaw stroke Dia.
mm		 Max chucking Dia.
mm		 Min chucking Dia.
mm		 Max.D.B.Pull
kgf
3M-05 15 10.9 135 14 9.0(1000)
3M-06 20 14.5 165 14 21.6(2200)
3M-08 23 16.7 210 17 29.4(3000)
3M-10 27 19.6 254 22 39.2(4000)
3M-12 30 21.8 304 26 54(5500)

Spec
Model		 Max clamping force
kgf		 Max RPM I
kg*m2		 Weight
kg		 Matched cylinders Max Pressure
Mpa(kgf)
3M-05 16.4(1670) 4500 0.02 6 SNK-75 2.7(27)
3M-06 36(3680) 4000 0.04 12.2 SNK-100 3.0(30)
3M-08 54.9(5600) 3500 0.13 23 SNK-125 2.9(29)
3M-10 74(7550) 3000 0.3 34.3 SNK-150 2.8(28)
3M-12 99(10100) 2500 0.71 59.4 SNK-150 3.6(36)

Spec

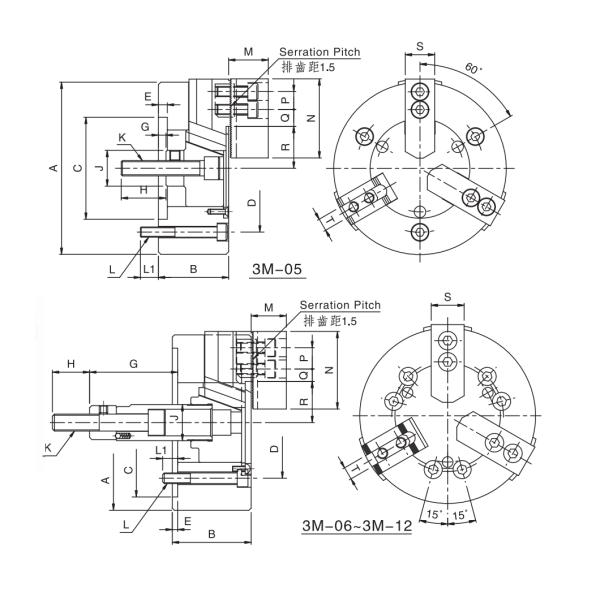

Model		 A B C(H6) D E Gmax Gmin H J
3M-05 135 55 80 100 7 6 -9 35 28
3M-06 165 74 140 104.8 5 101.5 81.5 36 34
3M-08 210 85 170 133.4 5 129 106 36 38
3M-10 254 89 220 171.4 5 160 133 36 45
3M-12 304 106 220 171.4 6 70 40 46 50

Spec
Model		 K L L1 M N P Q max Q min R max R min S T
3M-05 M12×1.75 3-M8 14 31 62 14 17 5.5 32.9 27.45 25 10
3M-06 M16×2 6-M10 14 37 73 20 17.6 7 38.7 31.4 31 12
3M-08 M20×2.5 6-M12 20 38 95 25 22.8 8.8 47.5 39.1 35 14
3M-10 M20×2.5 6-M16 18 43 110 30 33 12.8 53.9 44.1 40 16
3M-12 M24×3 6-M16 18 51 130 30 47.8 13.3 62.5 51.6 50 21

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:

3M Series.pdf
