PBE 3 JAW EXPANSIBLE PULL BACK POWER CHUCK
PBE 3 JAW EXPANSIBLE PULL BACK POWER CHUCK
Specifications
Brand Name :
NTH
Model Number :
PBE-05,PBE-06,PBE-08,PBE-10,,PBE-12
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Certification :
CE
Product name :
3 Jaw Expansible Pull Back Power Chuck with Non-through Hole
Material :
Forged steel
Usage :
Gripping/Fixture
Feature :
High precision/High quality
Size :
Refer to the specification
Service :
OEM/ODM is acceptable
Description

Product Details

Brand:NTH

It's suitable for internal gripping.

Radial clamping and axial pulling down at the same time, to keep the workpiece tightly close to the base surface of the chuck, to avoid workpiece from uplifting.

It's suitable for high accuracy processing.

Production Catalogue Download:PBE SERIES.pdf

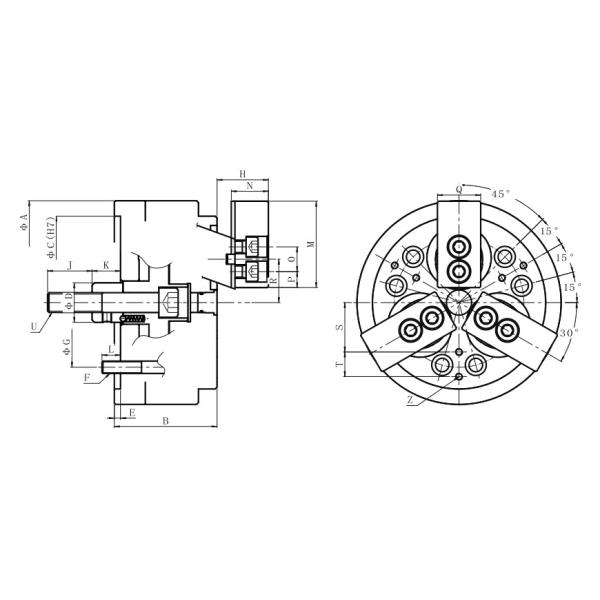

PBE 3 JAW EXPANSIBLE PULL BACK POWER CHUCK

(Size unit: mm)

Model

Plunger

Stroke(mm)

Jaw Stroke

(DIA. mm)

Max. Speed

(/min)

Max. Pull Force

(KN)

Max.Gripping

Force(KN)

Matching

Cylinder

Gripping

Range(mm)

Max.Pressure

(Mpa)

Weight

(kg)
PBE-05 8 5.8 5000 11.7 22.5 S-100R 25-110 2.2 8
PBE-06 8 5.8 5000 14.7 24.5 S-100R 40-140 3.4 13
PBE-08 10 7.2 4500 24.5 44.1 S-125R 48-180 3.5 26
PBE-10 15 10.8 4000 34.3 58.8 S-125R 65-220 3.1 43.5
PBE-12 15 10.8 3500 44.1 73.5 S-150R 80-270 3.1 68

Model

A

(mm)

B

(mm)

C(G7)

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

J

(mm)

K

(mm)

L

(mm)
PBE-05 135 75 110 28 5 3-M10 82.6 28-36 26 14-22 15
PBE-06 165 80 140 32 5 6-M10 104.8 34-42 36 23-31 15
PBE-08 210 95 170 38 5 6-M10 133.4 45-55 36 25-35 15
PBE-10 254 110 220 50 5 6-M10 171.4 50-65 46 32-47 22
PBE-12 304 125 220 50 5 6-M10 171.4 55-70 46 32-47 22

Model

A

(mm)

B

(mm)

C(G7)

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

J

(mm)

K

(mm)

L

(mm)
PBE-05 135 75 110 28 5 3-M10 82.6 28-36 26 14-22 15
PBE-06 165 80 140 32 5 6-M10 104.8 34-42 36 23-31 15
PBE-08 210 95 170 38 5 6-M10 133.4 45-55 36 25-35 15
PBE-10 254 110 220 50 5 6-M10 171.4 50-65 46 32-47 22
PBE-12 304 125 220 50 5 6-M10 171.4 55-70 46 32-47 22

Note: Subject to technology changes without prior information;

Non-standard requirements can be made.
