RTS ROTARY AIR CHUCK FIXTURES
RTS ROTARY AIR CHUCK FIXTURES
Specifications
Brand Name :
NTH
Model Number :
RTS-05,RTS-06,RTS-08,RTS-10,RTS-05T,RTS-06T,
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
RTS ROTARY AIR CHUCK FIXTURES
Material :
Steel
Usage :
Gripping/Fixture
Feature :
High precision/High quality
Size :
Refer to the specification
Service :
OEM/ODM is acceptable
Description

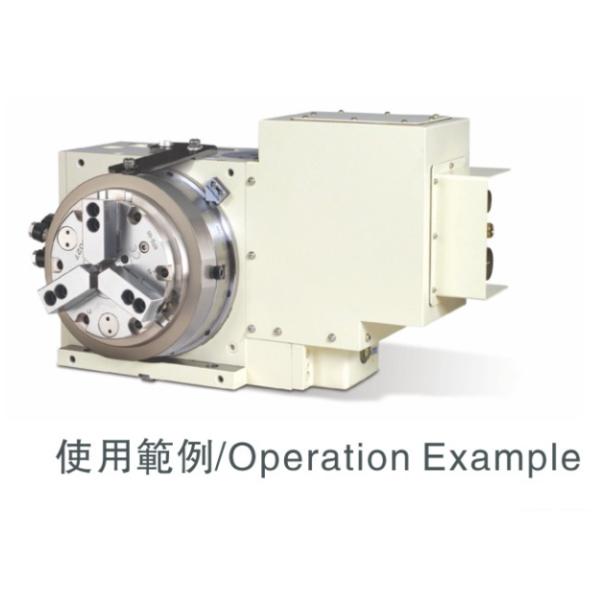

RTS ROTARY AIR CHUCK FIXTURES

Brand:NTH
Dust and water proof cover:
Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
Built in check Valve:
Design with built in Check Valve. It's doesn't need to supply the air continuously and remain low working torque also reduce the air consumption.
Higher Rotation Speed:
The rotation speed from 100RPM to 180RPM, higher rotation speed to fit with more kind of working.
Integral pneumatic cylinder:
Connect chuck and built-in cylinder to each other directly;thus enables operation stability.Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
Rustproof treated cylinder:
The cylinder won’t get rusty and seized even in wet or high moisture working environment.
RTS ROTARY AIR CHUCK FIXTURES


Spec
Model		 Thru hole dia.
mm		 Piston Area
cm2		 Piston stroke
mm		 Jaw stroke Dia.
mm

Weight

Kg
RTS-05 16 74 10 4.6 10
RTS-06 20 120 13 5.5 16.8
RTS-08 30 190 16 6.8 30.6
RTS-10 43 280 19 8 45.1
RTS-05T 16 74 10 4.6 9.7
RTS-06T 20 120 13 5.5 16.3

Spec
Model		 Max RPM Max.Pressure
kgf/cm2(Mpa)		 Gripping Force
At Air Pressure 7kgf/cm2
Kgf(KN)		 Gripping Range
mm
RTS-05 450 7(0.7) 1340(13.1) Ø4-Ø136
RTS-06 350 7(0.7) 2330(22.8) Ø25-Ø166
RTS-08 300 7(0.7) 3730(36.5) Ø33-Ø215
RTS-10 250 7(0.7) 5480(53.7) Ø43-Ø255
RTS-05T 450 7(0.7) 1340(13.1) Ø4-Ø136
RTS-06T 350 7(0.7) 2330(22.8) Ø25-Ø166

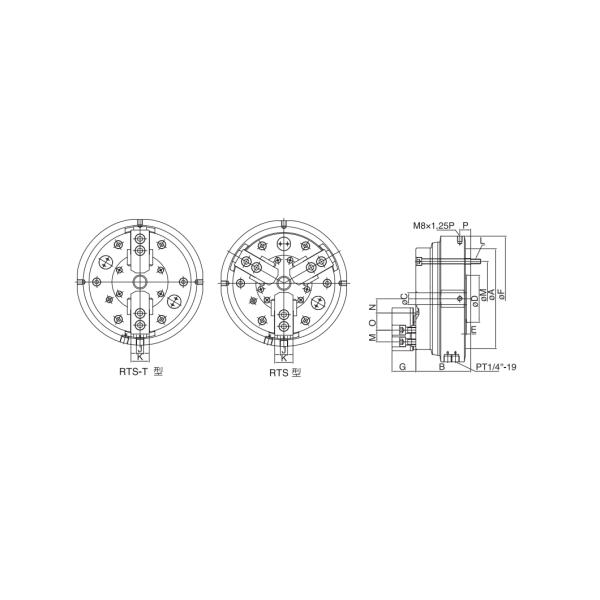

Spec
Model		 A B C D E F G H I
RTS-05 140 85 16 60 6 182 33.6 62 14
RTS-06 170 93 20 80 7 215 40.4 73 20
RTS-08 215 112 30 110 8 255 42.4 95 25
RTS-10 255 120 43 140 8 300 46.4 110 30
RTS-05T 140 85 16 60 6 182 33.6 62 14
RTS-06T 170 93 20 80 7 215 40.4 73 20

Spec
Model		 J K L M P N max N min O mx O min
RTS-05 10 25 6-M8×1.25P PCDØ118 18.5 26.93 24.62 20.05 6.55
RTS-06 12 31 6-M8×1.25P PCDØ147 18.5 36.46 33.69 21.55 15.55
RTS-08 14 35 6-M10×1.5P PCDØ185 19.5 44.92 41.52 29.55 17.55
RTS-10 16 40 6-M10×1.5P PCDØ220 21.5 53.63 49.59 36.55 17.05
RTS-05T 10 25 6-M8×1.25P PCDØ118 18.5 26.93 24.62 20.05 6.55
RTS-06T 12 31 6-M8×1.25P PCDØ147 18.5 36.46 33.69 21.55 15.55

RTS ROTARY AIR CHUCK FIXTURES
Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:
