TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS
TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS
Specifications
Brand Name :
NTH
Model Number :
TKT-06,TKT-07,TKT-09,
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
3 work days
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS
Material :
Cast steel
Usage :
fixture/Gripping
Feature :
High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is accpetable
Description

TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS

TKT 2 JAW POWERFUL TYPE ADJUSTMENT STEEL BODY CHUCKS

Specification UNIT:mm

MODEL/SPEC Max. RPM O.D.Clamping Range
mm		 I.D.Clamping Range
mm		 Weight
kg
TKT-06 4000 Ø9-Ø160 Ø60-Ø150 10.4
TKT-07 3500 Ø10-Ø180 Ø70-Ø170 14.6
TKT-09 2900 Ø12-Ø220 Ø80-Ø210 22.4

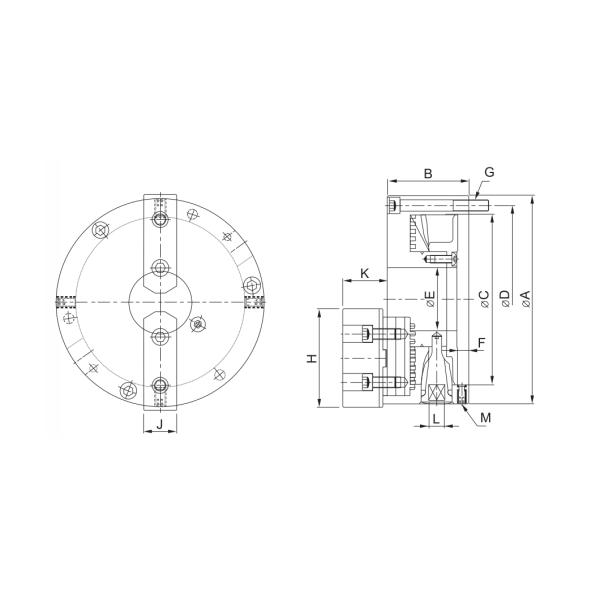

MODEL/SPEC A B C D E F G H J K L M
TKT-06 167 75.5 130 147 45 12 3-M10×1.5P 73 26 40.5 10 4-M10×1.5P
TKT-07 193 85 155 172 58 12 3-M10×1.5P 95 31 49.5 11 4-M10×1.5P
TKT-09 233 92 190 210 70 12.5 3-M12×1.75P 110 37 50 12 4-M10×1.5P

Subject to technology changes without prior information
Non-standard requirements can be made
