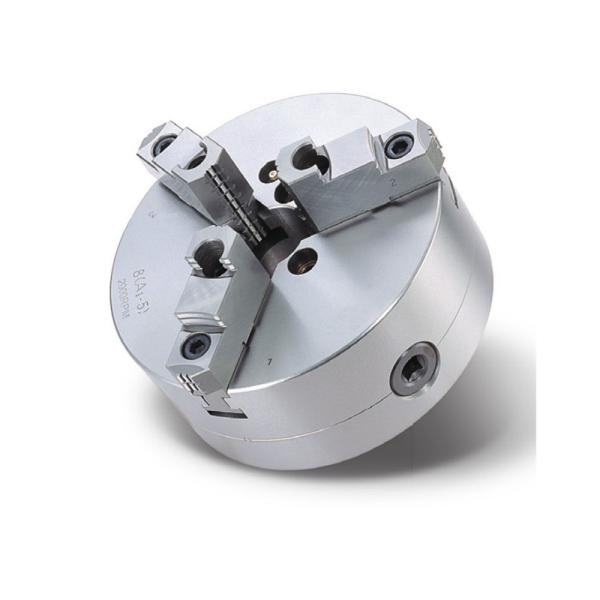

A1 A2 3JAW A1 A2 TYPE CHUCKS
A1 A2 3JAW A1 A2 TYPE CHUCKS
Specifications
Brand Name :
NTH
Model Number :
08",10",20"
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
3 work days
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
A1 A2 3JAW A1 A2 TYPE CHUCKS
Material :
Cast steel
Usage :
fixture/Gripping
Feature :
High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is accpetable
Description

A1 A2 3JAW A1 A2 TYPE CHUCKS

A1 A2 3JAW A1 A2 TYPE CHUCKS

Specification UNIT:mm

MODEL/SPEC Max. RPM O.D.Clamping Range
mm		 I.D.Clamping Range
mm		 Weight
kg
A 1 5-08" 2000 Ø8-Ø180 Ø62-Ø170 17.4
A 1 6-08" 2000 Ø8-Ø180 Ø62-Ø170 18
A 1 6-10" 1800 Ø11-Ø240 Ø70-Ø230 30.6
A 2 11-20" 1000 Ø25-Ø480 Ø125-Ø460 161.5

MODEL/SPEC A B C D E F G H J K L P M N
A 1 5-08" 200 83 33.5 61.9 40 Ø104.8 3-M10x1.5P 82 82.563 28 43 11 Ø16.3 6.8
A 1 6-08" 200 83 33.5 82.6 56 Ø133.4 3-M12x1.75P 82 106.375 28 43 11 Ø19.3 6.8
A 1 6-10" 255 91.5 36.5 82.6 56 Ø133.4 3-M12x1.75P 93 106.375 32 50 12 Ø19.3 6.8
A 2 11-20" 500 135 40 235 190.5 Ø235 6-M20x2.5P 140 196.869 55 84 19 Ø29.4 10.7

Subject to technology changes without prior information
Non-standard requirements can be made
