MS Non through-hole rotary hydraulic cylinder(valve included)
MS Non through-hole rotary hydraulic cylinder(valve included)
Specifications
Brand Name :
NTH Cooperated Brand
Model Number :
MS105,MS125,MS150,MS200,
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T, Western Union
Supply Ability :
1000 set/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Certification :
CE
Product name :
Non through-hole rotary hydraulic cylinder(valve included)
Usage :
Driving chucks working
Feature :
Light/High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is available
Description

Non through-hole rotary hydraulic cylinder(valve included)

Built-in safty check valves.

MS Non through-hole rotary hydraulic cylinder(valve included)

UNIT : mm

SPEC
Model		 Piston Area
(cm2)
Push Side / Pull Side		 Max. Draw Bar Force
KN(kgf)
Pull Side		 Piston
Stroke
(mm)		 Max.Operating
Pressure MPa
(kgf / cm2)		 Max.Speed
(r.p.m.)		 Moment
Of Inertia
I
(kg‧m2 )		 Weight
(kg)		 Total
Leakage
L/min
MS105 86 / 79 29(2957) 20 4.0(40.8) 6000 0.0125 7.1 0.8
MS125 122 / 113 42(4283) 25 4.0(40.8) 6000 0.0225 10 0.8
MS150 176 / 160 60(6118) 30 4.0(40.8) 5500 0.0475 13.5 0.8
MS200 314 / 290 108(11013) 35 4.0(40.8) 5500 0.0975 22 0.8

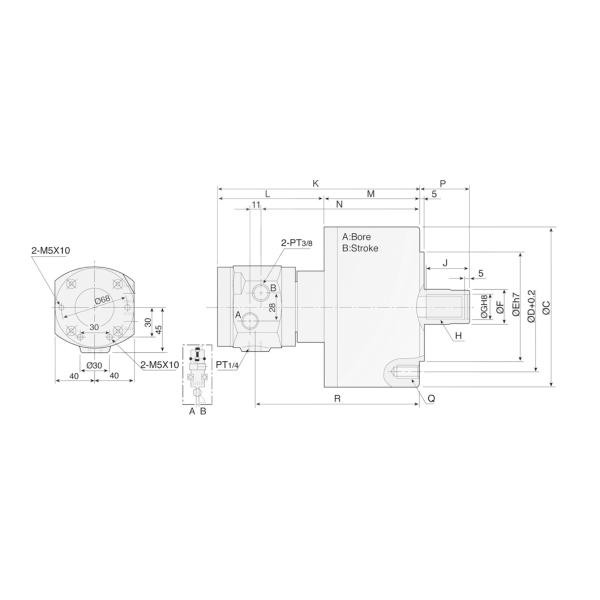

DIM
Model		 A B C D E F G H
MS105 105 20 135 100 80 30 21 M20xP2.5
MS125 125 25 160 130 110 35 25 M24xP3.0
MS150 150 30 190 130 110 45 31 M30xP3.5
MS200 200 35 245 145 120 55 37 M36xP4.0

DIM
Model		 J K L M N Pmax. Pmin. Q R
MS105 35 197 108 89 152 45 25 6-M10x20 158
MS125 44 205 108 97 160 51 26 6-M12x24 166
MS150 45 214 108 106 169 56 26 12-M12x24 175
MS200 60 228 108 122 183 69 34 12-M16x30 189
