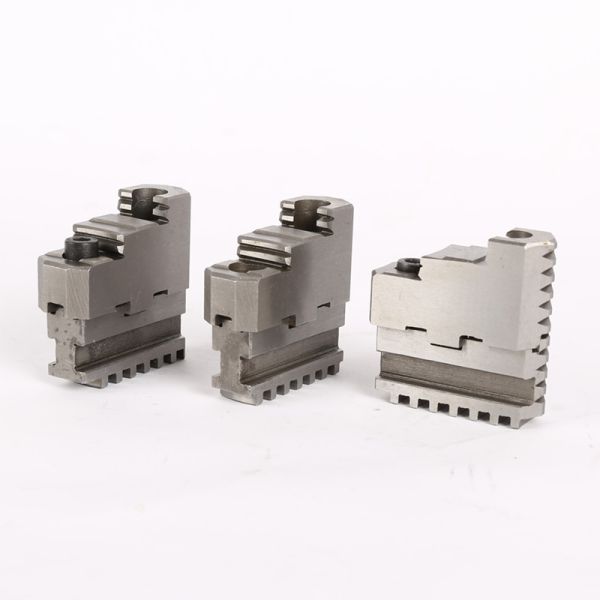

HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
Specifications
Brand Name :
OMATEI
Model Number :
160,200,250
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
Material :
45#Steel
Funcition :
Clamping
Feature :
High quality /High precision
Size :
Refer to the specification
Service :
ODM/OEM is available
Description

HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

Description
Hard jaws include one-piece jaws and two-piece jaws for formA,D,C.
All kinds of hard jaws can be provided as the request of customers.

HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
Two-Piece Jaws for FormA

Size 160 200 250 315 325 380 400 500 630
L 67 80 95 108 108 130 130 130 132 132
B 25 30 36 45 45 45 45 45 45 54
H 41 45 53 61 61 70 70 70 82 82
h 9 10.5 13.5 17.5 17.5 17 17 17 22 22
a 12.675 12.675 19.025 19.025 19.025 19.025 19.025 19.025 19.025 19.025
b 7.94 7.94 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
e 19 22.2 27 31.75 31.75 38.1 38.1 38.1 38.1 38.1
t 3 3 3 3 3 6 6 6 6 6
t1 4 4 4 4 4 4 4 4 4 4
z-d 2-11 2-11 2-13 2-13 2-13 2-15 2-18 2-18 2-22 2-22

Two-Piece Jaws for FormD

Size
 160 200 250 315 325 325 380 400 500 630
L 64 80 98 110 110 114 114 114 152 210
L1 29 34.9 39.7 47.6 47.6 47.5 47.5 47.5 47.4 59
B 20 22 27 36 36 36 36 36 45 50
H 33 35 38 42 42 46 46 46 55 60
a 12.675 12.675 19.025 19.025 19.025 19.025 19.025 19.025 19.025 19.025
b 7.94 7.94 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
e 19 22.2 27 31.72 31.75 38.1 38.1 38.1 38.1 38.1
t 4 4.2 4.2 4.2 4.2 7 7 7 7 7
t1 3 3 3 3 3 3 3 3 3 3
z-d 2-M10 2-M10 2-M12 3-M12 3-M12 3-M16 3-M16 3-M16 4-M20 5-M20
The jaws are composed of top jaws and master jaws.Master jaws for form A size 325.380 and form D without clamping arc.

Subject to technical changes
