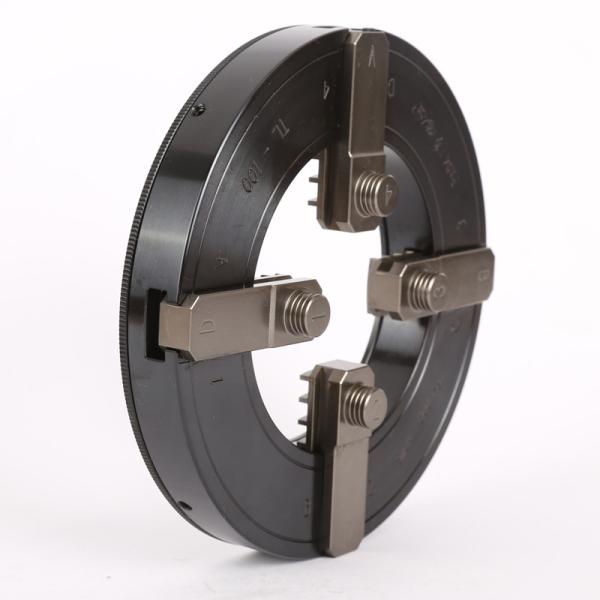

JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
Specifications
Brand Name :
NTH
Model Number :
TL-100,TL-125,TL-160
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 workdays
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
Material :
Alloy steel
Usage :
adjusting the high accuracy of chuck during machining process.
Feature :
High quality /High precision/Fine adjusting
Size :
Refer to the specification
Service :
ODM/OEM is available
Description

JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE

FEATURE

To Suit for CNC lathe

This type jaw boring fixture with a continuous fine adjusting ring can provide accurate position, to reduce the abrasion of soft jaws.Soft jaws can be made to requirements size by this fixture easily. Only several simple process, soft jaws can be bored precisely.With anticlockwise lock, the machining field can be easily expended.

JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE

SPECIF ICATIONS UNIT :mm

Spec/Model

 A B C D E F G

Jaw Stroke

(Dia)

Max Gripping

(Kgf)

Max RPM

Weight

( Kg )

Matching

Chuck

TL-100

(TLF-100)

 100 170 26 13 7 19 61 7.4 1500 800 2.7 5"/6"/8"

TL-125

(TLF-125)

 125 200 26 16.3 8 19 61 7.4 1500 700 3.5 6"/8"/10"

TL-160

(TLF-160)

 160 248 31 18.3 8 24 80 8.5 1750 600 5.6 8"/10"/12"

*TL : 3 jaw model

*TLF : 4 jaw model

Subject to technical changes
