HK Shorp Type Hydraulic Rotary Cylinder Through Hole Stable Performance
HK Shorp Type Hydraulic Rotary Cylinder Through Hole Stable Performance
Specifications
Brand Name :
NTH
Model Number :
HK-2091,HK-2511,HK-2114,
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
HK SHORP TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE
Usage :
Driving chucks working
Feature :
Light/High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is available
Description

HK SHORT TYPE ROTATING HYDRAULIC CYLINDER WITH THROUGH-HOLE AND SAFETY DEVICE

Brand:NTH

Super short form.light weight large Through-Hole,justas 2/3 of typical model length.
Built-in safety check valves and pressure relief valves.
Forward and backward choose a fixed installation.

HK Shorp Type Hydraulic Rotary Cylinder Through Hole Stable Performance

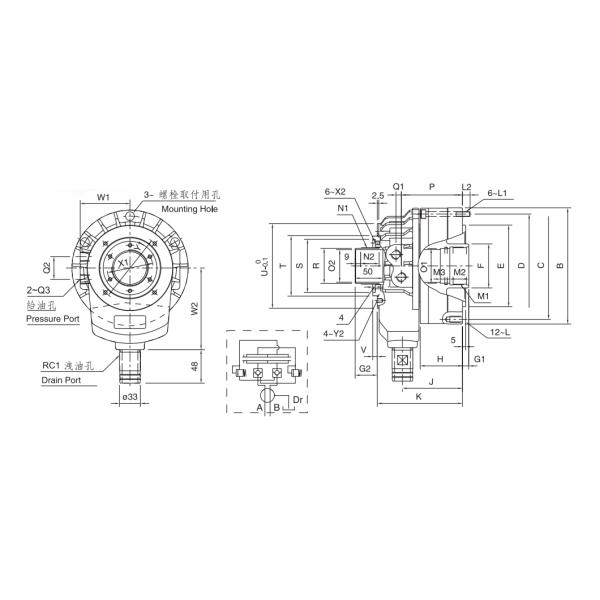

Size unit: mm

Spec
Model		 Piston area cm2
Extend		 Piston area cm2
Retract

Piston

stroke

Max

RPM

 Max.Operating Pressure
Mpa(kgf/cm2)		 I

Kg*m2

Weight

kg

Total Leakage

L/min
HK-2091 234 217.5 30 3800 4.0(40) 0.092 24.8 4.5
HK-2511 356.5 335.3 30 3000 3.5(35) 0.38 49.5 7
HK-2114 373.2 336.1 35 2500 3.5(35) 0.54 58.2 8

Spec
Model
 A(Id) B C D Eh7 F

G1

Max

G1

Min

G2

Max

G2

Min

H J K L L1 L2 M1 M2 M3
HK-2091 200 245 215 225 180 110 30 0 55 25 87 127 185 M12×24 M10×95 18.5 M100×2 35 15
HK-2511 250 305 275 280 230 140 30 0 55 25 100 154 224 M16×32 M12×110 22.5 M130×2 35 15
HK-2114 265 320 295 295 240 165 35 0 60 25 115 173.5 247.5 M16×32 M12×120 17.5 M155×2 45 20

Spec
Model
 N1 N2 O1 H8 O2 H8 P Q1 Q2 Q3 R G7 S H7 T U V W1 W2 X1 X2 Y1 Y2
HK-2091 M100×2.0 38 95 91 128.5 15 45 RC1/2 96 120 138 180 7 110 185 108 M6×10 165 M6×10
HK-2511 M130×2.0 38 125 120 152 17 50 RC1/2 126 150 170 227 7 134 210 138 M6×10 210 M6×10
HK-2114 M150×2.0 38 145 140 170 17 50 RC1/2 146 170 190 250 7 145 210 160 M6×10 230 M6×10

Subject to technology changes without prior information

Non-standard requirements can be made
