B-206A5 High Rotary Speed Through Hole Power Chuck 3 Jaw
B-206A5 High Rotary Speed Through Hole Power Chuck 3 Jaw
Specifications
Brand Name :
NTH
Model Number :
B-206A5
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Product name :
B-206A5 3 JAW HIGH ROTARY SPEED THROUGH HOLE POWER CHUCK
Material :
Forged steel
Usage :
Gripping/Fixture
Feature :
High precision/High quality
Guarantee :
12 months
Service :
OEM/ODM is acceptable
Description

Brand:NTH

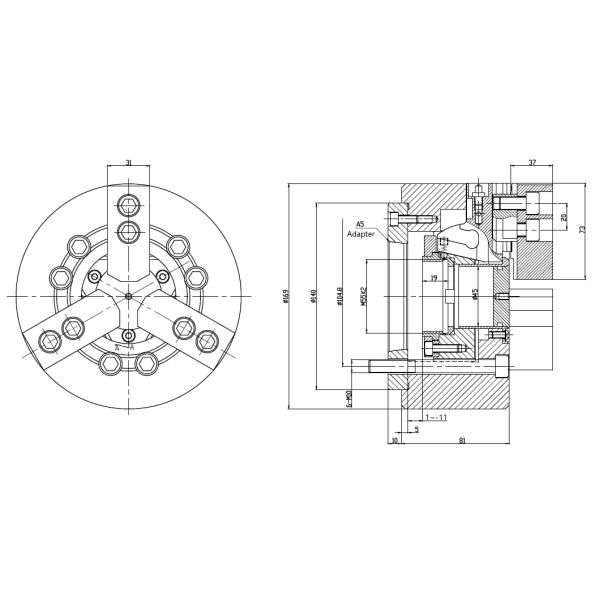

B-206A5 is WEDGE-HOOK type 3 jaw power chuck with the large through-hole .

it's suitable for A2-5 spindle nose of lathe machine

the through hole size is 45mm

B-206A5 High Rotary Speed Through Hole Power Chuck 3 Jaw

Spec
Model		 Plunger stroke
mm		 Jaw stroke Dia.
mm		 Max chucking Dia.
mm		 Min chucking Dia.
mm

Max.D.B.Pull

kgf
B-206 A5 12 5.5 169 15 2200

Spec
Model		 Max clamping force
kgf		 Max RPM I
kg*m2		 Weight(Ad.)
kg

Matched

cylinders
B-206 A5 5800 6000 0.06 13.7 H-1246

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:

B Series.pdf
