350cd/M2 8 Bit Touch Tft Lcd -20 ~ 70 Degree 12.1 Lcd Panel M121GNX2 R1
350cd/M2 8 Bit Touch Tft Lcd -20 ~ 70 Degree 12.1 Lcd Panel M121GNX2 R1

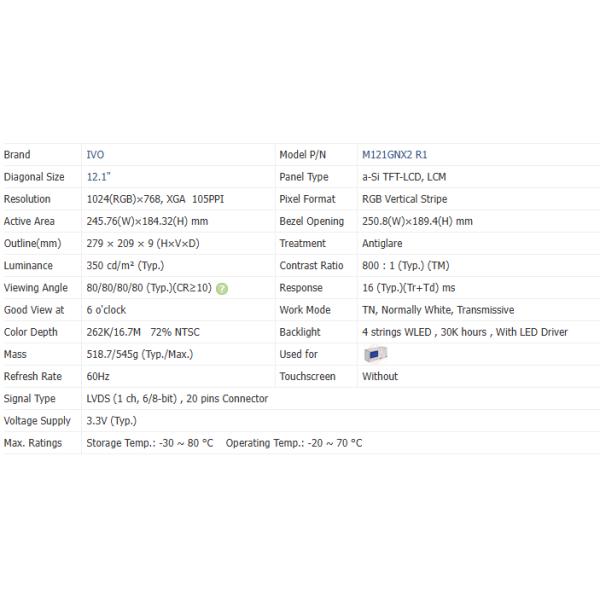

Specifications
Model Number :
M121GNX2 R1
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-8 working days
Packaging Details :
original factory packing
Size :
12.1inch
Resolution :
1024(RGB)×768, XGA
Luminance :
350 cd/m² (Typ.)
Viewing Angle :
80/80/80/80 (Typ.)(CR≥10)
Interface Type :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Operating Temperature: :
-20 ~ 70 °C
Storage Temperature: :
-30 ~ 80 °C
Backlight Life :
30K hours
Application :
Industry Application
Description

12.1Inch Resolution1024(RGB)×768, Luminance 350 cd/m² Operating Temperature: -20 ~ 70 °C LVDS Lcd Panel M121GNX2 R1

M121GNX2 R1 is a 12.1" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial etc.
