19Inch High Nit Monitor 1280×1024 SXGA 1600cd/M2 Lcd Panel G190ETN01.601
19Inch High Nit Monitor 1280×1024 SXGA 1600cd/M2 Lcd Panel G190ETN01.601

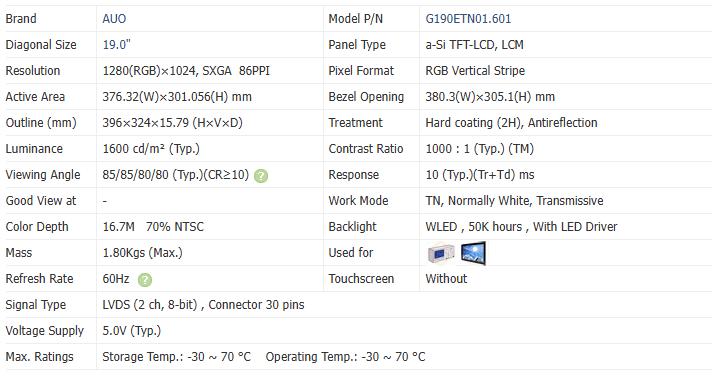

Specifications
Model Number :
G190ETN01.601
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-8 working days
Packaging Details :
original factory packing
Size :
19inch
Resolution :
1280(RGB)×1024, SXGA
Luminance :
1600 cd/m² (Typ.)
Viewing Angle :
85/85/80/80 (Typ.)(CR≥10)
Interface Type :
LVDS (2 ch, 8-bit) , Connector 30 pins
Treatment :
Antiglare
Operating Temperature: :
-30 ~ 70 °C
Storage Temperature: :
-30 ~ 70 °C
Application :
Industry Application
Description

19Inch Resolution1280(RGB)×1024, SXGA Luminance 1600 cd/m² Operating Temp.: -30 ~ 70 °C Lcd Panel G190ETN01.601

G190ETN01.601 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness etc
