12.1Inch High Brightness Display 1000cd/M2 -30 ~ 85 °C Lcd LVDS Screen G121XCE-LM1
12.1Inch High Brightness Display 1000cd/M2 -30 ~ 85 °C Lcd LVDS Screen G121XCE-LM1

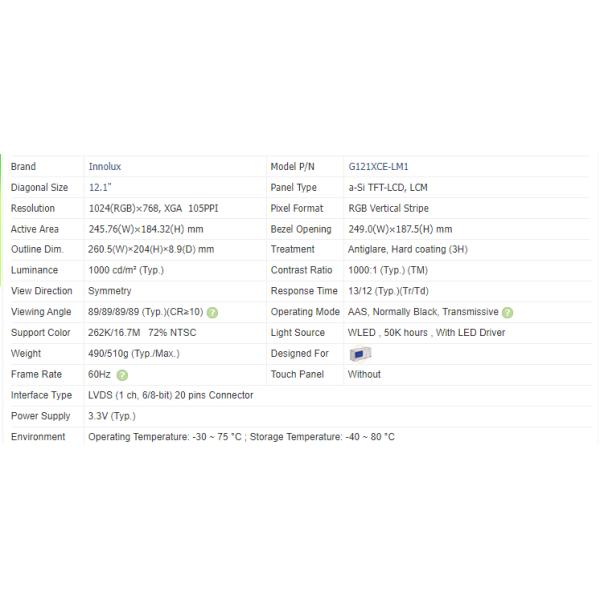

Specifications
Model Number :
G121XCE-LM1
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-8 working days
Packaging Details :
original factory packing
Size :
12.1inch
Resolution :
1024(RGB)×768, XGA
Luminance :
1000 cd/m² (Typ.)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Interface Type :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Operating Temperature: :
-30 ~ 75 °C
Storage Temperature: :
-40 ~ 80 °C
Backlight Life :
50K hours
Application :
Industry Application
Description

12.1Inch Resolution1024(RGB)×768, XGA Luminance1000 cd/m² Operating Temperature: -30 ~ 85 °C LVDS Lcd Panel G121XCE-LM1

G121XCE-LM1 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 75°C , a storage temperature range of -40 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial etc.
