1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd
1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd
1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd
1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd
Specifications
Model Number :
P1040XGF1MA00
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
3-5 working days
Packaging Details :
factory original packing
Size :
10.4inch
Resolution :
1024(RGB)×768, XGA
Luminance :
1300 cd/m² (Typ.)
Viewing Angle :
88/88/88/88 (Typ.)(CR≥10)
Signal Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Operating Temp.: :
-30 ~ 80 °C
Storage Temp :
-40 ~ 85 °C
Vibration Level: :
6.8G (66.64 m/s²)
Application :
Industry and vehicle
Description

10.4Inch 1024(RGB)×768, XGA , 1300Nits brightness Lcd Panel P1040XGF1MA00 high vibration level for Industrial use

The P1040XGF1MA00 (Alias: TM104TDGP13-00) is a 10.4 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 6.8G (66.64 m/s²). It's general features are summarized in the following: Wide Temperature, 6.8G Vibration, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Rugged Industry, Outdoor High Brightness etc.

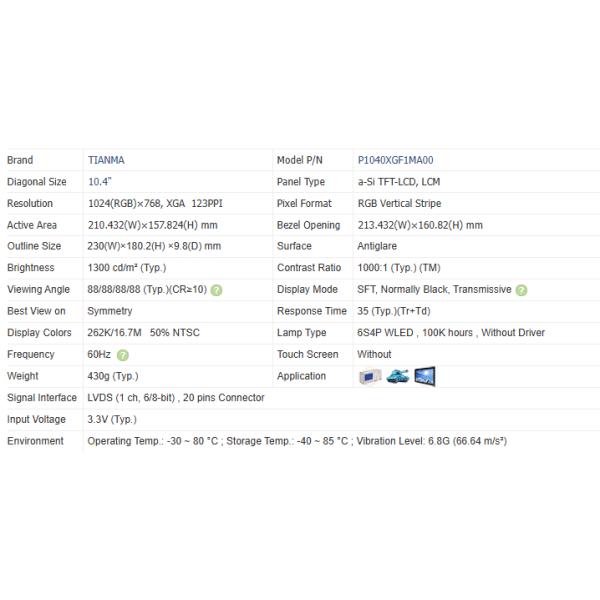

Brand
TIANMA
Model P/N
P1040XGF1MA00
Diagonal Size
10.4"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA 123PPI
Pixel Format
RGB Vertical Stripe
Active Area
210.432(W)×157.824(H) mm
Bezel Opening
213.432(W)×160.82(H) mm
Outline Size 230(W)×180.2(H)×9.8(D) mm Treatment Antiglare
Luminance 1300 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) 1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd Response 35 (Typ.)(Tr+Td) ms
Good View at Symmetry Work Mode SFT, Normally Black, Transmissive 1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd
Color Depth 262K/16.7M 50% NTSC Backlight 6S4P WLED , 100K hours , No Driver
Mass 430g (Typ.) Used for
Refresh Rate 60Hz 1300Nits 1024 X 768 High Brightness Lcd Panel P1040XGF1MA00 High Vibration Touch Tft Lcd Touchscreen Without
Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²)
