XGA 12.1In 1024×768 High Brightness Lcd Screen 800Nits P1210XGF1MA01 LVDS Interface
XGA 12.1In 1024×768 High Brightness Lcd Screen 800Nits P1210XGF1MA01 LVDS Interface
Specifications
Model Number :
P1210XGF1MA01
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
3-5 working days
Packaging Details :
factory original packing
Size :
12.1inch
Resolution :
1024(RGB)×768, XGA
Luminance :
800 cd/m² (Typ.)
Viewing Angle :
88/88/88/88 (Typ.)(CR≥10)
Signal Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Operating Temp.: :
-30 ~ 80 °C
Storage Temp :
-40 ~ 90 °C
Vibration Level: :
2.0G (19.6 m/s²)
Application :
Industry and vehicle
Description

12.1Inch 1024(RGB)×768, XGA , 800Nits brightness Lcd Panel P1210XGF1MA01 LVDS Interface for Industrial use

The P1210XGF1MA01 (Alias: TM121TDGP02-00) is a 12.1 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: sRGB, Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness, Automotive Display etc.

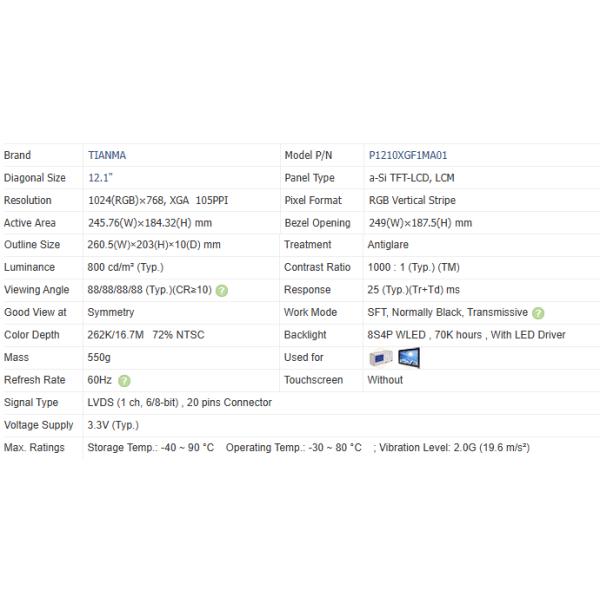

Brand
TIANMA
Model P/N
P1210XGF1MA01
Diagonal Size
12.1"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA 105PPI
Pixel Format
RGB Vertical Stripe
Active Area
245.76(W)×184.32(H) mm
Bezel Opening
249(W)×187.5(H) mm
Outline(mm)
Luminance
Viewing Angle
Good View at
Color Depth
Mass
Refresh Rate
260.5(W)×203(H)×10(D)
800 (Typ.)(cd/m²)
88/88/88/88 (Typ.)(CR≥10) XGA 12.1In 1024×768 High Brightness Lcd Screen 800Nits P1210XGF1MA01 LVDS Interface
Symmetry
262K/16.7M 72% NTSC
550g (Typ.)
60Hz XGA 12.1In 1024×768 High Brightness Lcd Screen 800Nits P1210XGF1MA01 LVDS Interface
Treatment
Contrast Ratio
Work Mode
Response
Backlight
Used for
Touchscreen
Antiglare
1000 : 1 (Typ.) (TM)
SFT, Normally Black, Transmissive XGA 12.1In 1024×768 High Brightness Lcd Screen 800Nits P1210XGF1MA01 LVDS Interface
25 (Typ.)(Tr+Td) ms
7S4P WLED , 100K hours , No Driver
Without
Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
