Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Transformer Curing Furnace For Epoxy Resin Preheating Predrying
Specifications
Brand Name :
JC
Model Number :
8219
Certification :
SGS，CE,UL
Place of Origin :
China
MOQ :
1 pcs
Price :
consult
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/month
Delivery Time :
5 days
Packaging Details :
Export standard packaging
Automatic Grade :
Automatic
Driven Type :
Electric
Transport Package :
Wooden
Production Capacity :
60000PCS/Year
Specification :
300*300*300
Installation :
Vertical
Description

Elecric Insulation Transformer Curing Furnace for The Curing of Transformer’ S Epoxy Resin and The Preheating (predrying

Basic Info.

Model NO.
C003
Automatic Grade
Automatic
Installation
Vertical
Driven Type
Electric
Mould Life
300,000-1,000,000 Shots
Transport Package
Wooden
Specification
300*300*300
Trademark
CR
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year

Product Description

Transformer Curing Furnace For Epoxy Resin Preheating Predrying

Brief introduction

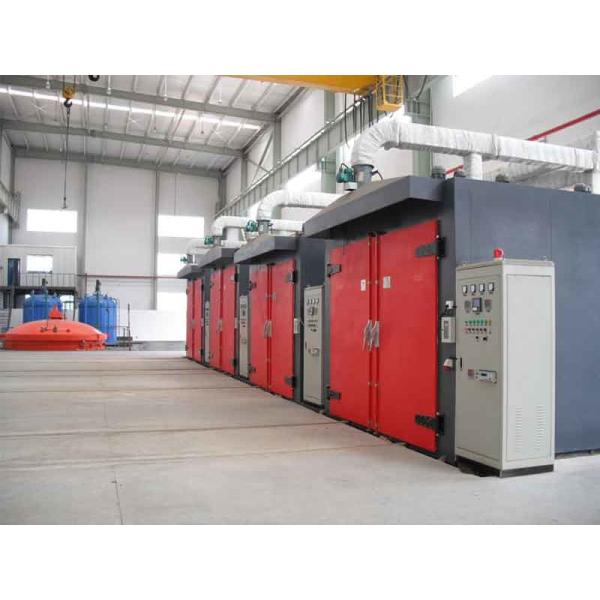

HG series transformer/insulation parts curing furnace is suitable for the curing of transformer's epoxy resin and the preheating (predrying) of coil and mould.
This series of products can be designed as two or more sets of connected structure, compact and beautiful. The machine is excellent in its temperature uniformity and has a unique hot air circulation mode, which can be applied to different process of transformer curing.

performance
  1. A proper hot-air circulation mode can be chosen according to the product layout to make the temperature in the furnace more uniform and the curing (drying) effect more remarkable;
  2. With advanced electrical control, intelligent program temperature controller, PID parameters self-tuning, any curing curve can be set up according to different processes, Operation is simple and you can rely on its performance.
  3. High quality thermal insulated aluminum silicate cotton with low thermal conductivity and unique heat preservation cotton filling method ensure the insulation performance of the curing furnace and help achieve the purpose of energy saving;
  4. The computer management software of several curing furnaces can properly monitor and manage the practical application on site, so as to further achieve energy saving and improve production efficiency.
Main technical parameters of HG Series transformer curing oven
Parameter HG-1 HG-2 HG-3 HG-4 HG-5
Dimension of working chamber(width×depth×height) mm 550×450×550 850×800×1000 1500×1000×1500 1900×800×1500 1700×1800×2000
Operating temperature(ºC) Indoor temperature-200 Indoor temperature-200 Indoor temperature-200 Indoor temperature-200 Indoor temperature-200
Operating voltage/ frequency(V/ Hz) 3-380/50 3-380/50 3-380/50 3-380/50 3-380/50
Heating power(kw) 4 10.5 18 21 36
Temperature uniformity(%) ±2.5 ±2.5 ±2.5 ±2.5 ±2.5
Temperature fluctuation(ºC) ±1 ±1 ±1 ±1 ±1
Note: Non-standard product can be designed and manufactured in accordance with the requirement of the user.
